Master Lock D1000 - Page 6

Preparation
3
Press the button on the top of the
battery cover and pull it out.
Top View of Battery Cover
3
Remove the battery cover from the Smart lock

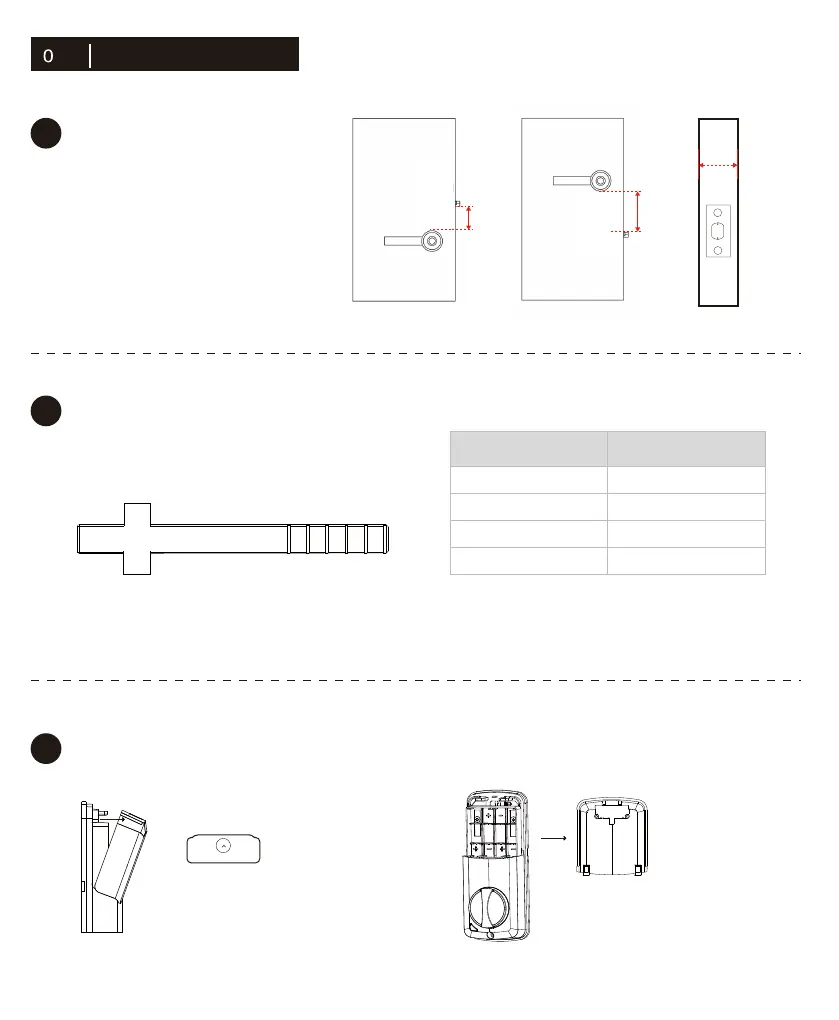

Check Points
1. Confirm the distance of the door handle
either above or below the deadbolt.
2. Confirm the door thickness.
>50mm
1 2
>170mm
35mm
~60mm
1
Door thickness & Tail piece length
Please adjust the length of tail piece based on the door
thickness.
For example:
Please cut 1 parts of slice
on the tailpiece with tool if the door thickness is between 50mm~59mm.
Door Thickness (mm) Tail piece (slice)
40-49 2
30-39 3
50-59 1
>60 0
30 40 50 60
2
