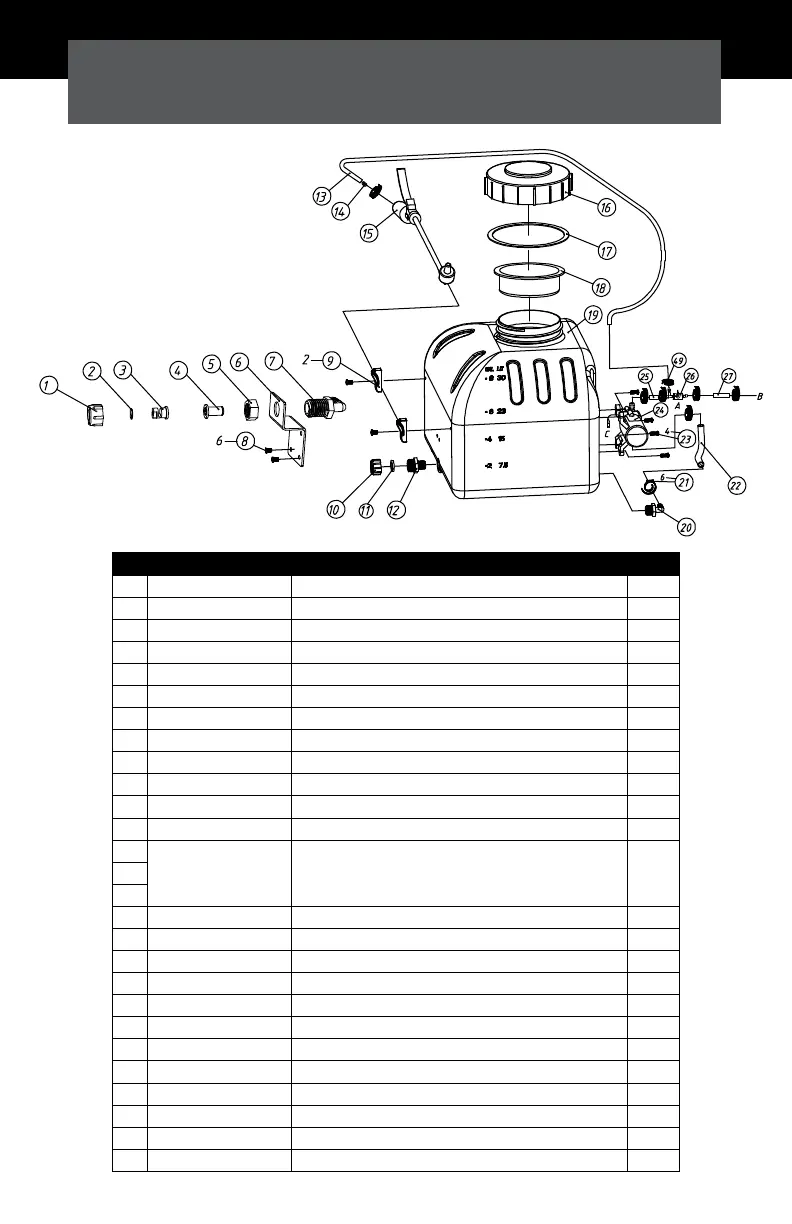

BREAKDOWN - TANK ASSEMBLY
ID PART # DESCRIPTION QTY
1 8027 Nozzle Nut - 11/16" 1
2 D77012 O-Ring - NBR 1
3 DF3.0 Gray Deflector Nozzle 1
4 NS-50 Nozzle Strainer 1
5 B12 Nozzle Body Nut - 11/16" 1
6 31-100249 Nozzle Bracket 1
7 E3412 Adapter - 3/4" MGHT x 1/2" NPT 1
8 33-100137 Groove Screw - 1/2" 6
9 GC-100-KIT Spray Gun Clips 1
10 3N34 Garden Hose Cap - 3/4" FGHT 1
11 33-103220 Gasket - 3/4" 1
12 EL1238 Drain Port 1
13
SG-4200-MG Spray Gun Assembly 1 14
15
16 TL-6B Tank Lid 1
17 TL-6B-GAS Tank Lid O-Ring 1
18 TLS-5D Tank Lid Strainer 1
19 33-103197 9 Gallon Tank 1
20 EL1238 Elbow - 11/16" MPS x 3/8" HB 1
21 350-004 Worm Gear Hose Clamps 6
22 33-103938 Braided Hose - 3/8" 1
23 33-103126 Screws - 5/8" 4
24 EF1000 Everflo 1.0GPM Pump 1
25 33-103938 Braided Hose - 3/8" 1
26 PBV-38HB Hose Barb Valve - 3/8" 1
27 33-103938 Braided Hose - 3/8" 1
To Next Page
