48DO NOT DIVE.

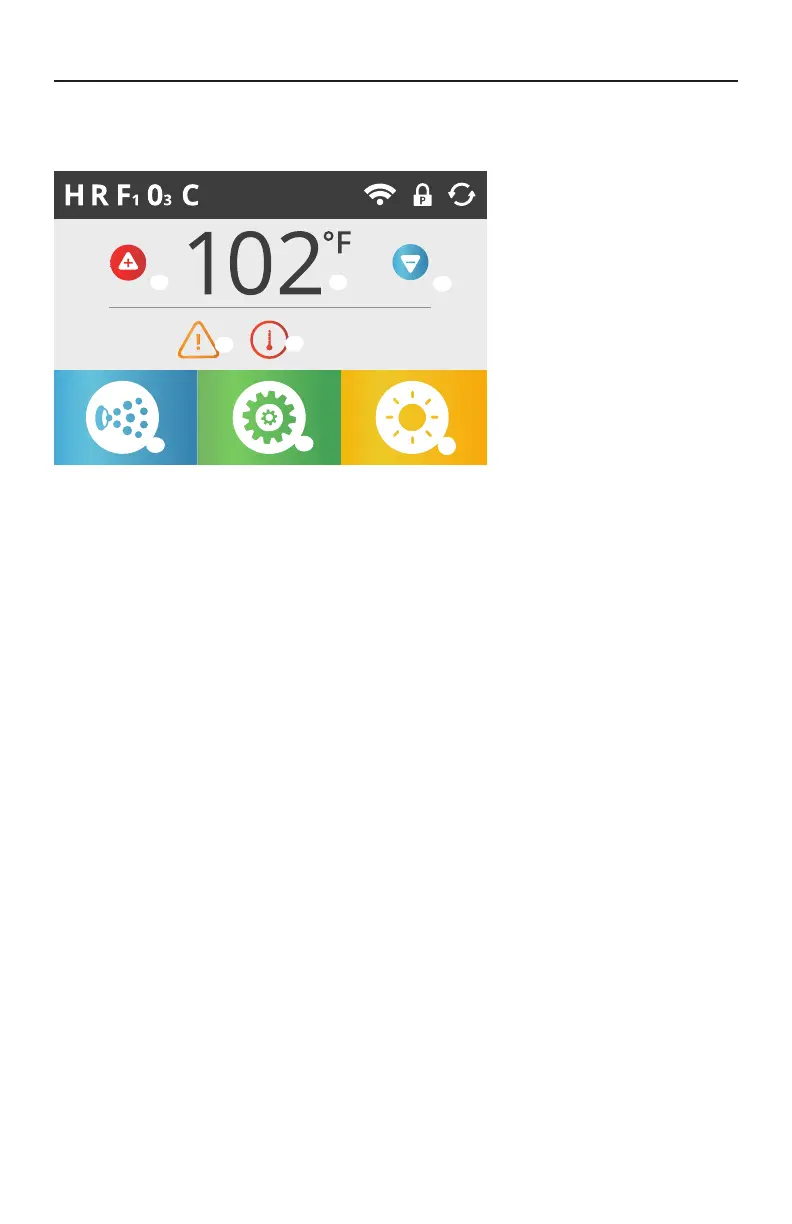

ICON SPECIFICATIONS
H = High Temperature Range
R = Ready Mode
F
1
= Filter Cycle 1 Running
O
3
= Ozone Running
C = Cleanup Cycle
Wi-Fi Indicator
Lock Indicator Icon
Invert Screen
Set Temperature Up
Current Water Temperature
Temperature Scale (F/C)
Set Temperature Down
Message Waiting Indicator
Heat Indicator
Swim Spa Equipment Control Icon
Settings Icon
Light Icon = Turns On/Off
5:29 pm
SWIM SPA STATUS
Important information about swim spa operation can be seen on the Main Screen. Various features
and main menus can be accessed from this screen. The actual water temperature can be seen and
the Set Temperature can be adjusted. Time-of-Day, Ozone and Filter Cycle status is visible, along
with other messages and alerts. The selected Temperature Range is indicated in the upper left
corner. The Swim Spa Equipment Control Icon in the bottom left corner will bubble if any pump is
running. A Lock icon is visible if the panel or settings are locked.
NOTE: After 30 minutes the display will automatically go into sleep mode, which turns the display
off. This is normal operation. Touch anywhere on the screen to wake the control panel up.
SWIM SPA CONTROLS - ICON SPA TOUCH
THE MAIN SCREEN
