8. ACCESS PANELS
These are located on all four sides of the swim spa. All of the panels are removable should service
be required.
12
DO NOT DIVE.

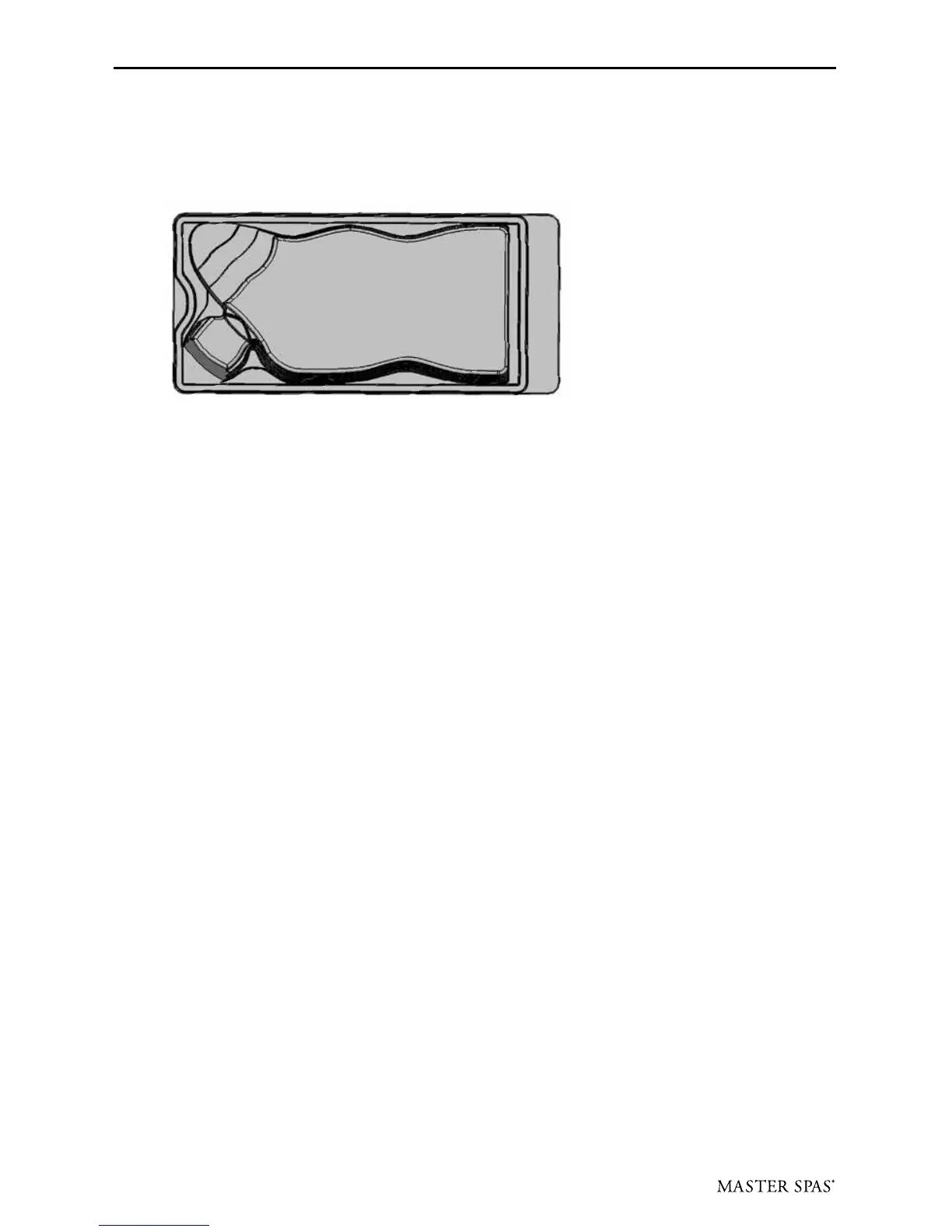

NOTE: Note: The above drawing illustrates the panel placement on the swim spa.
WARNING: Do Not Remove Access Panels Without Turning Off Power To The Swim Spa.
9. DRAINING YOUR SWIM SPA
Due to the physical size of the swim spa, we recommend draining your swim spa with a
submersable sump pump. Draining your swim spa with a conventional swim spa drain is not a
reasonable option.
10. WEIR GATE
The weir gate is the horizontal door located in front of the filters that trap debris in the filter area.
11. SWIM SPA LIGHT
Your swim spa lights are designed for safety and are located on the interior walls of your swim
spa. The on/off switch is located on the topside control panel.
12. EQUIPMENT CONTROL SYSTEM
This houses the wiring and electrical components necessary to operate the swim spa.
13. SWIM SPA HEATER
This element is an electric heater housed in a stainless steel tube. It is thermostatically controlled
and equipped with a high-limit temperature safety shut-off sensor. The high-limit sensor cannot
be reset until the temperature within the heater assembly drops several degrees below the shut-off
temperature of 108° - 110° F. Should the high-limit switch trip repeatedly, contact your dealer or
qualified service representative to diagnose the problem. Your swim spa will heat approximately
1˚- 2˚ per hour, on average when the cover is closed. These times may vary and the swim spa
should have a cover installed.
