Master 123340 User Manual

Repair Parts 10
For parts or assistance, call Master Plumber Customer Service at 1-800-628-9439
6127 1109
4
3
13
12

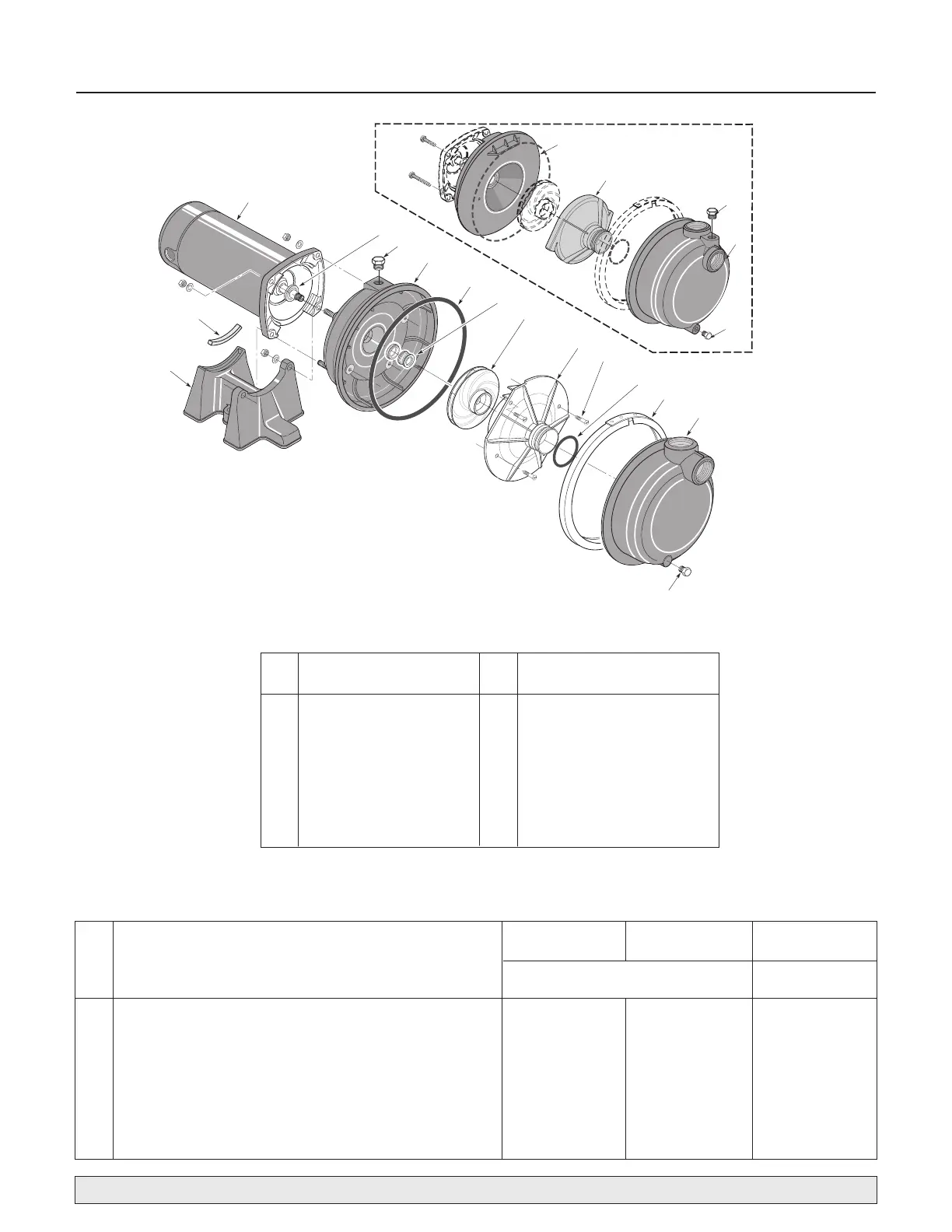

Seal Plate,
Diffuser, and
Pump Body for
Model 123342
L
1
7
6
-
3
5
P
1
2
4
3
5
6
7
8
9
10
13
12
11
14
15
8
Key Key
No. Description No. Description
1 Motor 9 #8-32x1“ Screw
2 Slinger • Lockwasher*
3 Priming Plug 10 Diffuser O-Ring
4 Seal Plate 11 Clamp
5 O-Ring 12 Pump Body
6 Shaft Seal 13 Drain Plug
7 Impeller 14 Base
8 Diffuser 15 Motor Pad
Parts in Bold Face are included in Seal and Gasket Kit and in Overhaul Kit.
Parts in Bold Face Italics are included in Overhaul Kit only.
* Model 123342 only
Part Names
123340 123341 123342
1 HP 1-1/2 HP 2 HP
Key Part
No. Description 115V/230V 230V
1 Motor J218-596PKG J218-601PKG J218-883APKG
4 Seal Plate Complete L176-47P1 L176-47P1 C103-189P1
11 "V" Clamp C19-54SS C19-54SS C19-37A
12 Pump Body Front Half C176-53P C176-53P C176-62P
14 Base C4-42P C4-42P C4-42P
• Seal and Gasket Kit FPP5000 FPP5000 FPP50000
Includes Items 2, 5, 6, 9, & 10. See “Part Names,” above.
• Overhaul Kit FPP5001 FPP5002 FPP5008
Includes all items in Seal and Gasket Kit plus Item 7,
impeller, and 8, diffuser. See “Part Names,” above.
