Master HG-201A - Exploded View

1110
MASTER HEAT GUN® REPLACEMENT PARTS (HG MODELS)
18
10
9
7
7
2
1
4
6
5
20
8
12
20
17
11
16
13
6
3
9
14
15
21
19

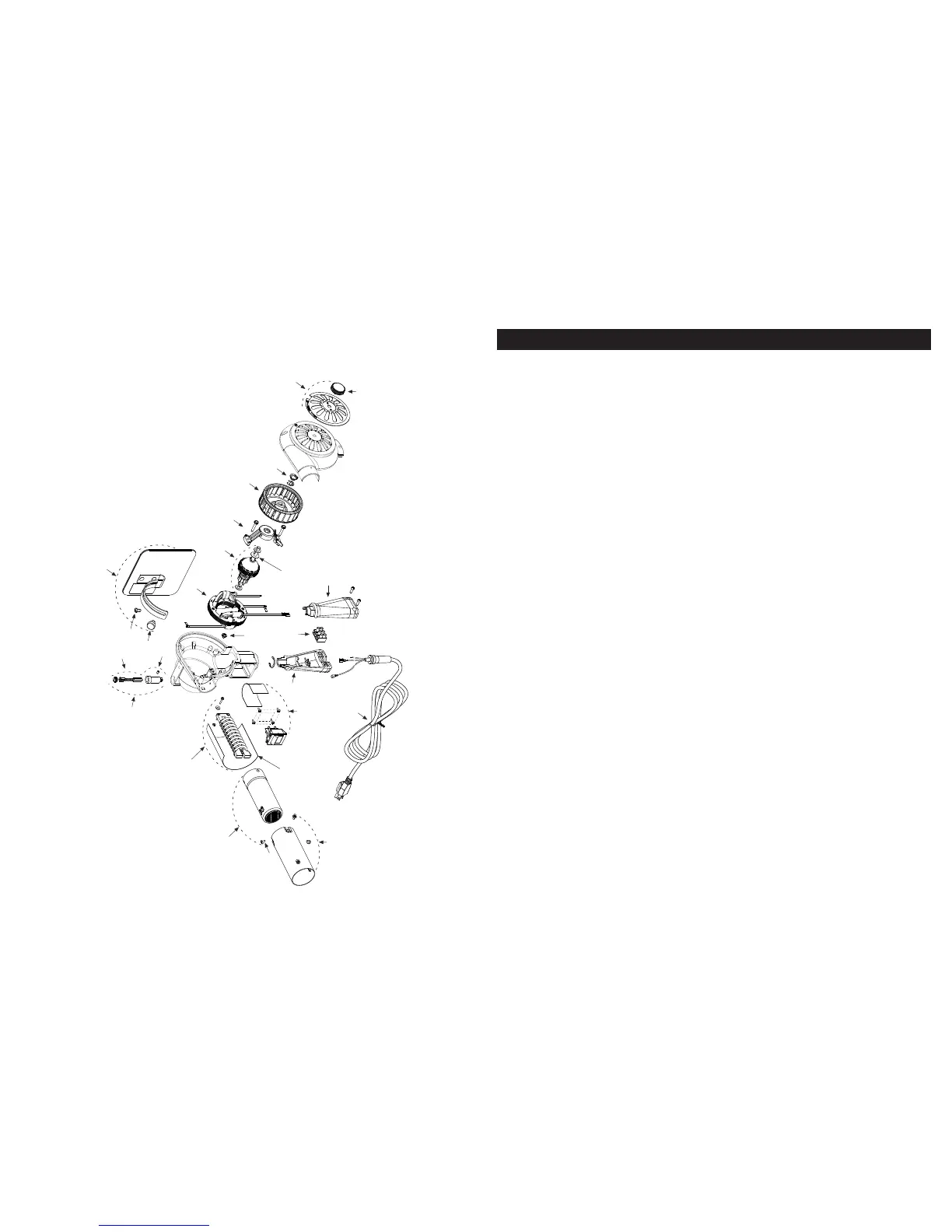

EXPLODED VIEW
WHR-003KA Armature End Play Spacer Kit (6)
* 230 Volt Models Only
Note: Kits include hardware (see exploded view)
Item No. Part Number Description
1 ARM-542 Armature Kit, 120V
1 ARM-543 * Armature Kit, 230V
2 BLW-001 Blower Wheel
3 BRH-025K * Brush Holder Kit, 230V (2), with Brushes
3 BRH-040K Brush Holder Kit, 120V (2), with Brushes
4 BRY-141 Upper Bearing Bracket Kit
5 BSY-005 Stand Kit
6 FLD-450 * Field Kit, 230V, with Brushholders
6 FLD-451 Field Kit, 120V, with Brushholders
7 GRD-007 Shutter Guard Kit
8 HAS-011K Element Kit, HG-501A, with Mica
8 HAS-012K * Element Kit, HG
-202A, with Mica
8 HAS-013K * Element Kit, HG-302A, with Mica
8 HAS-014K * Element Kit, HG-502A, with Mica
8 HAS-015K Element Kit, HG-751A, with Mica
8 HAS-016K * Element Kit, HG-752A, with Mica
8 HAS-041K Element Kit, HG-301A, with Mica
8 HAS-042K Element Kit, HG-201A, with Mica
8 HAS-043K Element Kit, HG-751B, with Mica
9 HDE-013 Handle Kit
10 INN-032 Mica, Corrugated
11 KNB-003 Knob
12 NAS-006 Nozzle Kit
13 SHL-004 Shield Kit
14 SRW-141 Screw, Clamp
15 SRW-321 Screw, Shoulder
16 SRW-349K Screw, Nozzle (Kit of 3)
17 SWH-019 Switch Kit, Snap-In Rocker
17 35217 S
witch Kit, Momentary Contact
18 35257 Brush/Spring and Cap Kit (2)
19 TMB-003 * Terminal Block
20 51211 Cordset Kit, 120V, 15 Amp, with Guard
20 51212 Cordset Kit, 120V, 20 Amp, with Guard
20 51265 * Cordset Kit, 230V, USA, with Guard
20 35219 * Cordset, 230V, European, with Guard
20 35006 * Cordset, 230V, British, with Guard
21
