Operation
Pre-Lighting Instructions:
Connecting the LP Cylinder
ALL NEW LP CYLINDERS MUST BE PURGED
BEFORE THE FIRST FILLING.
– Turn heater gas valve knob and LP cylinder
valve to OFF position.
– LP cylinder valve equipped with old style
tting has LEFT HANDED THREADS. Turn
tting CLOCKWISE to loosen. Protect this
tting when disconnected from LP cylinder.
– Have your LP cylinder lled by your local
propane gas supplier.
– Some LP cylinders have a bleed-OFF valve.
This valve should be inspected for leaks after
each lling of the LP cylinder. Turn the valve
clockwise to close.
– Fasten full propane tank and connect
proper tting to LP cylinder valve by turning
COUNTER-CLOCKWISE.
– With heater gas valve knob still in OFF
position turn ON the LP cylinder valve and
check for leaks with soap solution.
Checking For Leaks
– To check for leaks, make up a 50/50 solution
of dish soap and water. Apply this solution
to all gas connections. If bubbles appear,
there is a leak. If a leak is found, turn off
the gas supply, and re-connect the leaking
connection. If the leak persists after several
tries, contact Pinnacle Customer Service at
(800)-641-6996.
– The installation of this heater must meet all
local codes and/or gas utility requirements. In
the absence of local codes, the National Fuel
Code ANSI Z223.1 should be followed.
– The minimum clearances to any combustible
construction materials must be maintained at
all times (See Page 2).
– Inspect the heater before each use, and at
least annually by a qualied service person.
Purging and filling of the
LP cylinders must be
performed by personnel who have been
thoroughly trained in accepted LP gas
industry procedures. Failure to follow these
instructions may result in explosion, fire,
severe personal injury or death.
WARNING
Supply Valve
Regulator
Hose
Propane Tank

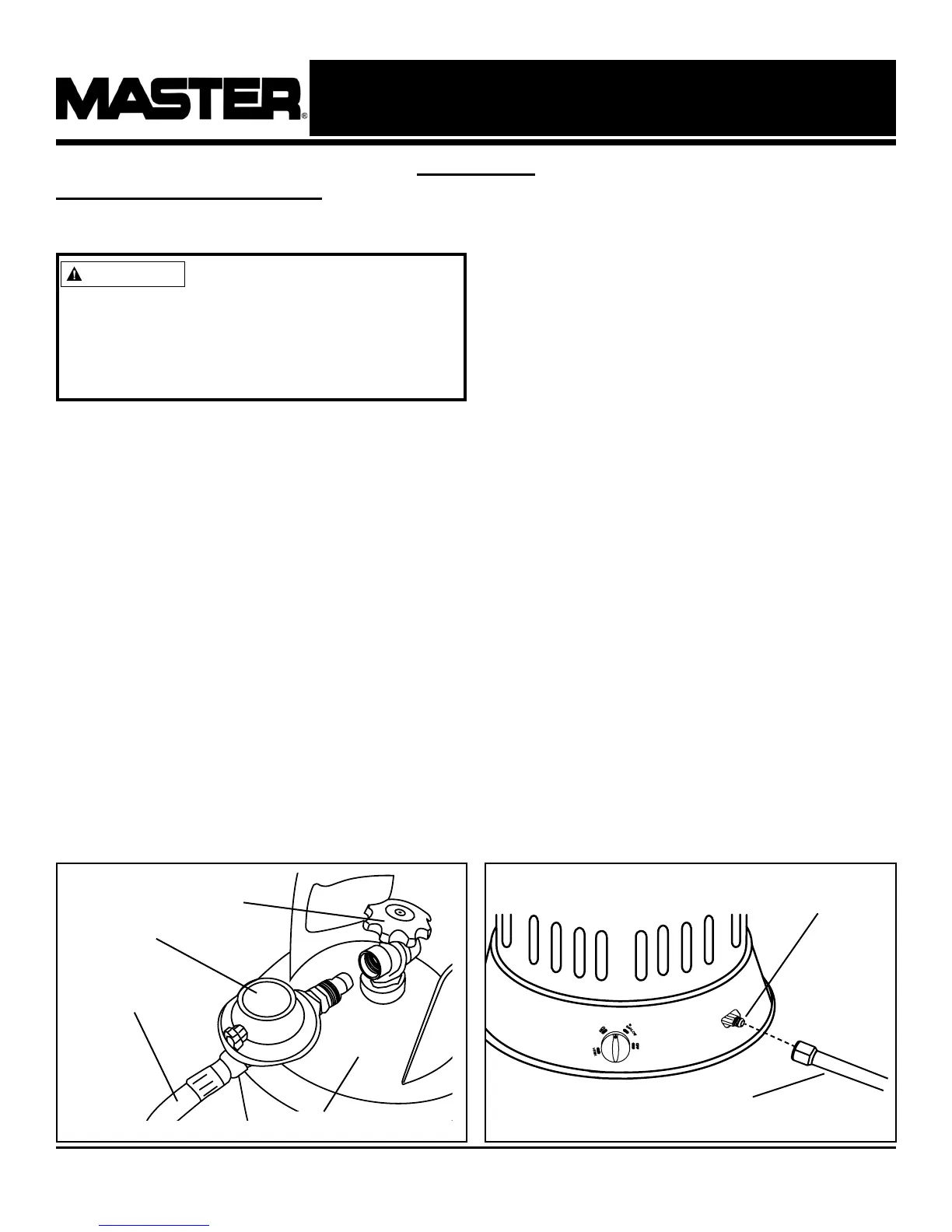

Figure 6 Figure 7
Hose
Inlet
Connector
7
