Master V- 550 - Assembly Steps 2 & 3; Footplate Attachment; Saddle and Rail Assembly

53
EN

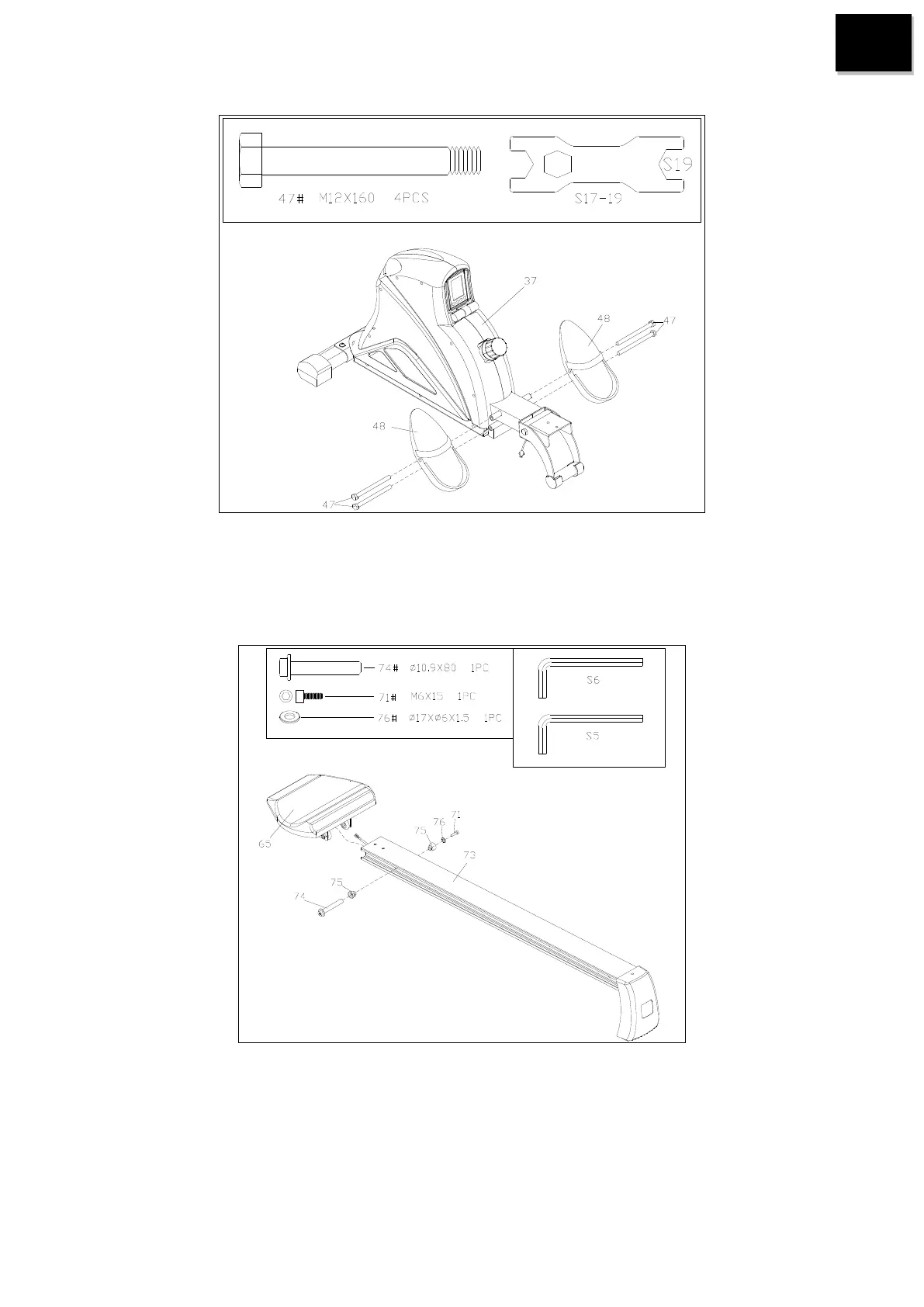

Step 2
Attach both Footplate(48) to the Main frame(37) using Bolt(47).
Step 3
Push Saddle(65) into the groove of the Aluminum rail(73). Assemble the Locating Mount(75) to the Aluminum
rail(73) using Axes(74), Flat washer(76) and Bolt(71)
