13

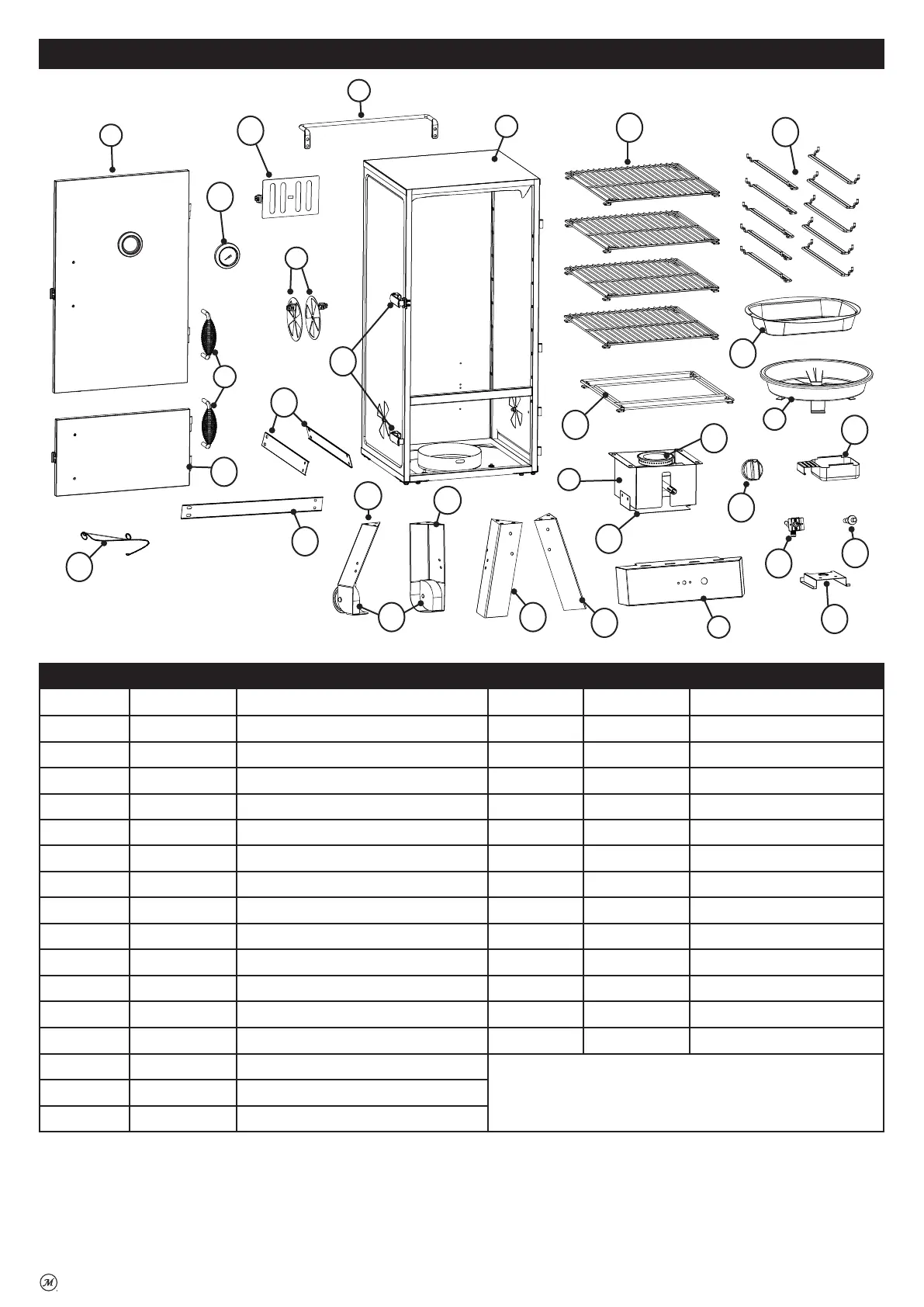

PARTS LIST
PART NO QUANTITY DESCRIPTION PART NO QUANTITY DESCRIPTION
1 1 Smoker Body 17 1 Burner
2 1 Large Smoker Door w/ Logo Plate 18 2 Side Leg Brace
3 2 Air Damper - Round 19 2 Door Latch
4a 1 Left Rear Leg w/ Wheel 20 1 Heat Shield
4b 1 Right Rear Leg w/ Wheel 21 10 Cooking Grate Support
5 1 Control Panel 22 1 Matchstick w/Chain
6 1 Burner Box 23 1 Drip Cup
7 2 Door Handle 24 1 Right Front Leg
8 1 Body Handle 25 1 Left Front Leg
9 1 Flame Disk Bowl 26 1 Small Smoker Door
10 1 Water Bowl 27 2 Wheel
11 1 Water Bowl Holder 28 1 Air Damper - Square
12 4 Cooking Grate 29 1 Drip Cup Bracket
13 1
Temperature Gauge w/ Beauty Ring
30 1 Rear Leg Brace
14 1 Valve (pre-assembled)
15 1 Ignitor (pre-assembled)
16 1 Control Knob (pre-assembled)
11
14
15
16
20
17
29
25
6
13
19
3
24
7
26
4a
4b
18
30
22
27
10
23
9
21
12
2
1
8
28
5
Actual product may differ from picture shown
Parts that are preassembled at time of purchase should be ordered separately if replacement is needed.
