MasterCool COMMANDER2000 User Manual

8 www.mastercool.com
operational and leak tests on the A/C system.
THE MACHINE

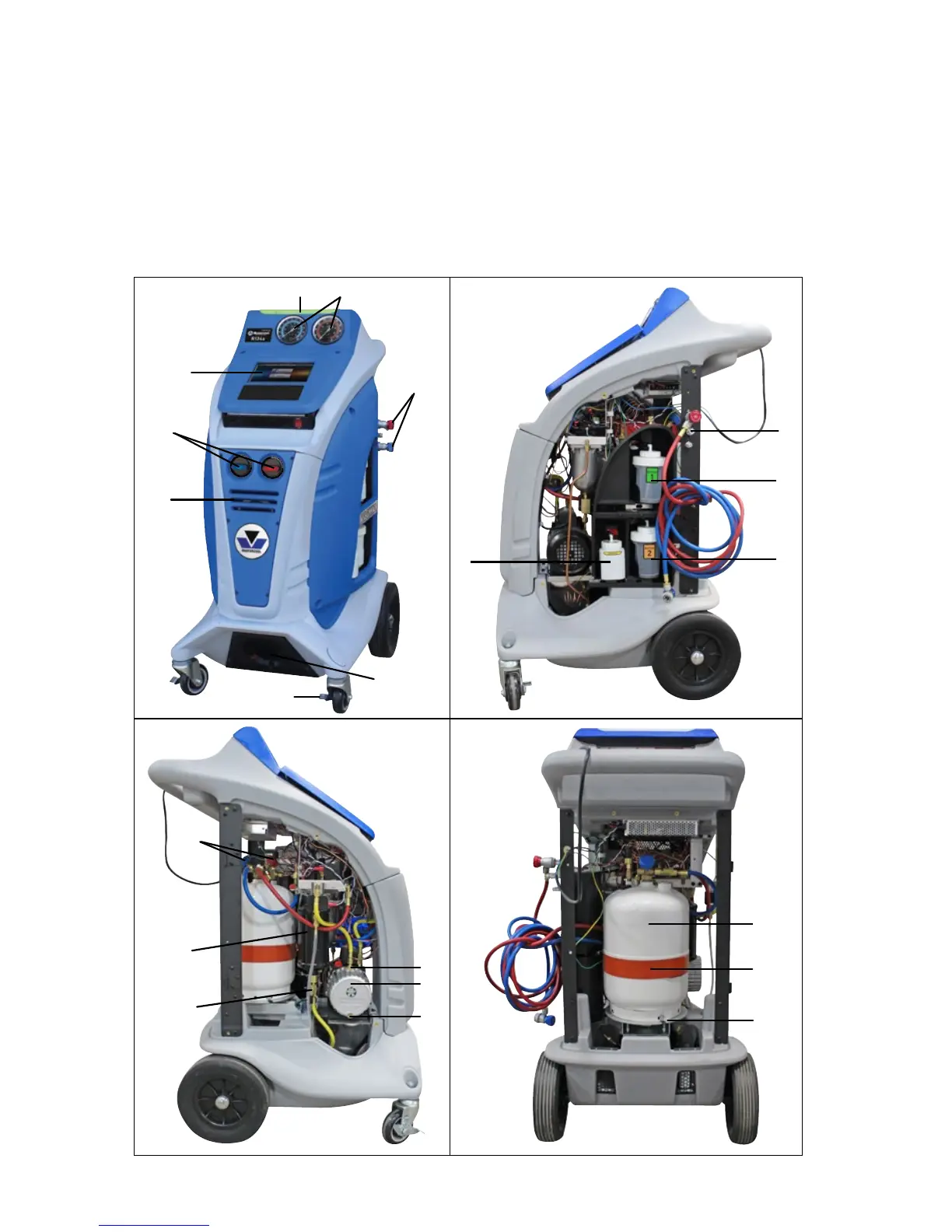

BASIC COMPONENTS (Refer to Figures 2, 3, 4 and 5.)
A. Visual Indicator Light
B. Low and High Side
Analog Gauges
C. Coupler Storage
(Hose Flush Manifold
(Commander3000 (-E))
D. Tank Filling Adapter
E. Fresh Oil Bottles
(COMMANDER2000 / 3000-E only)
F. Waste Oil Bottle
G. Cabinet Fan
H. Wheel Locks
I. Speaker
J. Low and High Side Machine Valves
K. Computer Command
Center
L. Low and High Side DOT
Tank Valves
M. 30 lb DOT Tank
N. Heater Blanket
O. Load Cell Scale
P. Vacuum Pump
Q. Vacuum Pump Vent/
Oil Fill
R. Vacuum Pump Oil
Drain
S. Filter Ball Valve
T. Filter
C
A
B
G
H
I
J
K
D
E
F
E
L
P
Q
R
S
T
M
N
O
FIG. 2 FIG. 3
FIG. 4 FIG. 5
