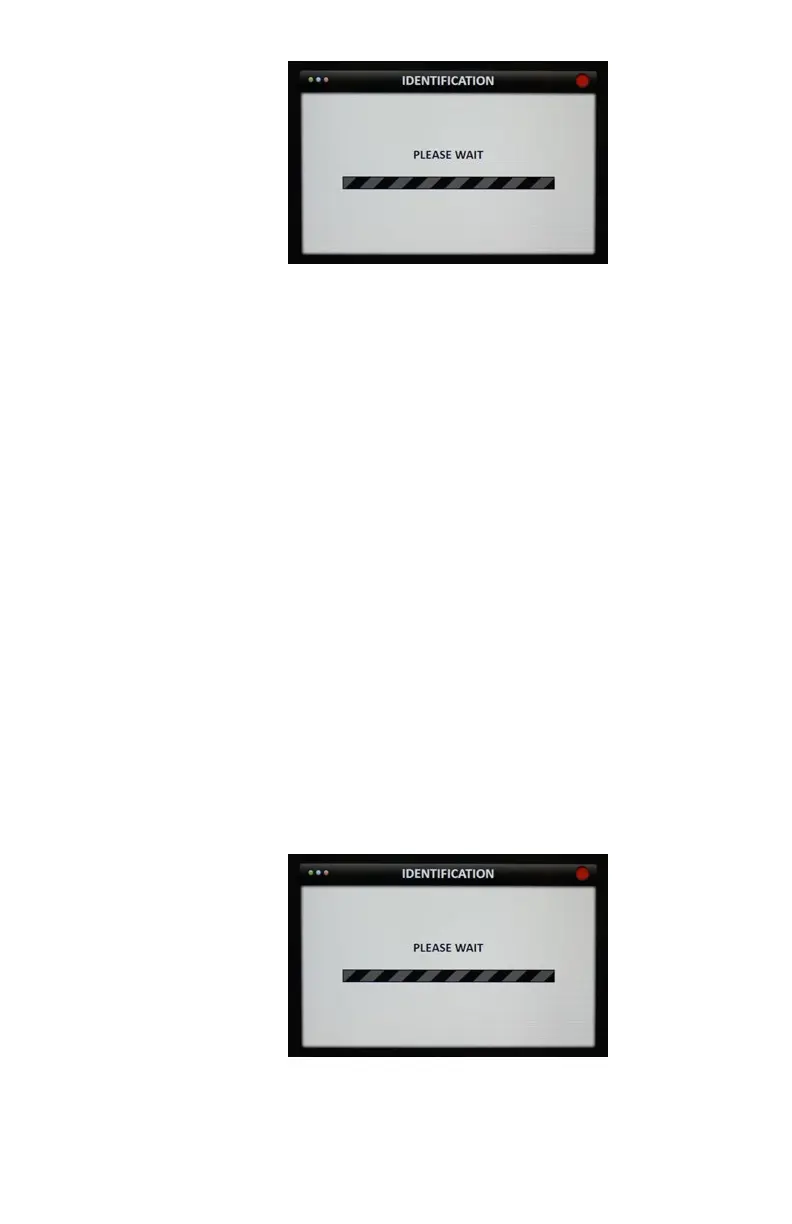

When the identification process is complete the machine will alert to one of the following:
a.) If the refrigerant ID has passed the machine will continue with the recovery process (see below)
b.) If the refrigerant ID fails, follow the prompts to clear hoses and exit.
2. Follow the directions on the screen.
3. Connect the couplers to the vehicle. Press next to continue.
4. Open the couplers by turning the knob clockwise. Press next to continue.
5. Open the machine valves. Press next to continue.
6. The recovery screen will now be displayed. The screen will show the total amount of refrigerant in
the tank, the amount of refrigerant being recovered, the tank pressure and temperature, the amount
of waste oil removed and the vehicle AC pressure.
7. When the recovery is complete “process complete” will be displayed.
Vacuum:
1. Press the vacuum button.
2. Use the keypad displayed to program in desired vacuum time. The vacuum is pre-programmed
for 10 minutes which includes a two minute vacuum leak check. If the vacuum leak check is not
desired press the leak test button to disable it. Press the “C” button on the keypad to clear out time
then program in the desired vacuum time. Press the double arrows to lock in the vacuum time.
3. Press the go button, follow the instructions on the screen. Connect the couplers to the vehicle, press
next. Open the couplers by turning the knobs clockwise, press next. Open the Machine valves, press
next.
4. The vacuum procedure will now be performed.
Refrigerant Charge:
NOTE: Your hoses will be flushed before the refrigerant charge process begins.
1. Press the refrigerant charge button, use the keypad to program in the desired refrigerant charge.
You may also use the database option to look up the year make and model of the vehicle. Press the
double arrows to lock in your selection. Press the go button.
NOTE: The machine will go through the identifying process before refrigerant charging. This will take
approx. 5 minutes
When the identification process is complete the machine will alert to one of the following:
a.) If the refrigerant ID has passed the machine will continue with the recovery process (see below)
b.) If the refrigerant ID fails, follow the prompts to clear hoses and exit.
2. Follow the instruction on the screen.
3. Connect the couplers to the vehicle, press next
