MasterCraft 054-1216-4 User Manual

g. 1
15
Installing impact sockets
WARNING: Use only impact
sockets and accessories that are designed for
use with an impact wrench. Do not use chrome
plated sockets and accessories. Chrome plated
sockets and accessories are designed for hand
use only and MUST NOT be used with an impact
wrench. They may shatter and possibly cause
serious injury.
WARNING: Always remove the
plug from the power source before changing any
sockets or accessories. You may injure your hand
if the tool is started accidentally.

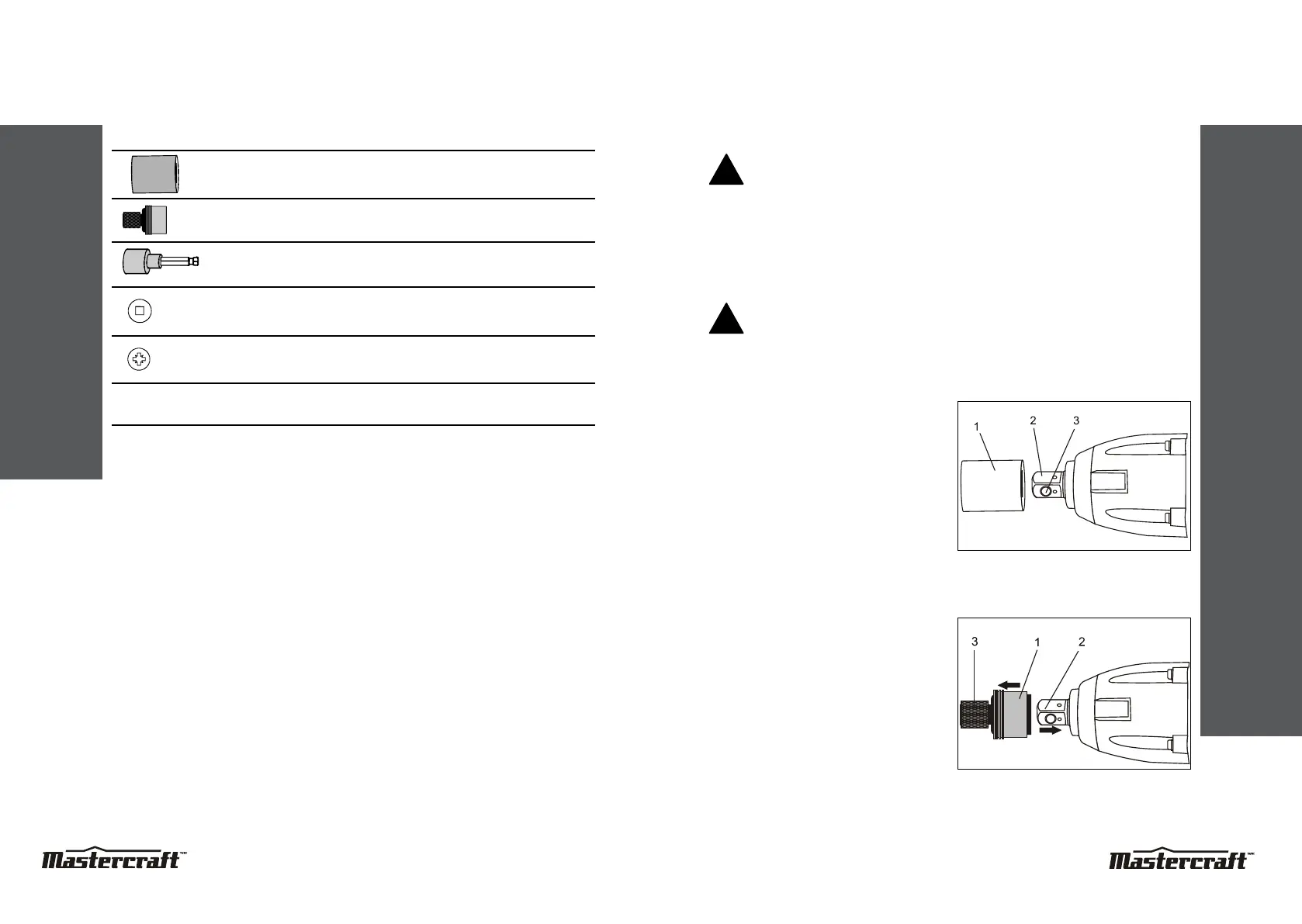

To install a socket, press the square portion of the
socket (1) onto the square drive (2) of the impact
wrench (Fig. 1).
NOTE: Slide the socket fully onto the square drive
so the socket retainer (3) will hold the socket
rmly in place
Installing the hex drive adapter
By installing the 1/2” square to 1/4” hex adapter,
the impact wrench can be used as an impact
driver for driving screws and for use with impact
nut drivers.
1. Pull outward on the large quick connect
collar (1) (Fig. 2).
2. Slide the adapter over the impact wrench
1/2” drive (2).
3. When the adapter is fully on the 1/2” drive,
release the collar.
14
IMPACT WRENCH 054-1216-4
IMPACT WRENCH 054-1216-4
ACCESSORIES
Illustration Description Size Qty
1/2” drive impact
socket
1/2”, 5/8”, 3/4” 3
Quick release
adapter
1/2” to 1/4” 1
1/4” hex drive nut
driver
3/16”, 1/4”, 9/32”, 5/16”,
11/32”, 3/8”, 7/16”
7
Screwdriver bit #1, #2, #3 3
Screwdriver bit #1, #2, #3 3
Blow moulded
case
1
OPERATING INSTRUCTIONS
!
!
g. 2
