MasterCraft 054-1319-0 User Manual

12

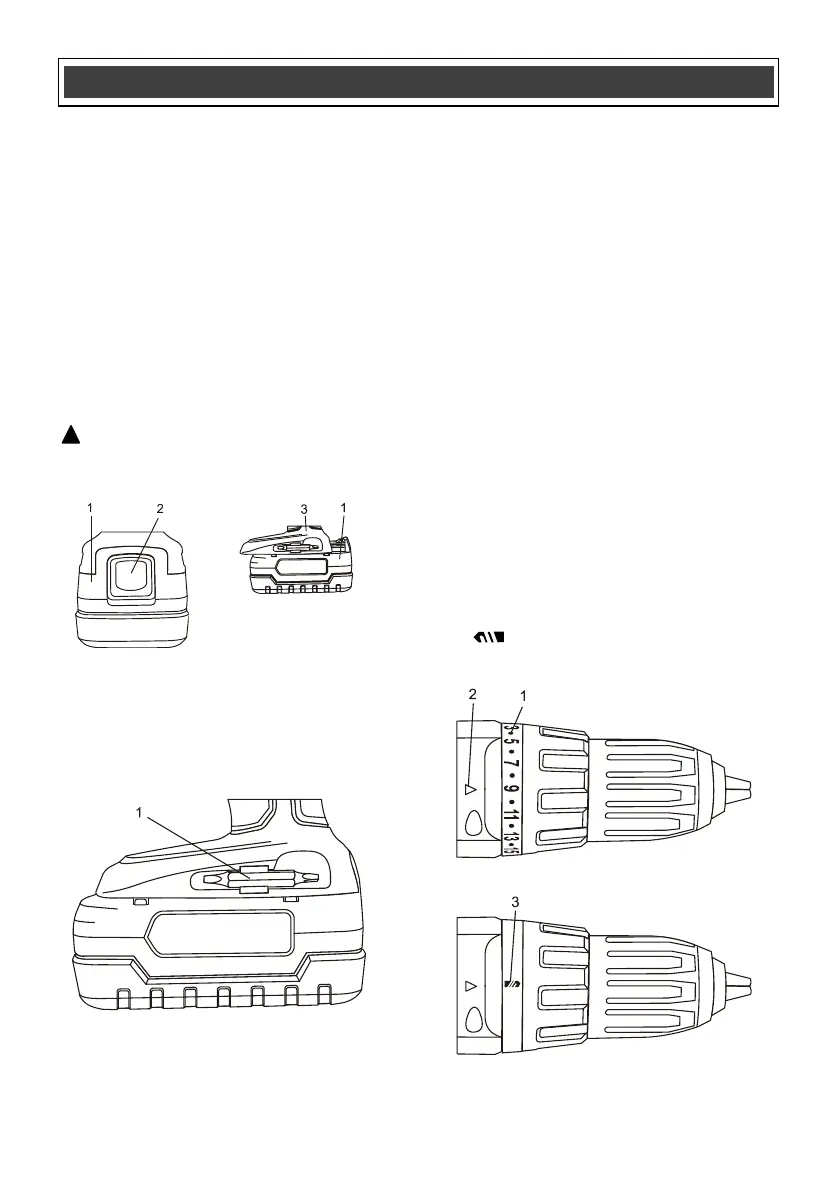

INSTALLING THE BATTERY PACK IN THE
DRILL
1. Remove the discharged battery pack (1)
from the tool by pressing the battery
release button (2) on the rear of the battery
downward (Fig. 3) and pulling the battery
pack out of the tool handle (3) (Fig. 4).
2. Insert the fully charged battery pack into
the matching slots in the rear of the tool
handle where the discharged battery pack
has been removed.
NOTE: The battery release button will
"click" into place when the battery pack is
fully installed.
WARNING: Do not immerse battery
pack in water. Sudden cooling could cause a
hot battery to explode or leak.
ON-BOARD SCREWDRIVER BIT STORAGE
Convenient on-board screwdriver bit storage (1)
is provided on the drill handle base (Fig. 5).
ADJUSTING THE TORQUE
Your drill is equipped with an adjustable torque
clutch for driving different types of screws into
different types of materials. It also has a setting
for "drilling".
The proper setting depends upon the type of
material, the size of screw being used and the
function required.
Adjust the torque setting as follows:
1. Identify the torque settings located on the
torque adjustment ring (1) (Fig. 6).
2. Rotate adjustment ring to align the correct
torque setting number with the torque
indicator arrow (2). See the chart below for
the correct torque settings.
 1–5 For driving small screws
 6–10 For driving medium sized screws into
soft materials
 11–15 For driving screws into soft &
medium-density materials
 16–19 For driving screws into hardwood
 20–23 For driving large screws
 For drilling. This position is marked
with a drill bit icon (3) on the torque
adjustment ring (Fig. 7).
!
ASSEMBLY AND OPERATING
Fig. 5
Fig. 6
Fig. 7
Fig. 3
Fig. 4
