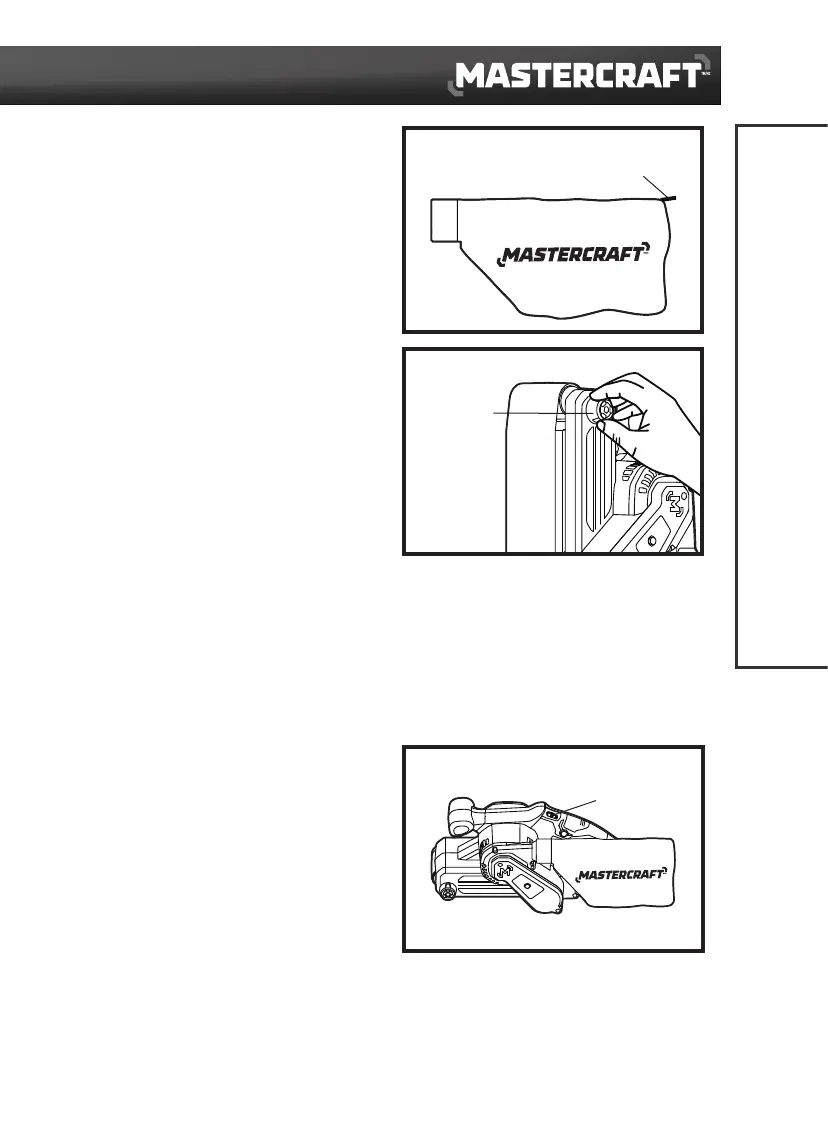

CLEAN THE DUST BAG
(fig 3)
Check bag frequently and empty it before it gets full.
To empty the dust bag, remove it from the tool. Open
the zipper on back side of bag and empty the dust
into waste container.
BELT ADJUSTMENT
(fig 4)
Your sander features an automatic belt-control
system that helps to keep the belt running in the
centre of the rollers. The system has been preset
at the factory, but may require adjustment to avoid
frayed belt edges and wear on the sander frame
when a belt is changed or an older belt stretches.
To adjust the belt (if necessary)
1. Plug in the cord with the tool OFF.
2. Hold handle of the sander with one hand and tilt the sander so that the belt is facing the operator.
3. Squeeze the on/off switch to begin rotation of the belt.
4. Turn the belt adjustment knob counter-clockwise to move the belt away from the sander motor. Turn the
belt adjustment knob clockwise to move it towards the sander motor.
5. Release the on/off switch and make sure that the belt has come to a complete stop before setting the
tool down.
ADJUST THE SPEED
(fig 5)
The variable-speed feature on this sander allows
you to match the proper speed to the material being
sanded.
1. The variable-speed dial is used to adjust the speed
of the sander.
2. Turn the dial to increase or decrease the speed of
the tool.
3. Position “0” selects the slowest speed; position “5”
selects the fastest speed. Adjust the speed for optimum performance.
OPERATING INSTRUCTIONS
fig 3
fig 4
Belt
adjustment
knob
fig 5
Variable-
speed dial
Zipper
