OPERATING INSTRUCTIONS
NOTE: The chuck accepts only standard 1/4” (6 mm) hexagonal shank accessories with power
groove.
Fig. A
Collet
Collet nut
Fig. C
Fig. D
a
b
ON
OFF
Fig. E
Fig. F
Fig. G
Fig. H
Fig. I
Fig. D
Fig. B
1
2
3
1
2
1/4" (6 mm)
WARNING:
Always hold the tool away from your face. Accessories can be damaged during handling
and can fly apart as they come up to speed.
WARNING:
This tool should be set to the slowest speed before switching on, dial the variable speed
selector (4) to position “1”.

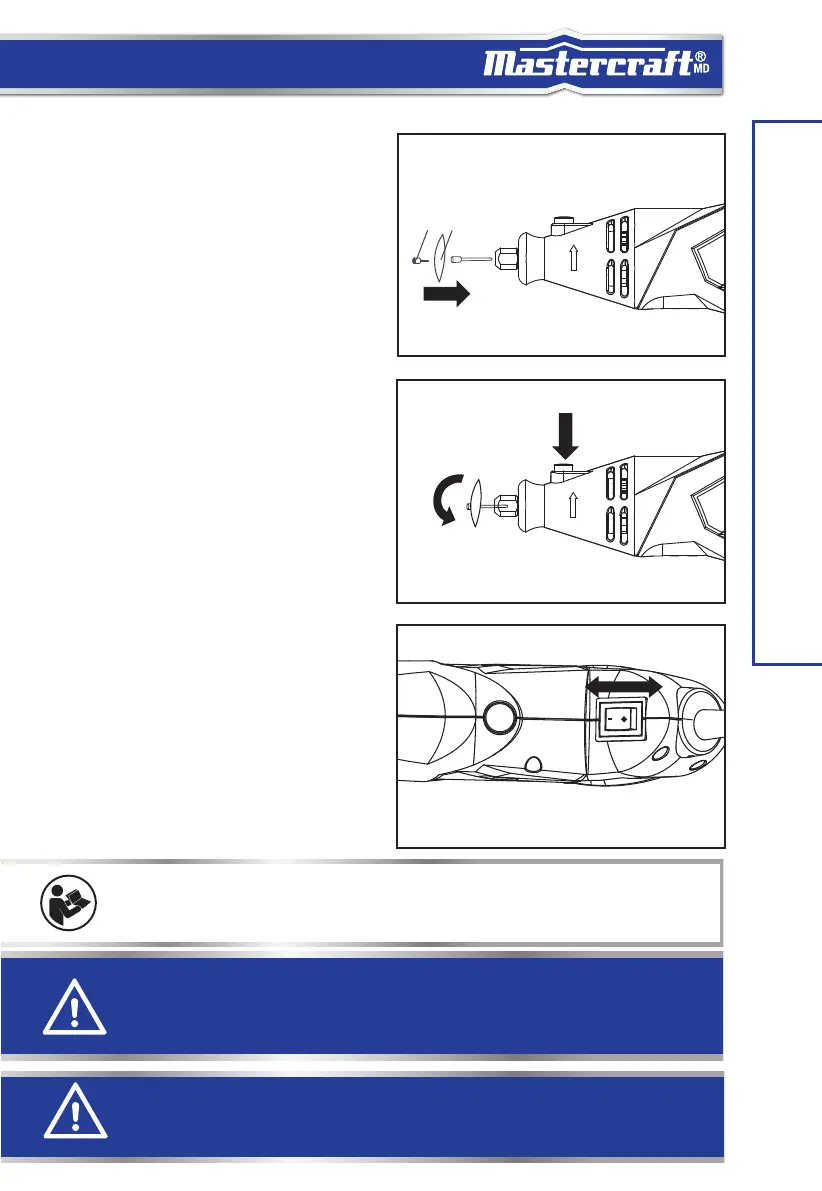

FITTING A CUTTING/GRINDING DISC (FIG.
D, E)
Install appropriate mandrel of cutting/grinding disc into
collet and tighten as detailed earlier. Unscrew the small
screw (a) on top of mandrel, then reinsert screw (a)
through one appropriate cutting disc (b) into mandrel
and lightly tighten clockwise the screw (a) with wrench.
Do not over-tighten, or the cutting disc may crack.
Finally , release the spindle lock button.
SWITCH ON/OFF (FIG. F)
To start the tool, press the on/off switch (6) to “I”
position. To stop, press the on/off switch to “O” position.
