CORDED MULTI-CRAFTER KIT - 054-8251-6CORDED MULTI-CRAFTER KIT - 054-8251-6
19 20
No. PartNo. Description No. PartNo. Description
1 4810002000 Power Cord & Plug 18 5610024000 Tapping Screw
2 3121045000 Cord Guard 19 2823320000 Wire Assembly
3 4930038000 Receptacle 20 2823319000 Wire Assembly
4 4930008000 Sleeve 21 3127045000 Switch Actuator
5 4890984000 PCB Assembly 22 5610042000 Tapping Screw
6 2740305000 Stator 23 3321535000 Right Housing
7 2800176000 Brush Holder 24 3321534000 Left Housing
8 4960273000 Carbon Brush 25 5700040000 Oil Impreging Bearing
201 2823372000 Motor Assembly 26 3121038000 Rubber Stick
9 5700199000 Ball Bearing 202 2823616000 Shaft Assembly
10 2750937000 Rotor 27 3421179000 Lever
11 5660028000 E Ring 28 3551691000 Bush
12 5700048000 Ball Bearing 29 5700048000 Ball Bearing
13 3704682000 Counterweight 30 3552005000 Spindle
14 3700352000 Washer 203 2823240000 Screw With Washer
15 5700205000 Ball Bearing 31 5690018000 O Ring
16 5660144000 Circlips For Shaf 32 5650300000 Washer
17 3120234000 Cord Anchorage 33 5620445000 Screw
Ifanypartsaremissingordamaged,orifyouhaveanyquestions,
pleasecalltheToll-freeHelpline,at1-800-689-9928.

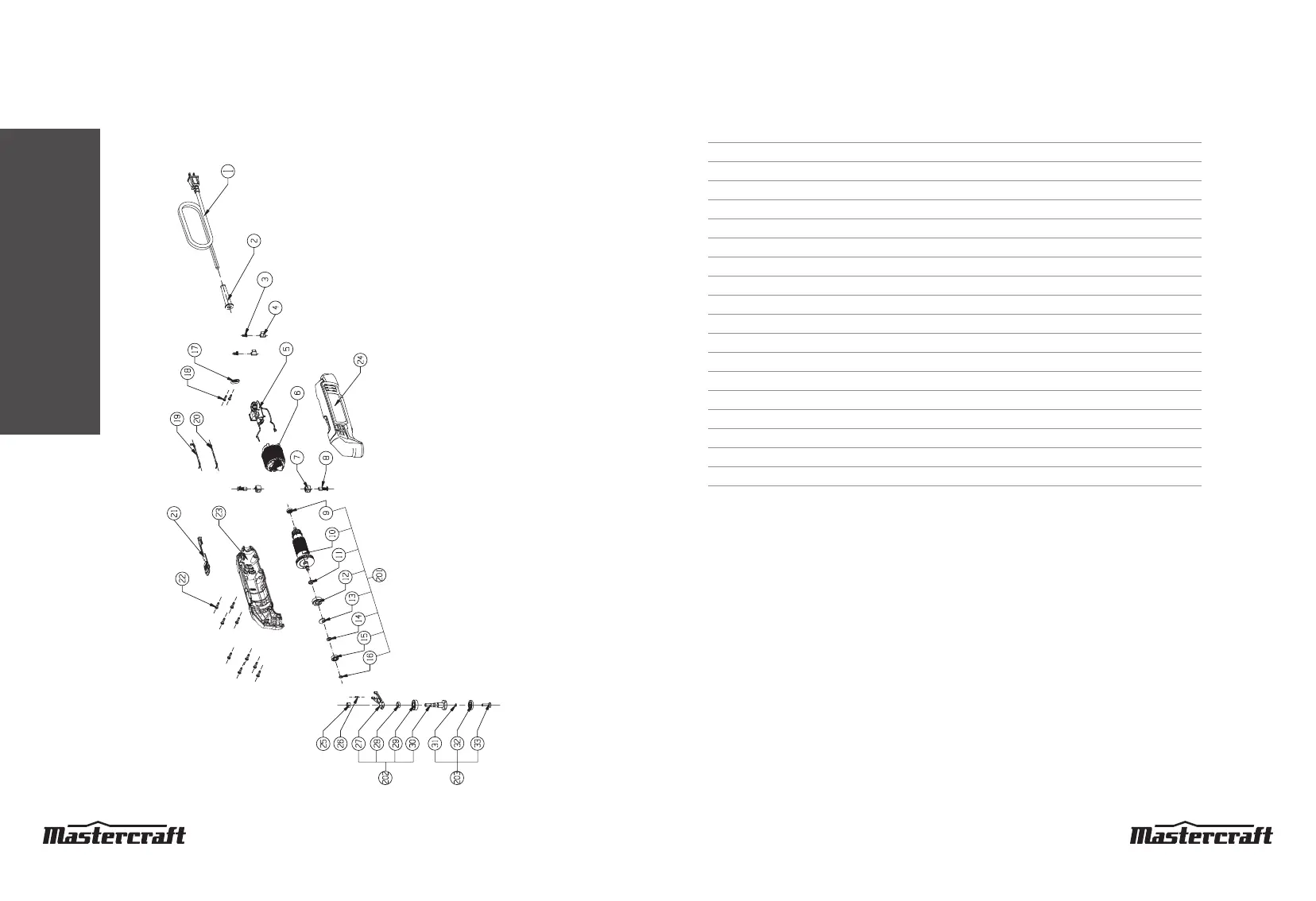

Exploded view
PARTS LIST PARTS LIST
