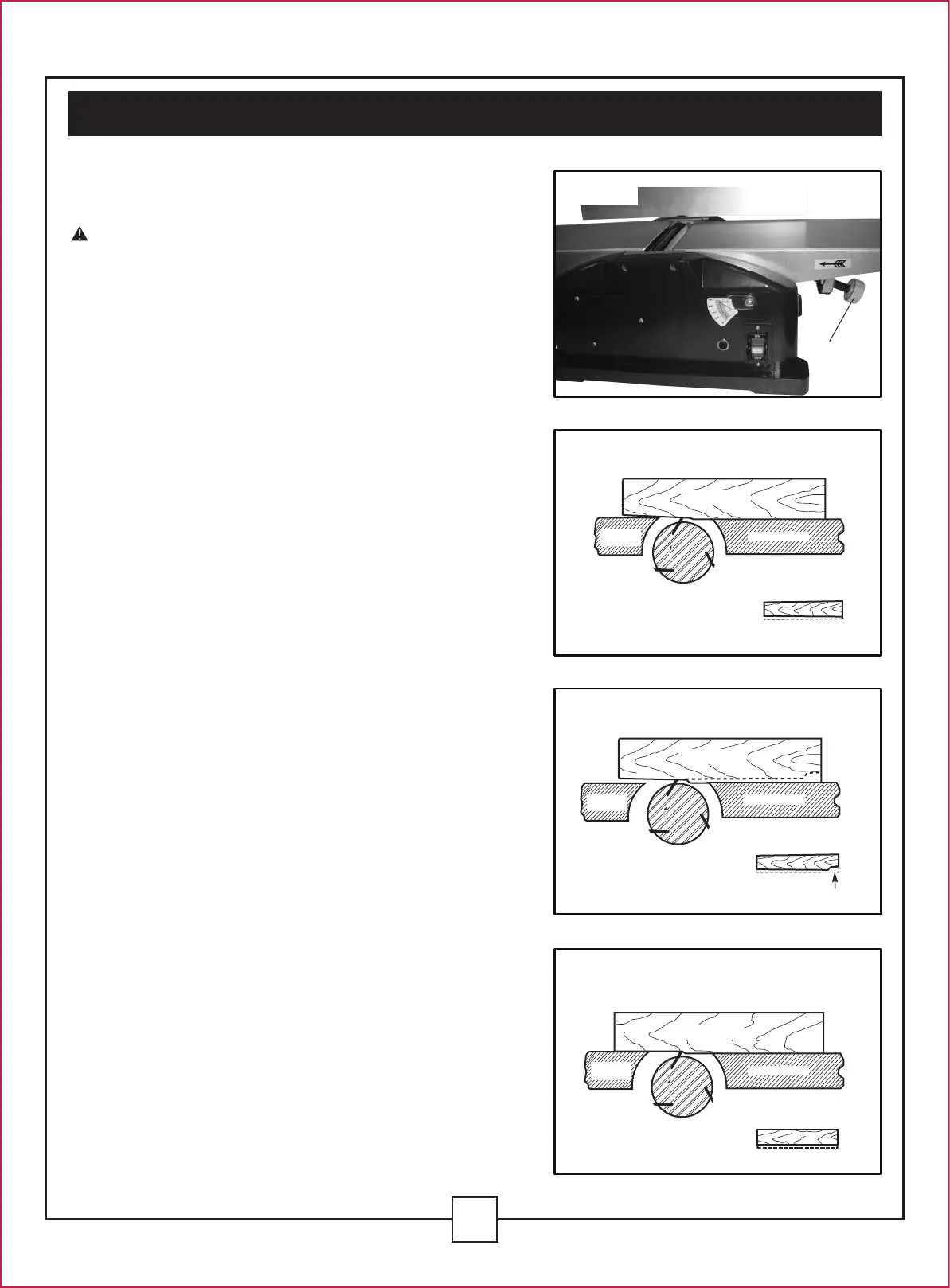

ADJUSTING THE CUTTERHEAD
(Fig. 23-27)
CAUTION: Before replacing the cutterhead, always
unplug the machine.
- Remove cutterhead guard.
- Turn planing depth adjustment knob (H) (Fig. 24)
closewise until the pointer points to 1/8”.
- Adjust the bolts (C) (Fig. 23) until the cutterhead can
be moved by hand.
- Use the adjustment tool (I) to adjust the cutterhead.
The cutterhead (E) (Fig. 23) is properly adjusted when
the cutting edge touches the raised surface of the
adjustment tool.
- If the cutterheads are set too low, the result will be
as shown in Fig. 25, and the finished surface will be
curved.
- If the cutterheads are set too high, the work will be
gouged at the end of the cut, as shown in Fig. 26.
- As a final check, run a piece of work slowly over the
cutterheads for 6 to 8 inches (15–20 cm). The wood
should rest firmly on both tables as shown in Fig. 27,
with no open spaces under the finished cut.
Fig. 27
16
V. Assembly and adjustments (continued)
Fig. 25
Fig. 26
CUTTERHEAD
CUTTERHEAD SET TOO LOW
CUTTERHEAD SET TOO HIGH
CUTTERHEAD AT
CORRECT HEIGHT
MATERIAL
MATERIAL
OUT-FEED
TABLE
OUT-FEED
TABLE
IN-FEED TABLE
IN-FEED TABLE
CUTTERHEAD
GOUGE
OUT-FEED
TABLE
IN-FEED TABLE
CUTTERHEAD
MATERIAL
H
Fig. 24
