ASSEMBLY
ASSEMBLY

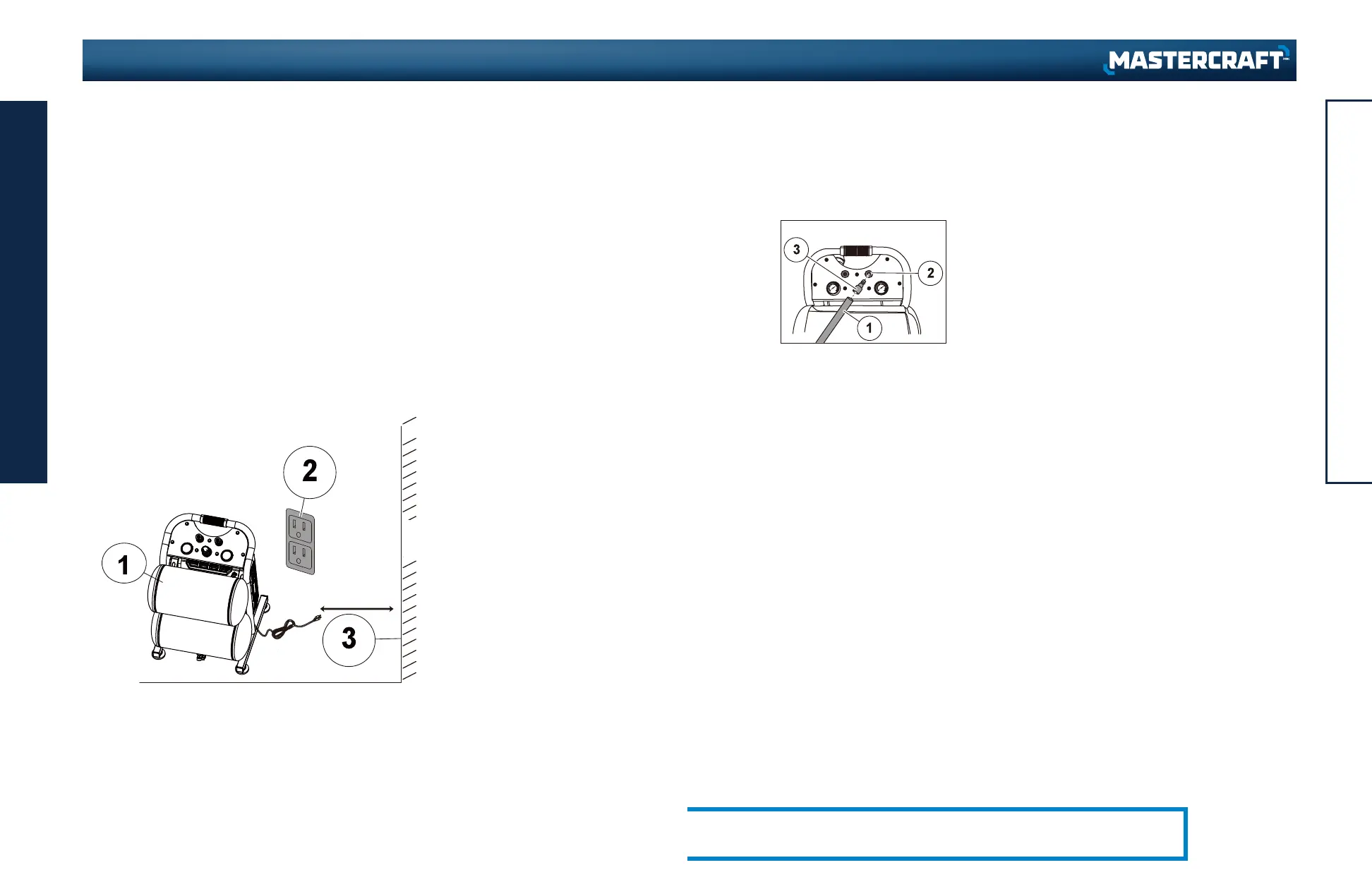

Assembly
1. Unpack the air compressor unit. Inspect the unit for damage. If the unit has been damaged, contact the
retailer immediately.
THE CARTON SHOULD CONTAIN:
•
Air compressor
•
Owner’s manual
•
Air filter
2. Check the air compressor’s identification label to ensure that you have purchased the intended model
and that it has the required pressure rating for its intended use.
3. Positioning of the air compressor:
• Position the air compressor (1) near an electrical outlet (2).
• The compressor must be at least 12" (31 cm) from any wall (3) or obstruction, in a clean, well-ventilated
area to ensure sufficient airflow and cooling.
• Place the air compressor on the floor or a hard, level surface. The air compressor must be level to
ensure proper drainage of the moisture in the tank.
4. Connect air hose to compressor
• Connect the air hose (1) to the compressor’s air outlet (2) with the quick
connector (3).
NOTE: ¼" (6.4 mm) NPT air hose is required for connecting to the air compressor.
12" (31 cm)
Wall
