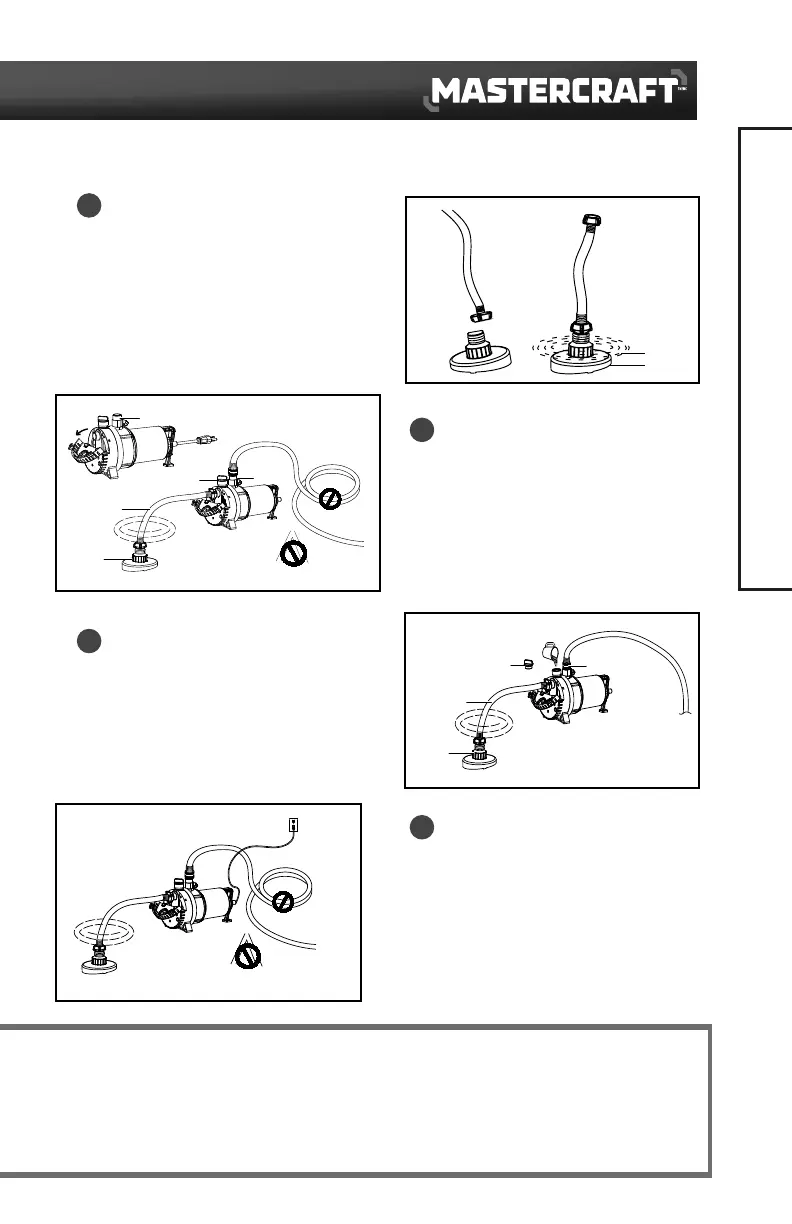

QUICK START GUIDE
ATTACHING HOSES
Open the bottom cover.
Thread the other end of the suction hose
to the inlet of the pump.
Thread a garden hose with a 3/4" (19
mm) NH fitting, a diameter of at least
5/8" (16 mm), and a maximum length of
50' (15.2 m), sold separately, onto the
discharge outlet of the pump.
2
PRIMING WATER
Unscrew the priming plug.
Fill water through priming hole as the
picture shows to overflowing.
Tighten the priming plug.
3
OPERATING THE PUMP
To operate, plug the pump into a 115 V
GFCI outlet.
When the water level has been reduced
to approximately 1/16" (1.6 mm) you
MUST UNPLUG THE PUMP. DO NOT
RUN DRY.
4
ATTACHING THE SUCTION HOSE
TO STRAINER
Attach the clear suction hose to the suction
strainer.
Then, place the strainer in at least 1" (2.5
cm) of water at the lowest point to be
pumped.
1
NOTE:
• Place the strainer in at least 1" (2.54 cm) of water at the lowest point to be pumped. Make sure the connection
is airtight.
An air leak can cause the pump to run dry.
• Always ensure the washer in the hose bib is not damaged. An airtight seal is necessary for this pump to operate.
• Do not coil or kink the hose.
• If water is not pumping in 30 seconds, unplug the power cord and check the connection on the two ends of the
inlet hose to make sure there are no air leaks. Then, add water into the priming port again and repeat the process.
Non-submersible Transfer Pump Function
NO KINKS!
NO COILS!
NO KINKS!
NO COILS!
Suction
hose
Priming plug
Outlet
Suction
strainer
3/4" (19 mm) NH thread
Suction hose
Priming plug
Outlet
Suction
strainer
To Next Page
