model no. 062-3420-4 | contact us 1-800-689-9928
4

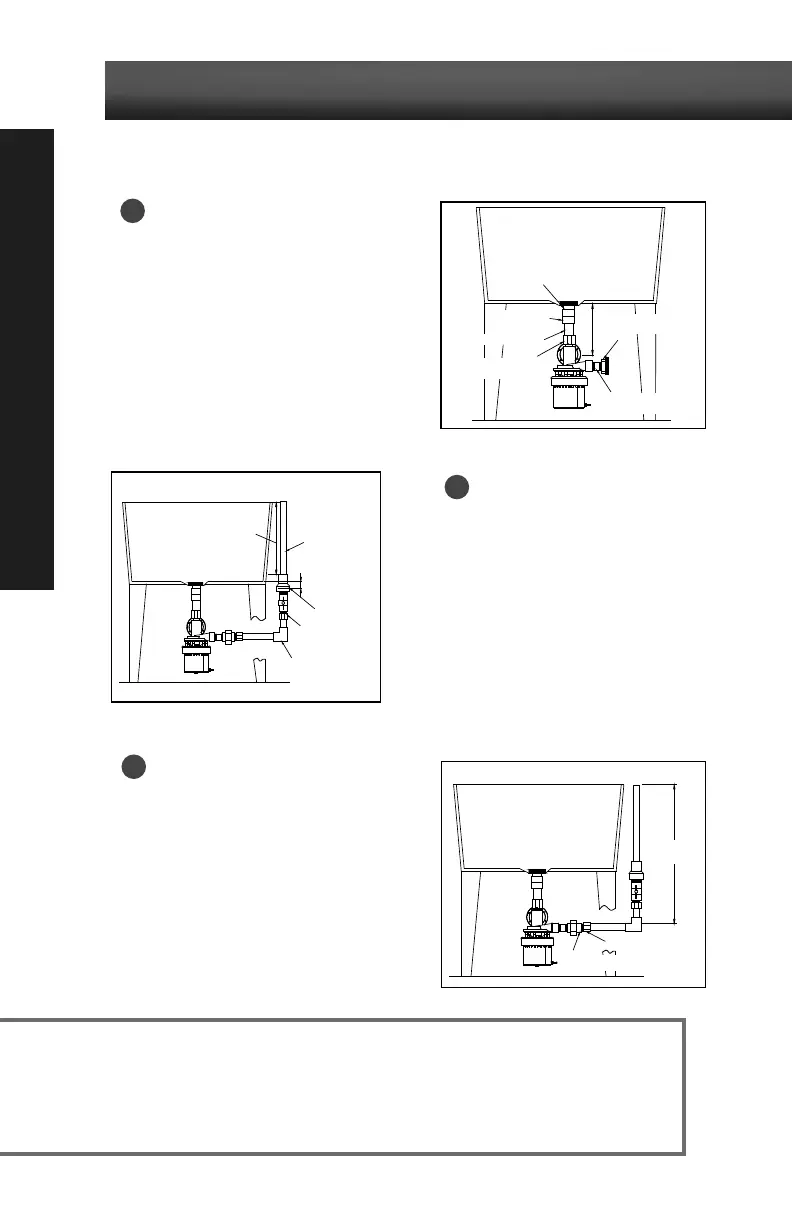

QUICK START GUIDE
DISCHARGE PLUMBING
To install the discharge plumbing
and check valve on the pump:
A. Use non-stick tape — NOT pipe
joint compound.
B. Tighten the pipe into the pump.
C. Install the check valve as close to
the pump as possible.
D. Drill an 1/8” (3 mm) anti-airlock
hole as shown. The hole must be in
the sump.
2
CONNCET DISCHARGE
Connect discharge pipe to building
drain. Total discharge height should be
less than 11’ (3.4 m).
3
INLET PLUMBING
Connect the pump to the sink tail pipe
using 1 1/2” (3.8 cm) pipe.
1
NOTE:
• A 5” (12.7 cm) space is needed from sink bottom to inlet for proper operation. Do NOT use plumber’s pipe
threading compound (pipe dope) on plastic pipe—it can damage the plastic, causing leaks and piping
failure, and voiding the warranty.
• Be sure check valve is installed with arrows pointing away from pump.
Sink tail pipe
1 1/2" (3.8 cm)
Female Adaptor
5in. Min.
1 1/4" (3.2 cm) NPT
Galvanized Union
1 1/2" (3.8 cm) PVC
1 1/2" (3.8 cm)
Male Adaptor
1 1/4" (3.2 cm) NPT
Galvanized Nipple
Check Valve
must be installed
below the bottom
level of the sink
Check Valve
1-1/4” Schedule
40 PVC Pipe
1-1/4” NPT x
1-1/4” Male
Adaptor
1-1/4” Socket
to Socket 90°
Elbow
Min.6.5ft.
Total discharge
heght shoule be
less than 11' (3.4 m).
1 1/4" (3.2 cm) NPT x
1 1/4" (3.2 cm) Male Adaptor
1 1/4" (3.2 cm)
NPT Galvanized Union
To Next Page
