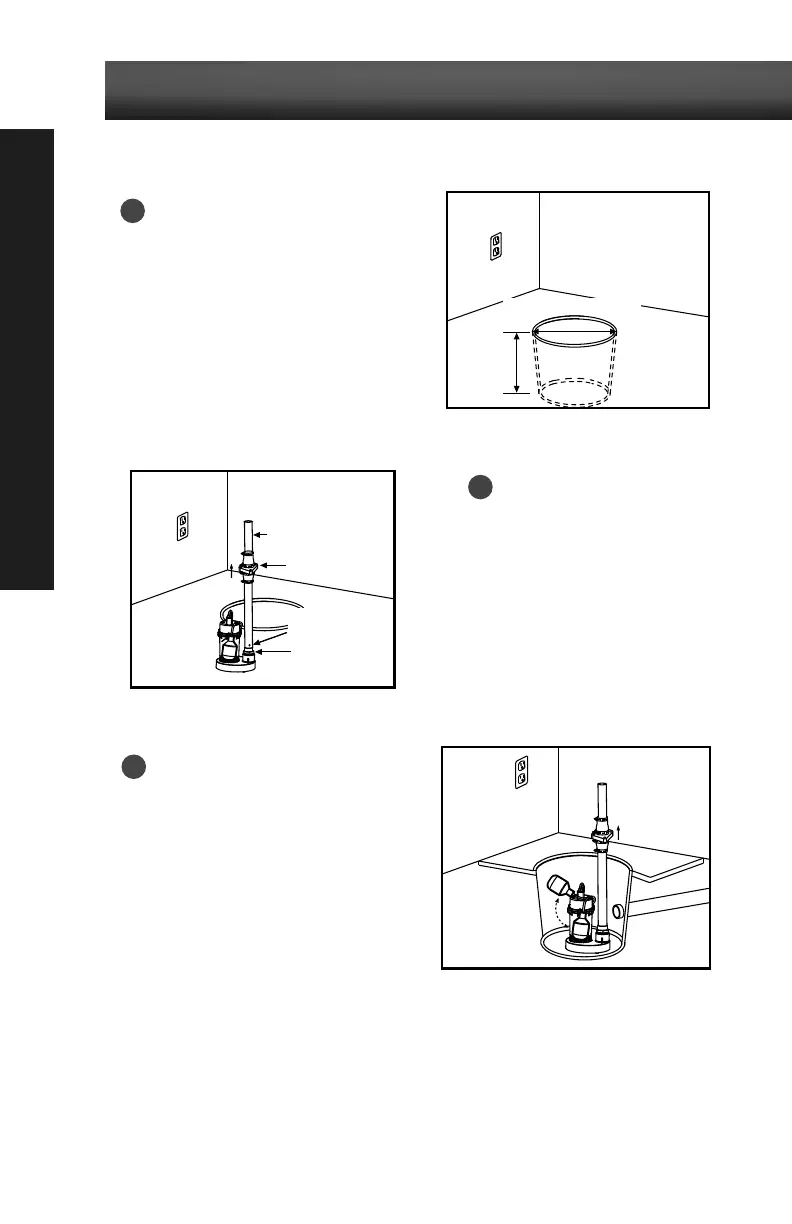

QUICK START GUIDE
DISCHARGE PLUMBING
To install the discharge plumbing
and check valve on the pump:
A. Use non-stick tape — NOT pipe
joint compound.
B. Tighten the pipe into the pump.
C. Install the check valve as close to
the pump as possible.
D. Drill an 1/8” (3 mm) anti-airlock
hole as shown. The hole must be in
the sump.
2
INSERTING THE PUMP
Place the pump in the sump, making
sure that nothing interferes with switch
operation (tether switch shown).
3
SUMP REQUIREMENTS
Pit must be covered. It is usually 14”
(35.6 cm) in diameter and 18” (45.7
cm) deep.
Install on a hard surface: brick, cement,
or concrete block; not sand, clay, or
gravel.
1
18"
(45.7 cm)
depth
Sump Pit
14" (35.6 cm) diameter
1 1/4" (3.2 cm) or
1 1/2" (3.8 cm)
Discharge Pipe
Check Valve
1/8" (3 mm)
Anti-airlock Hole
PVC Threaded
Adaptor
