ASSEMBLY INSTRUCTIONS

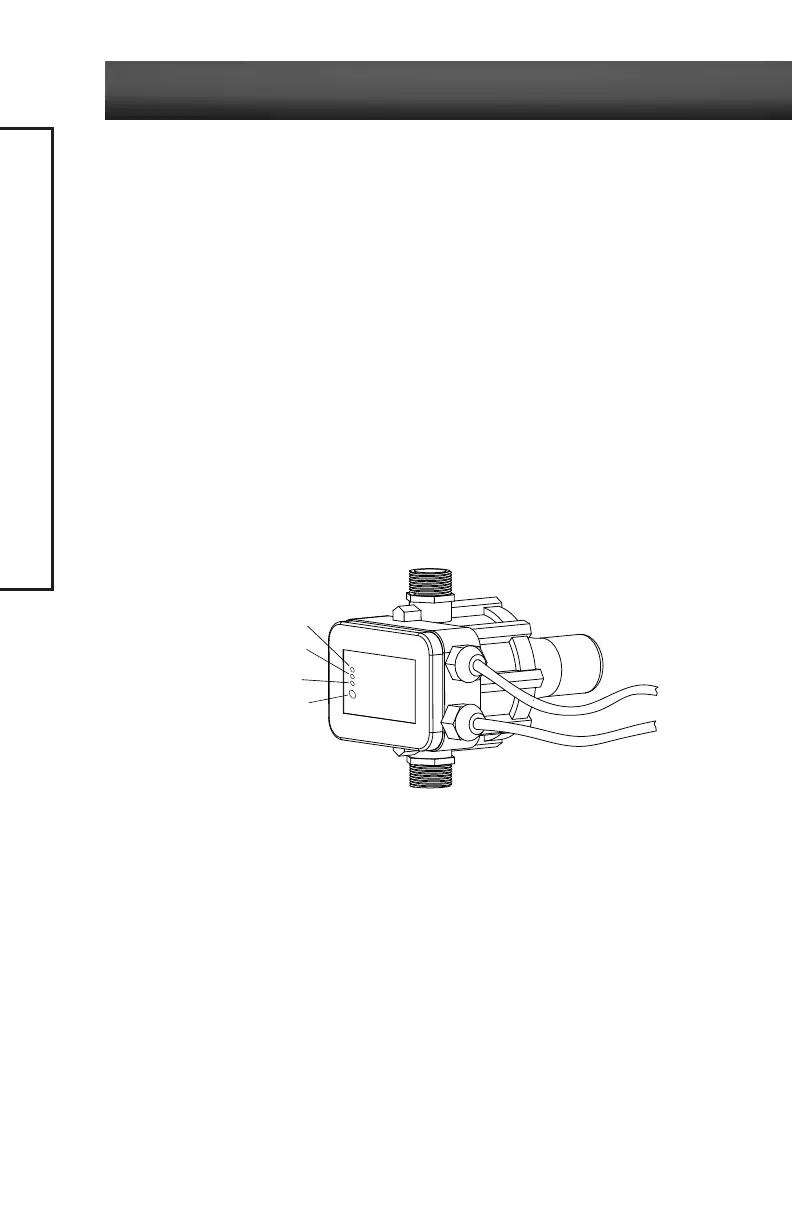

Figure 3: Pump Control Panel
AUTOMATIC PRESSURE CONTROLLER
The automatic pressure controller mounts on the pump. It protects against:
• Run-dry operation.
• Frequent starts caused by small water losses in the system.
• Pressure drop.
The automatic pressure controller features the following LEDs and controls:
• ‘Power on’ LED: indicates that the unit is electrically connected and that voltage is present. The
pump is ready to operate.
• ‘Pump on’ LED: indicates that the pump is running and actually pumping water.
• ‘Restart’ button: resets any safeties which have tripped and allows the pump to restart.
‘Failure’ LED
‘Restart’ button
‘Power on’ LED
‘Pump on’ LED
