ASSEMBLY INSTRUCTIONS / OPERATION / MAINTENANCE
model no. 068-1575-6 I contact us 1-800-689-9928
ASSEMBLY INSTRUCTIONS
STEP 9 ASSEMBLE THE DRAWERS (continued)
NOTE: At this step, DO NOT use power tool. Otherwise, product damage may be
caused. A magnetic cross-head screwdriver is preferred.
•

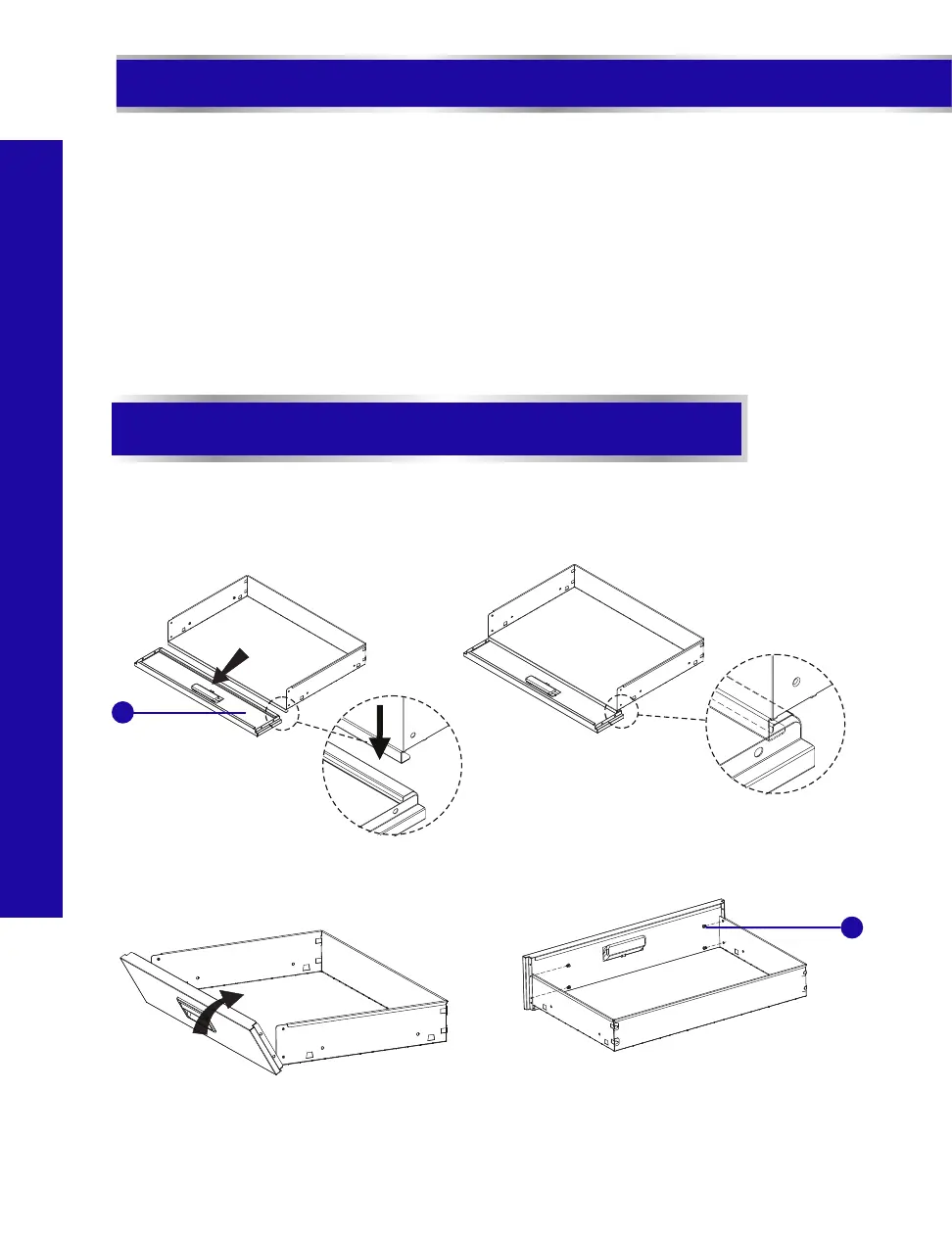

Lay down the drawer front panel (5 & 6 & 8) on its face with a soft mat underneath for
protection.
Put the drawer body's front onto the drawer front panel.
•
Slide the drawer body's front bottom bent edge into the bottom groove of the drawer
front panel.
•
•
Turn up the drawer front panel upright to 90°.
Fasten the drawer front panel and side panels together using four M4 x 6 cross-head
pan head tapping bolts (9).
•
•
Repeat the same procedure to assemble all drawers.
