ASSEMBLY INSTRUCTIONS

STEP 5 INSTALL THE SLIDES

STEP 4 ATTACH THE FRONT TOP BEAM

Stand up the cabinet.

•

Attach the front top beam (3) to the side panels (1 & 16) with four M6 x 16 hex socket head

screws (12). DO NOT tighten.

•

Screw four M6 x 16 hex socket head screws (12) through the side panels (1 & 16) into the

bottom panel (15). DO NOT tighten.

•

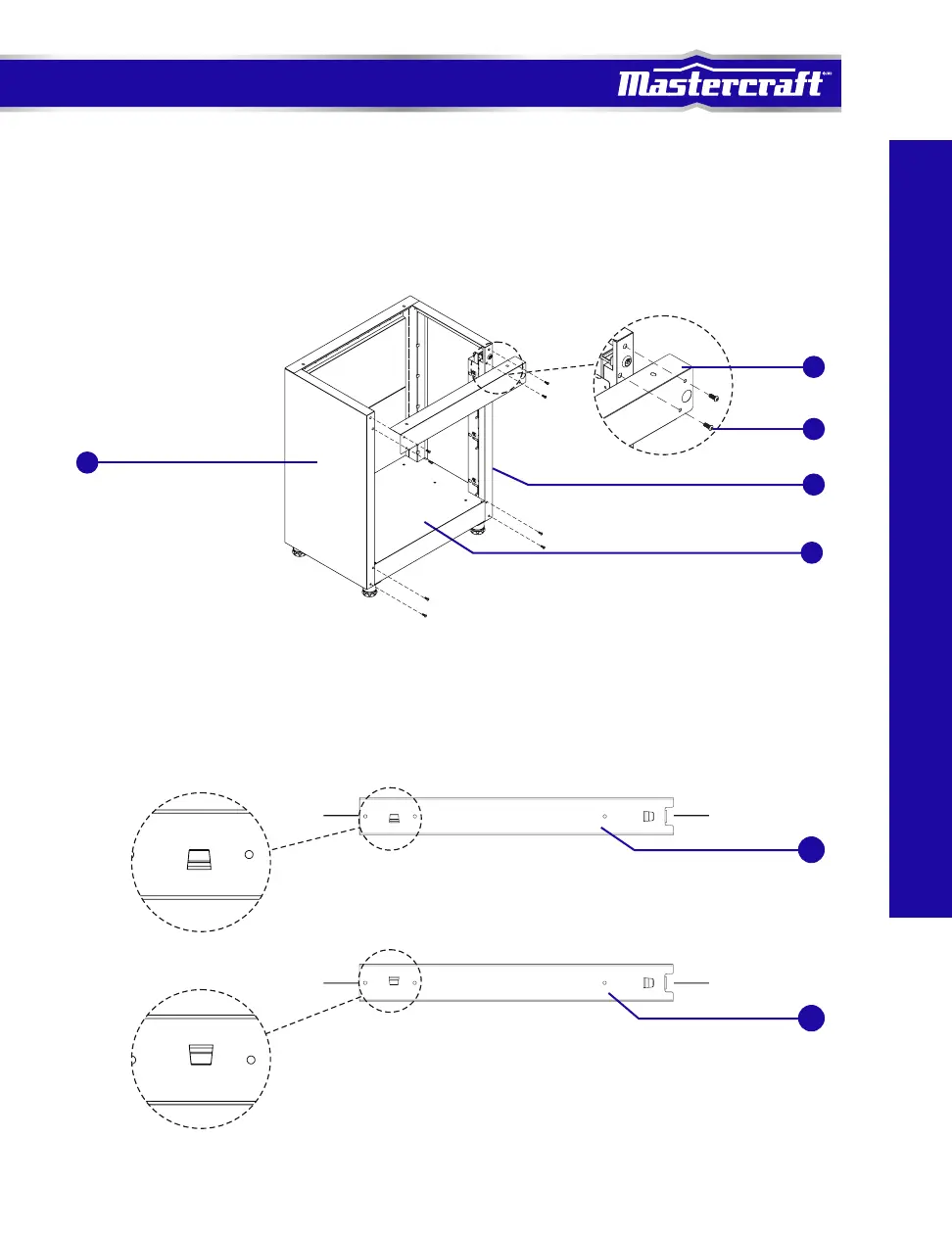

See the drawing below to distinguish left slide (14) and right slide (4).

Front

Back

Left slide

Right slide
