ASSEMBLY INSTRUCTIONS
STEP 6 ATTACH THE RUBBERWOOD TOP

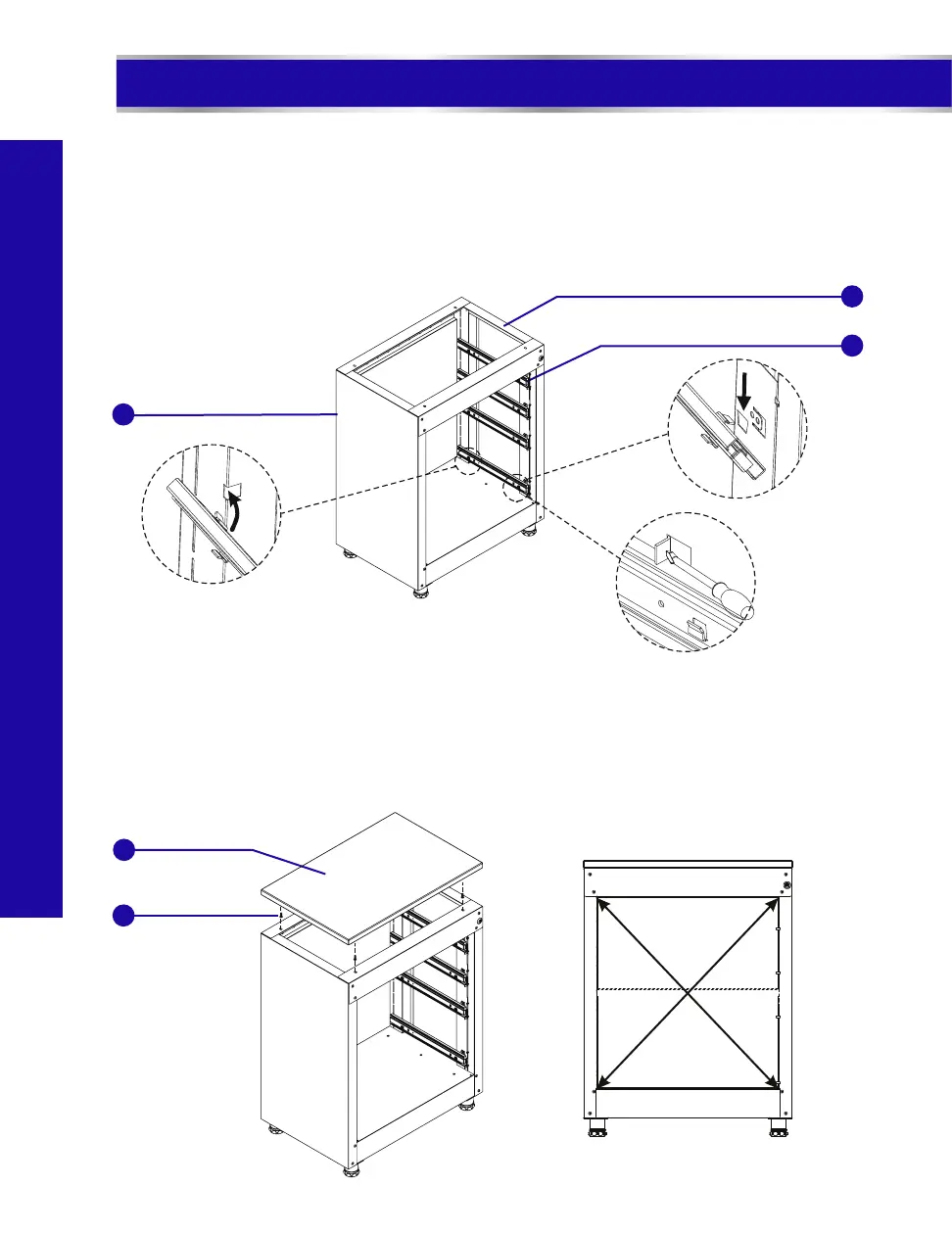

• Attach the rubberwood top (22) to the cabinet top by inserting four M6 x 16 hex socket head
screws (12) through the pre-drilled holes underneath. Tighten securely.
•
At the same time, square up the cabinet and make sure the inner diagonal lines are equal with
the help of a measuring tape. Tighten all screws on front and back.
4
22
12
16
•
Slide the back clip of the outer rail of a right slide (4) into the back slot at the right slide panel (1)
and slide the front clip of the outer rail into the slot at the front of the right slide panel (1).
•
Repeat the same procedure to install the other right slides (4) to the right slide panel (1).
•
Repeat the same procedure to install four left slides (14) to the left slide panel (16).
•
Bend the eight clips above the left and right slides outwards with the help of a straight screwdriver
so as to secure the slides.
1
2
3
1
(back slot)
(front slot)
