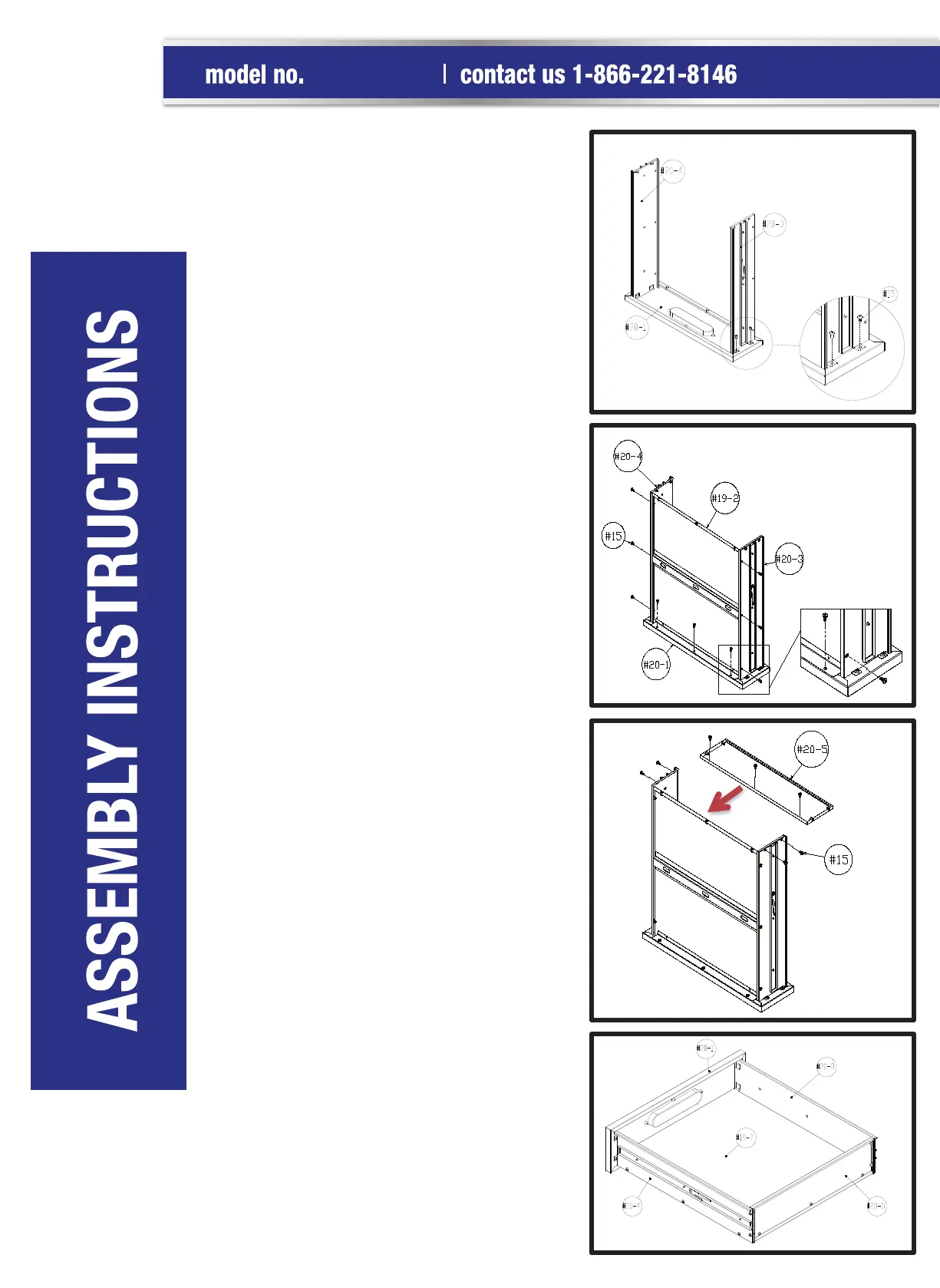

Step 8: Install (#20-3 & #20-4) Left & Right Small Drawer Side Panels.
Fit and attach the (#20-3 & #20-4) Left & Right Small Drawer Side
Panels to the (#20-1) Small Drawer Front Panel. Make sure the
(#20-3 & #20-4) Left & Right Small Drawer Side Panels are placed
in all the way making contact with the rear of the (#20-1) Small
Drawer Front Panel. Line up the screw holes and use (#15) Screw
to tighten (Fig H).
Step 9: Install (#19-2) Drawer Base Panel.
From above, fit and attach (#19-2) Drawer Base Panel between
the (#20-3 & #20-4) Left & Right Small Drawer Side Panels and
into the back of the (#20-1) Drawer Front Panel. Line up the
screw holes and use (#15) Screw to tighten (Fig I).
NOTE: Do not fully tighten the screws. Once you adjust all the
parts in position, tighten all screws.
Step 10: Install (#20-5) Small Drawer Back Panel.
Attach the (#20-5) Small Drawer Back Panel to the rest of
the assembled drawer. Line up the screw holes and use
(#15) Screws to tighten.
Repeat Steps 8-10 to assemble another drawer (Fig J).
Note: Each Drawer's maximum loading capacity is 30 lb (13.6 kg)
(Fig K).
Fig H
Fig I
Fig J
Fig K
10
068-7428-2
