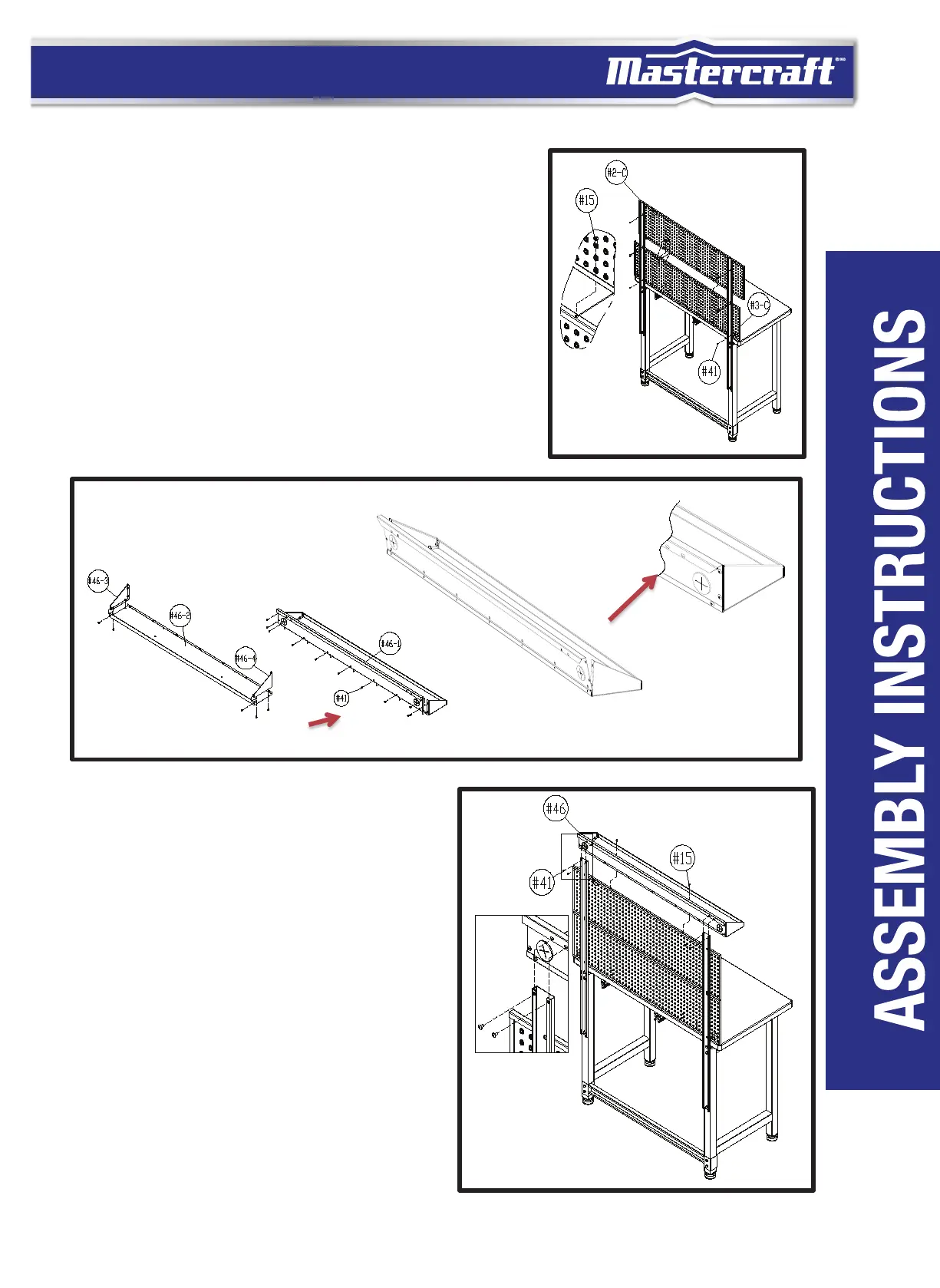

Step 5: Install (#3-C) Bottom Pegboard Panel and (#2-C) Top Pegboard Panel.
Step 6: Install (#46) Top Cantilever Shelf.
Attach (#3-C) Bottom Pegboard Panel along the back top edge of work centre
and against (#49) Pegboard Long Support Bar, line up the screw holes, use
(#41) Screw and (#21) Screwdriver to tighten. Use (#15) Screw to fasten
the (#2-C) & (#3-C) Top & Bottom Pegboard.
NOTE: Do not fully tighten the screws. This will help you make any
adjustments to alignment later.
Attach (#2-C) Top Pegboard Panel to the top of (#3-C) Bottom Pegboard
Panel and (#49) Pegboard Long Support Bar, line up the screw holes, use
(#41) Screw and (#21) Screwdriver to tighten (Fig E).
A). Attach the (#46-3) Top Cantilever Shelf Left Panel and the
(#46-4) Top Cantilever Shelf Right Panel to (#46-2) Top Cantilever
Shelf Base Panel. Use (#41) Screws to tighten.
NOTE: Do not fully tighten the screws. This will help you make any
adjustments for alignment later.
B). Make sure to slide the back panel underneath the edge of
(#46-2) Top Cantilever Shelf Base Panel. Use (#41) Screws to
tighten (Fig F).
Step 7: Install Assembled (#46) Top Cantilever Shelf to
work centre.
Attach assembled (#46) Top Cantilever Shelf to (#2-C) Top
Pegboard Panel and (#49) Pegboard Long Support Bars, line up
the screw holes, use (#41) Screw to tighten. Use (#15) Screw to
fasten the (#2-C) Top Pegboard and (#46) Top Cantilever Shelf
(Fig G).
NOTE: Do not fully tighten the screws. This will help you make any
adjustments for alignment later.
A
B
Fig E
Fig F
Fig G
9
