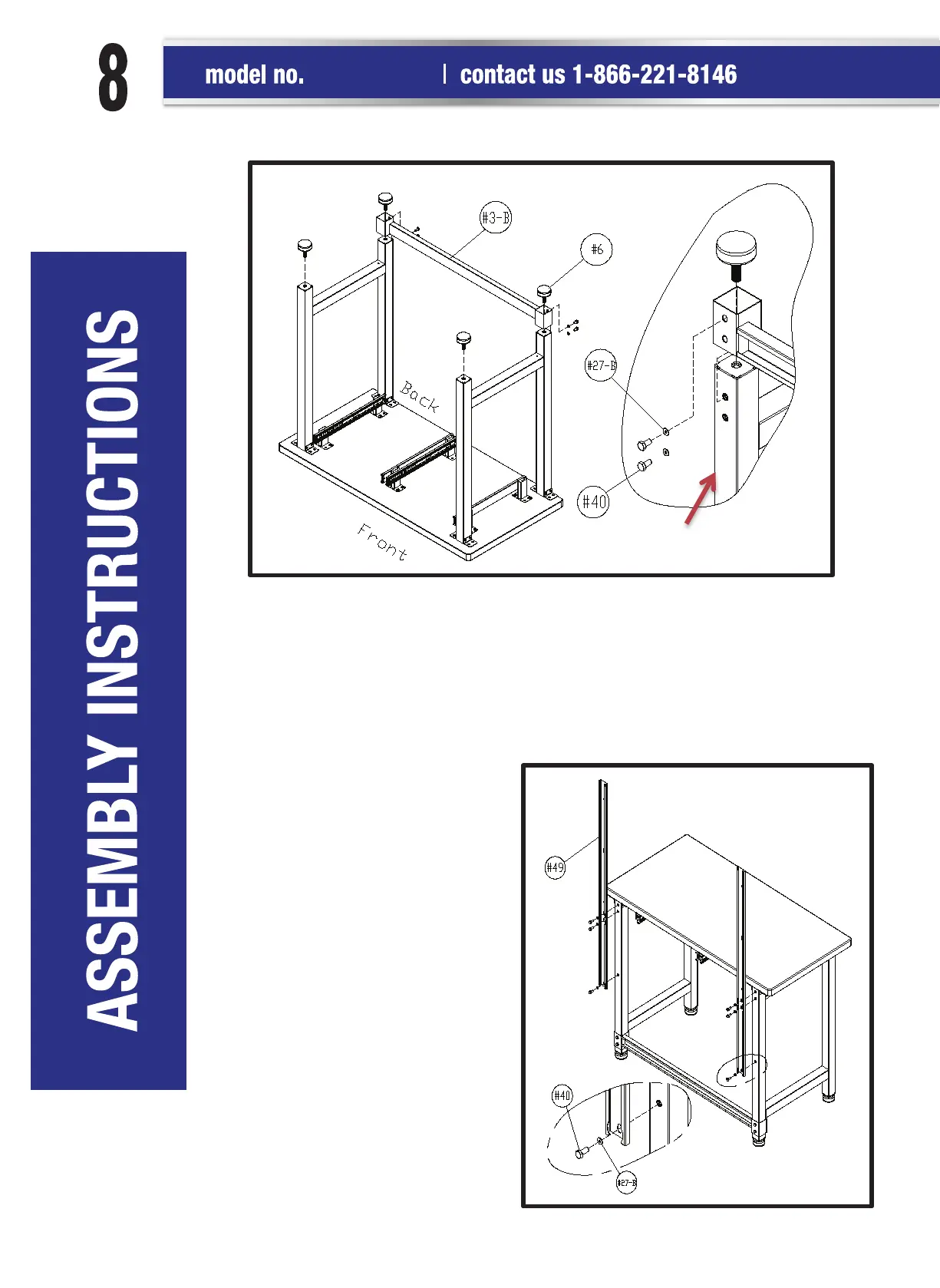

Step 3: Install (#3-B) Bottom Cross Bar and (#6) Levelling Feet.
Attach the (#3-B) Bottom Cross Bar to the back of (#5-B) Leg Piece, line up the screw holes, use (#40) Screw
with (#27-B) Washer and (#25) Wrench to tighten.
After installing (#5-B) Leg Pieces, attach (#6) Levelling Feet to (#5-B) Leg Pieces, use (#25) Wrench to tighten
(Fig C).
NOTE: Turn up the work centre once you finish this step.
Step 4: Install (#49) Pegboard Long Support Bar.
Attach (#49) Pegboard Long Support Bar to the back
of the work centre, line up the screw holes, use (#40)
Screw with (#27-B) Washer to tighten (Fig D).
NOTE: Do not fully tighten the screws. This will help
you make any adjustments to alignment later.
Back
Fig C
Fig D
068-7428-2
