model no. 054-6821-2 | contact us 1-800-689-9928
10
OPERATING INSTRUCTIONS
SELECT THE CUTTER BIT
This router comes with a 1/2” (12.7 mm) collet and 1/4” (6.4 mm) collet sleeve that accept cutter bits
with 1/2” (12.7 mm) and 1/4” (6.4 mm) shanks, respectively. The 1/2” (12.7 mm) collet is installed on
the tool, and the 1/4” (6.4 mm) collet sleeve can be installed inside the 1/2” (12.7 mm) collet.

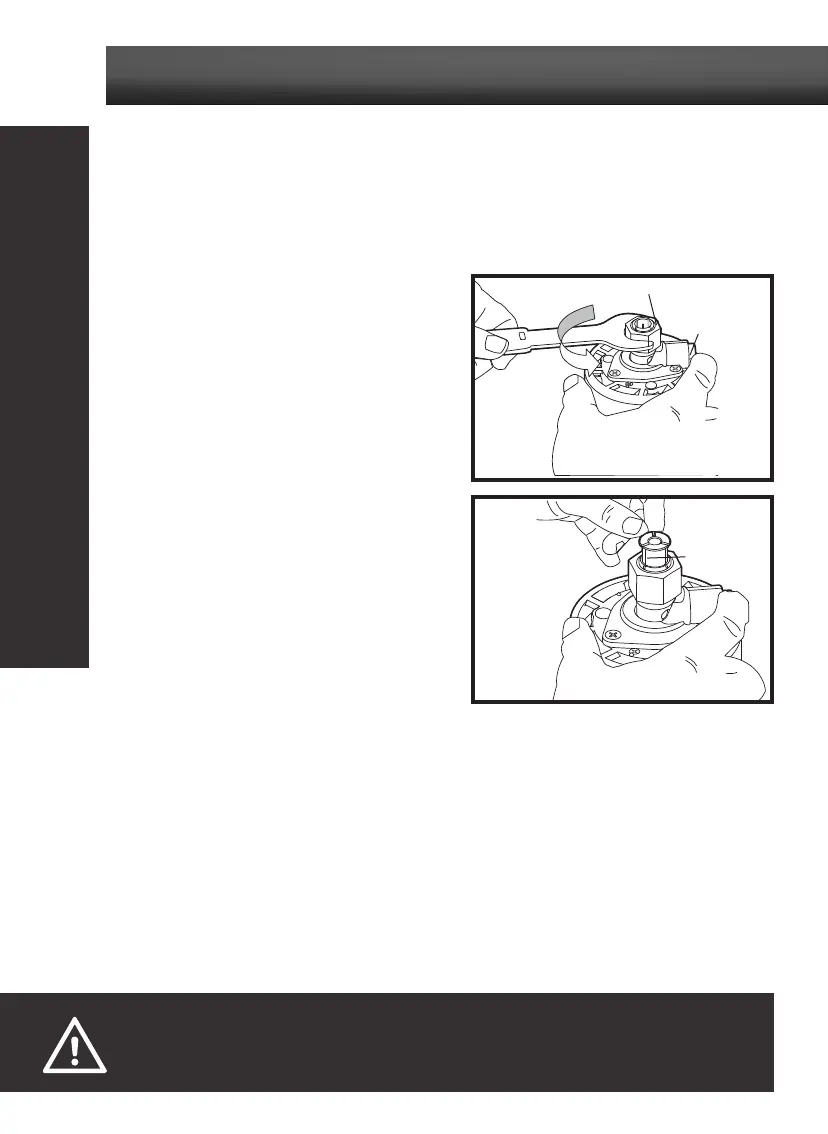

INSTALL THE 1/4” (6.4 mm) COLLET
SLEEVE (fig 1)
1. Disconnect the plug from the power supply.
2. Remove the router motor housing from the fixed or
plunge base.
3. Set the router motor upside down on its top cap with
the collet pointing up.
4. Press the spindle-lock button to engage and lock the
spindle shaft and the 1/2” (12.7 mm) collet. Place the
wrench (included) on the 1/2” (12.7 mm) collet and
turn it counter-clockwise to loosen the collet slightly
to accept the 1/4” (6.4 mm) collet sleeve (fig 1a).
5. Insert the 1/4” (6.4 mm) collet sleeve into the 1/2”
(12.7 mm) collet assembly as far as it will go (fig 1b).
6. With the 1/4” (6.4 mm) collet sleeve inserted and the
spindle-lock button pressed in to engage the shaft,
place the wrench on the 1/2” (12.7 mm) collet and
turn it clockwise until the 1/4” (6.4 mm) collet sleeve
is tightened in it.
REMOVE THE 1/4” (6.4 mm) COLLET SLEEVE
(fig 1)
1. Disconnect the plug from the power supply.
2. With the spindle-lock button pressed in to engage the shaft, place the wrench on the 1/2” (12.7 mm) collet
and turn it counter-clockwise to loosen the collet slightly to remove the 1/4” (6.4 mm) collet sleeve.
WARNING!
• Always turn the motor off and unplug the router before making any adjustments or installing accessories. Failure to unplug
the router could result in accidental starting which can cause serious personal injury.
FPO
OPERATING INSTRUCTIONS
fig 1a
fig 1b
1/2” (12.7 mm) collet
Spindle-lock
button
1/4” (6.4
mm) collet
sleeve
