Touch Point Commands
After a screen is accessed, navigation
within the screen is controlled with the touch
point commands. Execution is performed
by touching the screen in the areas outlined
with a highlighted bezel. In addition, there
are areas where sliding a nger up or down
over a particular place can adjust settings.

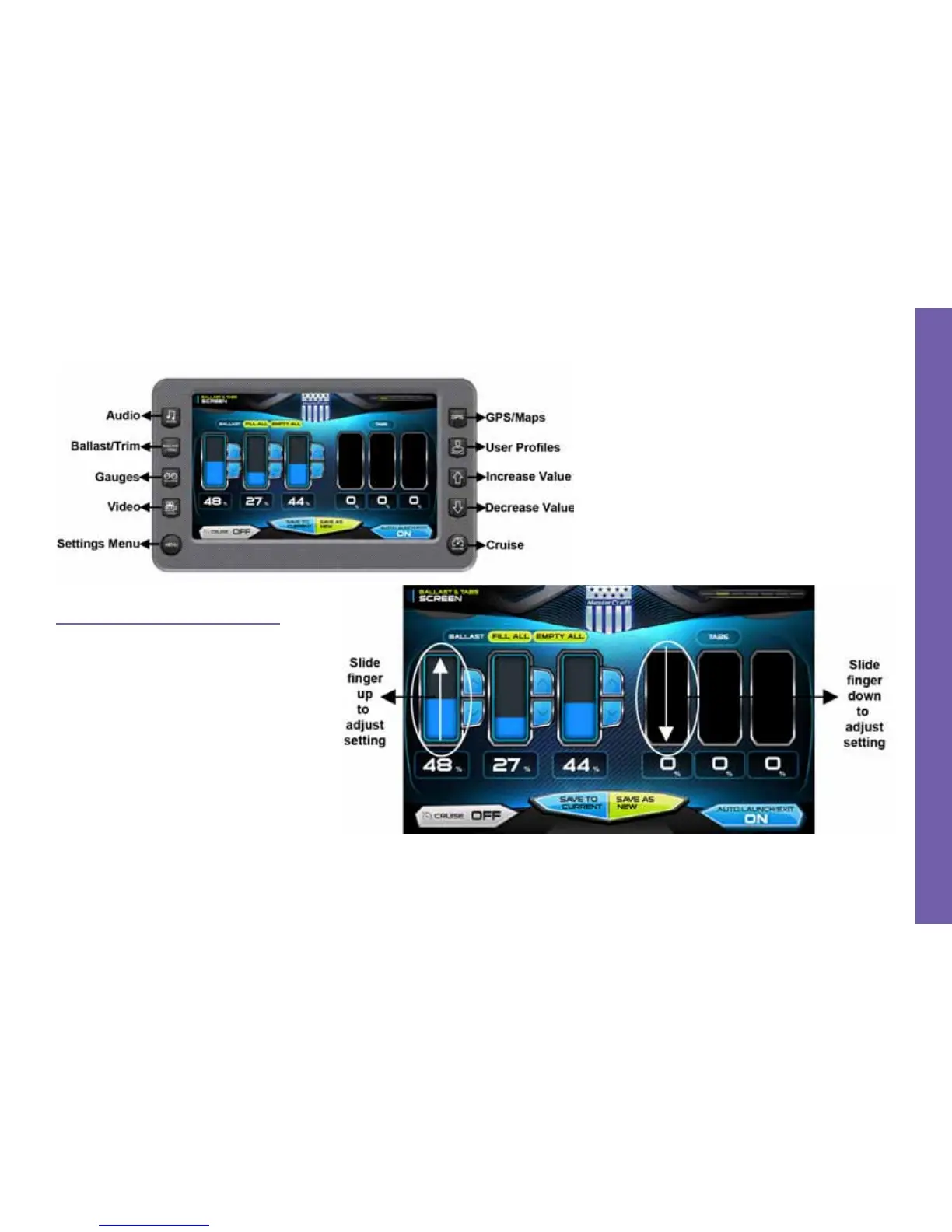

For example, on the Ballast and Tabs screen,
sliding the nger up on the inside of the tank
area adjusts the ballast setting.
There are also areas where sliding the
nger from side to side will scroll through
a list or change screens. More information
on that will follow.
Gauges & Video Screens • 2014 MasterCraft Owners Manual Page 3-17
G A U G E S & V I D E O S C R E E N S
