LED INDICATOR ON CHARGER
LED Indicator
Battery Pack
Status
Red
LED
Green
LED
Explanation
HI/LO TEMP.
(SEE MANUAL)
Hot/Cold battery ON -------
Charging will begin when battery
returns to 5°C (41°F)–40°C (104°F)
DEFECTIVE
BATTERY
Defective Flashing -------- Battery pack is defective
BATTERY
CHARGING
Charging -------- Flashing Charging
BATTERY
FULL
Fully charged -------- ON Charging is complete
TO ATTACH BATTERY PACK (fig 2)
1. Lock the trigger switch on the drill/driver by placing
the direction-of-rotation
(forward/centre-lock/reverse) selector in the centre
position.
2. Align the raised portion on the battery pack with the
groove on the bottom of the drill/driver, and then
attach the battery pack to the drill/driver as shown.
3. Make sure that the latch on the battery pack snaps
into place and that the battery pack is secured to
the drill/driver before beginning operation.
TO DETACH BATTERY PACK (fig 2)
1. Lock the trigger switch on the drill/driver by placing the direction-of-rotation selector
(forward/centre-lock/reverse) in the centre position.
2. Depress the battery-release button located on the front of the battery pack to release the battery pack.
3. Pull forward on the battery pack to remove it from the drill/driver.

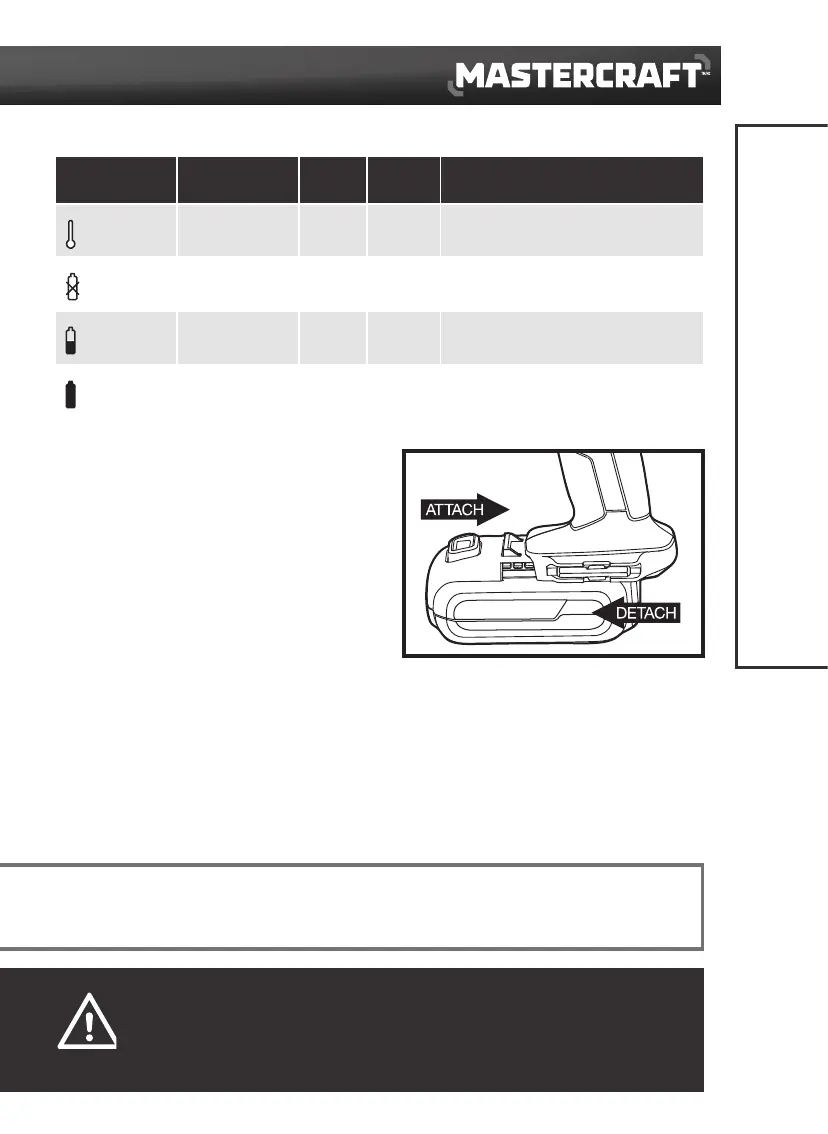

fig 2
CAUTION!
• Avoid the possibility of accidental starting. Always take care not to activate the trigger switch when you are
attaching the battery pack or performing other adjustments to the tool.
• Avoid the possibility of accidental starting. Always take care not to activate the trigger switch when you are
detaching the battery pack or performing other adjustments to the tool.
FPO
NOTICE: When placing a battery pack on the tool, be sure that the raised rib on the battery pack aligns with the groove on the
cordless drill/driver and the latches snap into place properly. Improper assembly of the battery pack can cause damage to internal
components.
