model no. 054-7527-8 | contact us 1-800-689-9928
12
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
TO ATTACH BATTERY PACK (fig 1)
1. Lock the variable-speed trigger switch on the
cordless drill/driver by placing the direction-of-
rotation selector in the OFF (centre) position.
2. Align the raised portion on the battery pack with
the groove on the bottom of the cordless drill/
driver, and then attach the battery pack to the
cordless drill/driver as shown.
3. Make sure that the latch on the battery pack
snaps into place and that the battery pack is
secured to the cordless drill/driver before beginning operation.
TO DETACH BATTERY PACK (fig 1)
1. Lock the variable-speed trigger switch on the cordless drill/driver by placing the direction-of-
rotation selector in the OFF (centre) position.
2. Depress the battery-release button located on the front of the battery pack to release the battery
pack.
3. Pull forward on the battery pack to remove it from the cordless drill/driver.
NOTICE: When placing a battery pack on the tool, be sure that the raised rib on the battery pack aligns with the groove on the
cordless drill/driver and the latches snap into place properly. Improper assembly of the battery pack can cause damage to internal
components.
WARNING!
• Carefully read the Instruction Manuals for your Mastercraft
®
Rechargeable Battery (054-3124-0, 054-7553-4,
054-2434-8, 054-7557-6) and Mastercraft
®
Battery Charger (054-3126-6, 054-7559-2) for safety and operation
instructions.
CAUTION!
• Avoid the possibility of accidental starting. Always take care not to activate the variable-speed trigger switch when you are
attaching or detaching the battery pack or performing other adjustments to the tool.
FPO

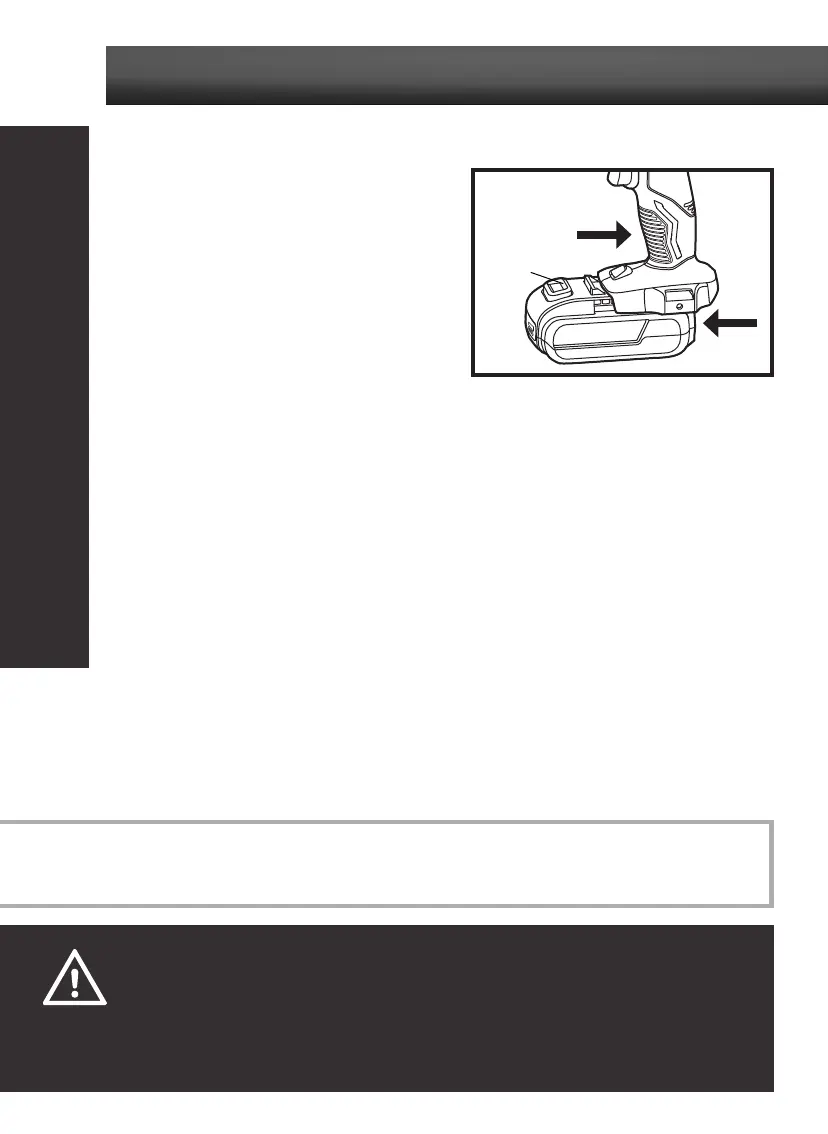

fig 1
Battery-release
button
ATTACH
DETACH
