20V max* LITHIUM-ION CORDLESS DRILL/DRIVER - 054-3118-6
OPERATING INSTRUCTIONS
Trigger switch (g 2)
To turn the drill/driver ON, depress the trigger
switch. To turn it OFF, release the trigger switch.
Variable speed (g 2)
The variable-speed trigger switch delivers higher
speed with increased trigger pressure and lower
speed with decreased trigger pressure.
Direction-of-rotation selector
(forward/centre-lock/reverse)
(g 3-4)
The direction of rotation of the bit is reversible and
is controlled with a selector located above the
trigger switch. With the drill/driver held in normal
operating position:
Position the direction-of-rotation selector to the left
of the tool for forward rotation. The forward/reverse
LED indicator the drill/driver will shine green (g 4).
Position the direction-of-rotation selector to the right
of the tool for reverse rotation. The forward/reverse
LED indicator on the drill/driver will shine red (g 4).
Position the direction-of-rotation selector in the
centre to lock the tool off.
NOTE: To prevent gear damage, always allow the
drill/driver to come to a complete stop before
changing the direction of rotation.
NOTE: The drill/driver will not run unless the
direction-of-rotation selector is engaged fully to
the left or right.

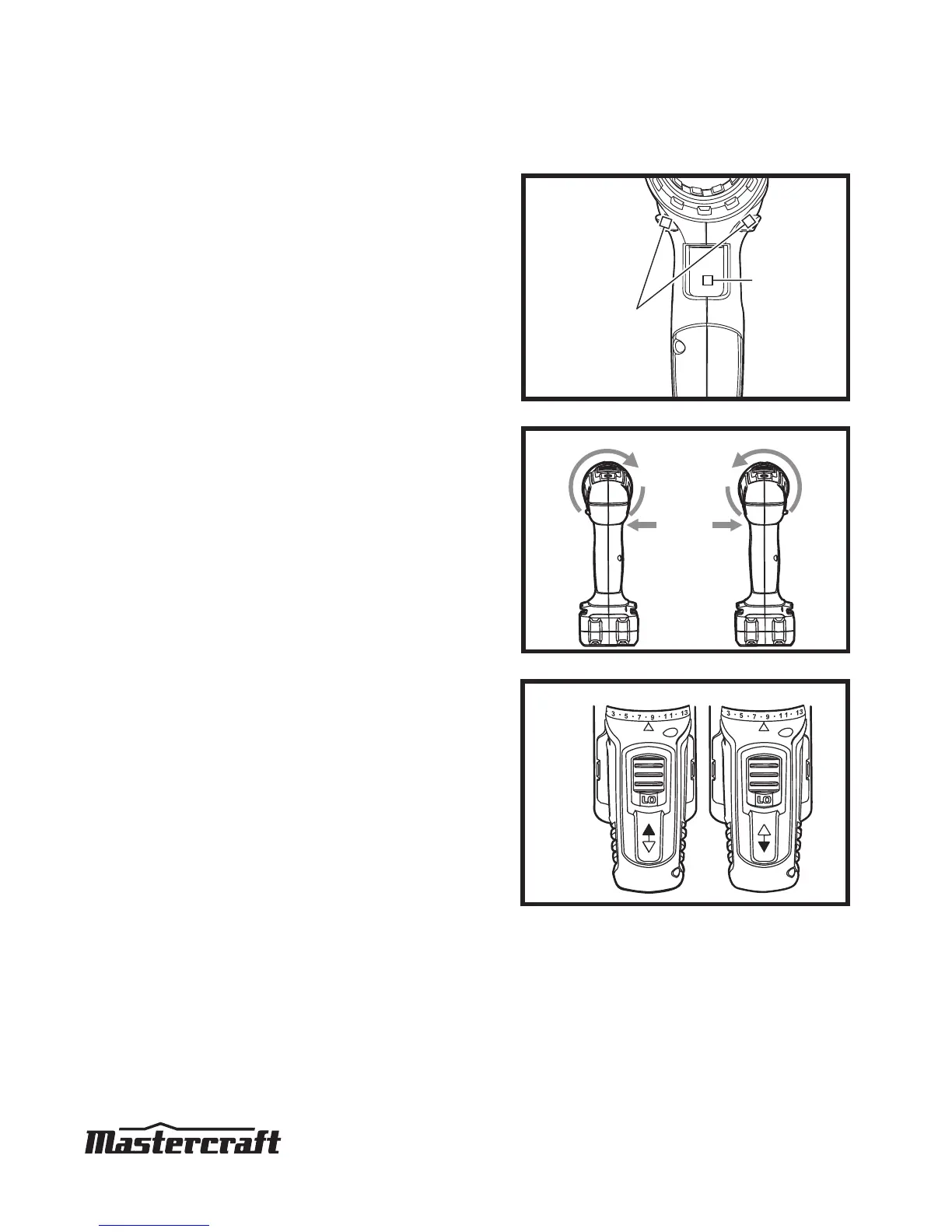

fig 2
fig 3
fig 4
Direction-of-rotation
selector
Variable speed
trigger switch
Forward Reverse
