20V max* LITHIUM-ION CORDLESS DRILL/DRIVER - 054-3118-6
12
OPERATING INSTRUCTIONS
LED Worklight
(g 5)
The LED worklight, located on the base of the
cordless drill/driver, will illuminate when the trigger
switch is depressed. This provides additional light
on the surface of the workpiece for operation in
lower light situations. The LED worklight will turn
off when the trigger switch is released.
Electric brake
To stop the tool, release the trigger switch and
allow the chuck to come to a complete stop. The
electric brake quickly stops rotation. This feature
engages automatically when you release the trigger
switch.
Keyless chuck
(g 6)
The arrows on the chuck indicate the direction of
rotation of the body of the chuck to: GRIP (tighten)
or OPEN (release) the jaws of the chuck on the drill
bit.
Bit storage
(g 7)
When not in use, the bits may be stored on either
side of the cordless drill/driver by snapping the bit
into place in one of the bit clips.

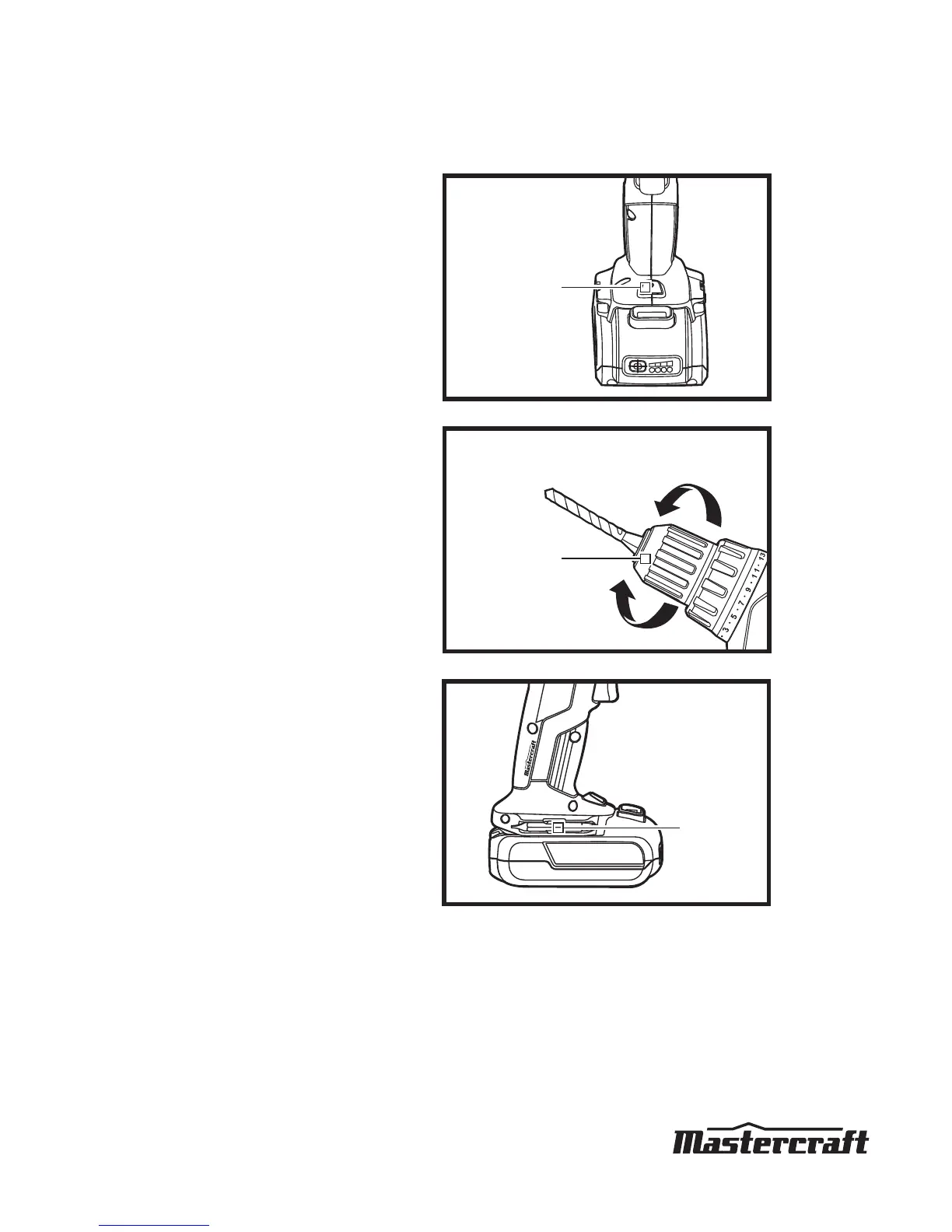

fig 5
fig 6
fig 7
LED Worklight
Keyless chuck
GRIP
RELEASE
Bit clip
