LOCK-OFF SWITCH
This tool is equipped with a lock-off switch
that will prevent inadvertent operation of
the tool. Place the lock-off switch (1) in the
middle position to activate (Fig. 1) the lock-
off feature. The lock-off switch should
always be used during the following
situations:
● Removing a bent or jammed nail
● When tool is left unattended
ADJUSTING DEPTH-OF-DRIVE
The 4-stage depth-of-drive dial allows the
user to easily select the desired nail drive
depth (Fig. 2).
NOTE: The depth to which the nail is
driven will depend upon two factors:
a) The longer the nailer is allowed to
hammer, the deeper the nail will be
driven.
b) With the no-mar tip installed, the nail
depth will be reduced.
Depth Setting Ranges
Position
Depth range
1
Nail head counter sunk by 1 mm
to raised 1 mm.
2
Nail head flush with the surface
to raised 2 mm.
3
Nail head raised 3–5 mm above
surface.
Suitable for hanging heavy
objects.
4
Nail head raised 8–10 mm above
surface.
Suitable for hanging lighter
objects.
To set the nail depth, press dial inward (1)
and rotate it to the desired position (Fig. 3).
ASSEMBLY AND OPERATION

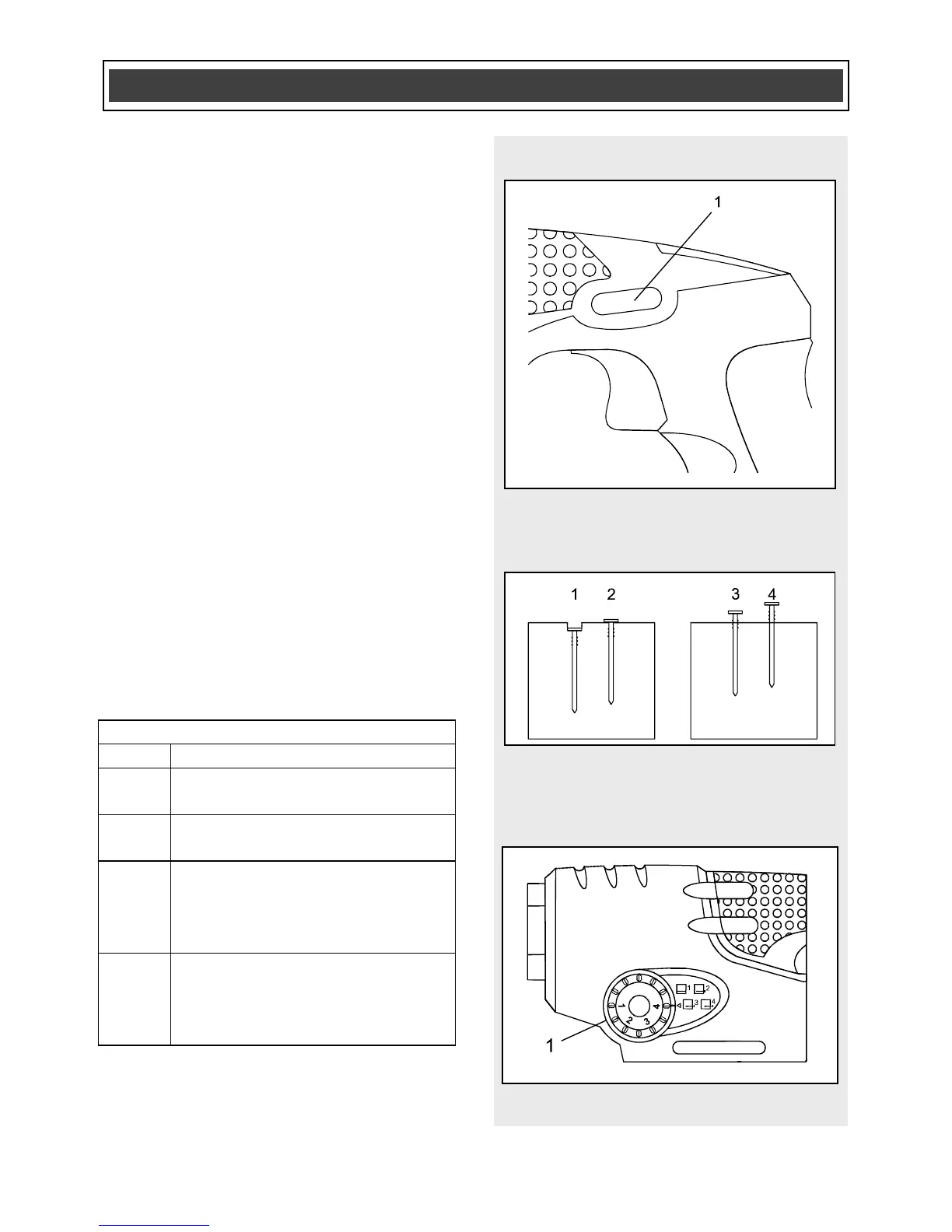

Fig. 1
Fig. 3
Fig. 2
