2017 OWNERS MANUAL / 68

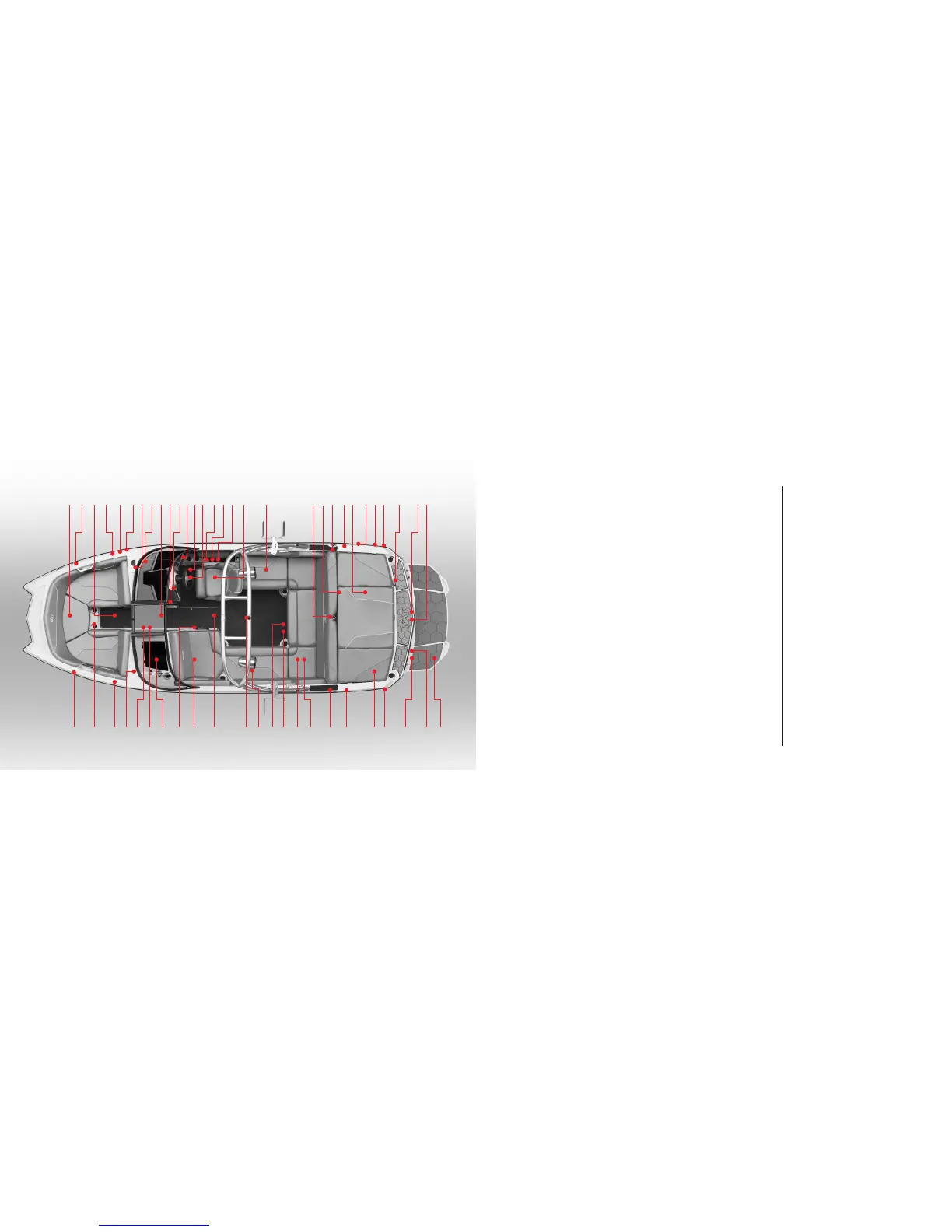

01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 17 1816 19 20 21 22 23
24
25 2726 28 29 30
31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 48 49 51 52 5347
50
FEATURES
01. Anchor storage compartment
02. Navigational light
03. Access to forward bilge pump
04. Bilge thru-hull
05. Ballast thru-hull vents
06. Cleat (where equipped)
07. GPS antenna
08. Circuit breaker panel (access under helm)
09. Walk-thru door (where equipped)
10. Mirror
11. Stereo + iPod interface (on dash, where
equipped)
12. Instrument panel (see Video Screen and
Switches information for details)
13. Heater vent (on kick panel, where equipped)
14. Tilt steering wheel
15. Shifter/throttle control
16. Emergency safety stop switch
17. Fire suppression unit manual override
18. Adjustable driver’s seat
19. Cooler (beneath seat)
20. Ski pylon (where equipped)
21. Sea strainer (where equipped)
22. Fuel tank fill
23. Ballast thru-hull vent
24. Automatic fire extinguisher (inside engine
compartment)
25. Cleat (where equipped)
26. Ballast thru-hull vent
27. Bilge thru-hull vent
28. Transom stereo remote (where equipped)
29. Attitude adjustment plate (where equipped,
beneath swim platform)
30. Transom drain plug
31. Cleat (where equipped)
32. Courtesy lights
33. Sirius radio antenna (where equipped)
34. Amp
35. Ski locker + access to center tank tsunami
pumps
36. Heater vent (where equipped)
37. Glove box
38. Subwoofer (where equipped)
39. Hand-held fire extinguisher (beneath
observer seat)
40. Center drain plug (accessible under carpet)
41. Tower tow rope attachment and light
42. Tower (speakers, where equipped)
43. 12-volt receptacle
44. Courtesy light
45. Battery ON-OFF switch (where equipped)
46. Battery(ies)
47. Ballast thru-hull vent
48. Cleat (where equipped)
49. Storage compartment + access to port side
tsunami pump
50. Ballast thru-hull vent
51. NXT Wake Shaping devices (two devices,
one on each side)
52. Engine exhaust (two, one on each side
beneath swim platform)
53. Swim platform
SPECIFICATIONS
Length of Boat 20’0”
Width Amidship 91”
Boat Weight 3,950 lbs.
Length of Boat w/Platform 21’ 8”
Towing Length 25’ 7”
Towing Width 100”
Fuel Capacity 44 gallons
Maximum Capacity 11 people
or 1804 lbs.
Bow: 4 people or 600 lbs.
Weight must be evenly distributed.
Storage space is located under:
Observer’s seat, bow seating, aft and wrap-
around seating, port and starboard sun pads.
NXT20

MasterCraft NXT20 2017 Specifications

General

Wakeboard Tower	Yes
Stereo System	Yes
Draft	27 in
Seating Capacity	11 people
Length Overall	20 ft
