2017 OWNERS MANUAL / 144
Tracks List—Lists all the tracks saved on the device.
Edit Track Name—Enables the user to edit the Track Name.
Track Enable—Shows or hides the selected Track.

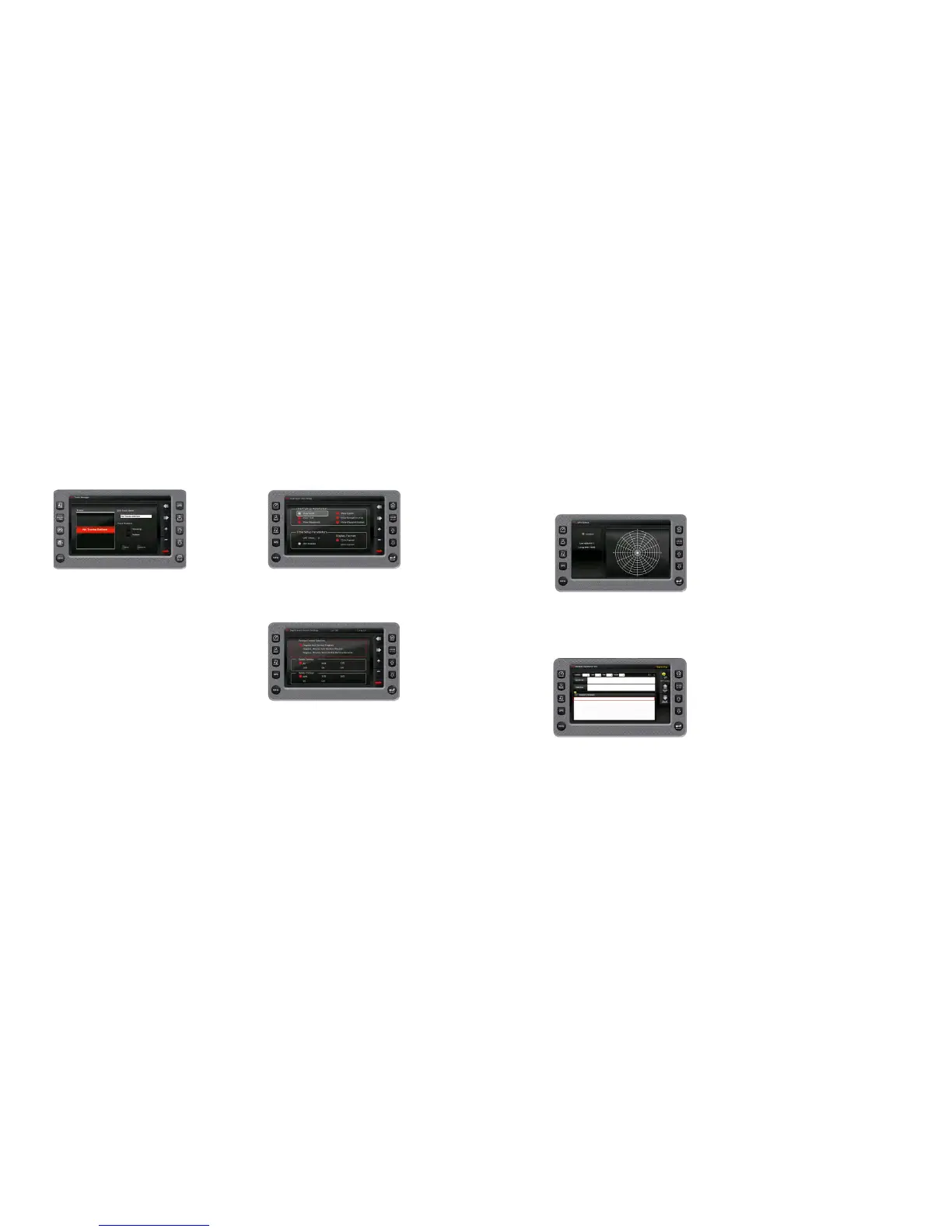

Chart and Time Set-up
This menu option allows the set-up for viewing options for the GPS
Display.
Chart Set-up Parameters—Use the [PLUS] and [MINUS] soft keys
to select the information you want displayed on the GPS screen.
Time Set-up Parameters—This is used to select correct time zone
and clock mode for either 12-hour or 24-hour time formats. You can
also enable DST (Daylight Savings Time) by using the [PLUS] or
[MINUS] soft keys to select the box.
Depth and Position Settings
This feature allows for the definition of the amount of detail to
display for longitude and latitude information on the GPS map and
depth display.
GPS Status
Shows the location of the satellites
ENGINE DIAGNOSTICS
When choosing this selection, the display will query the engine’s
ECU, and provide feedback on any diagnostic codes that have been
activated and stored in the ECU for service needs.
Engine Diagnostics–Sof Key Commands
GET FAULTS—Queries the engine’s ECU for feedback on
diagnostic codes that have been activated and stored in the ECU
for service needs.
UP—DOWN—Navigates through the fault list.
The following is a list of field definitions contained on the ENGINE
DIAGNOSTICS screen:
Source—Identifies the component having the fault: engine 1, 2
or auxiliary.
Status—Indicates whether the fault has been corrected.
SPN—“Suspect parameter Number”—fault code. If not translated
into text by the display, see an authorized MasterCraft dealer.
FMI—“Failure Mode Indicator’’—fault code. The FMI is defined
by SAW J1939. If not translated into text, see an authorized
MasterCraft dealer.
Count—The number of times the event has been flagged.
Description—Most common SPNs and FMIs have text for the
description stored in the display. If there is no text, then this SPN
and FMI must be defined by referring to the engine manufacturer or
the SAE J1939 standard.
NOTE: This field is only used with certain models of engines.
Correction—Suggested action for correction.
