Page 9
INSTALL THE LOWER HANDLE
1. Pull up on the handle holes to release the
lower handles.
2. Fold the lower handle up until the handle
pins lock into position.
Door rod
Door rod
Rear discharge flap
Hooks
3
1. Remove the mulch plug.
2. Remove the side discharge chute.
3. Open the rear discharge fIap and hold it.
4. Hold the the grass catcher by its handle
and engage the hooks on the door rod.
5. Close the rear discharge fIap.

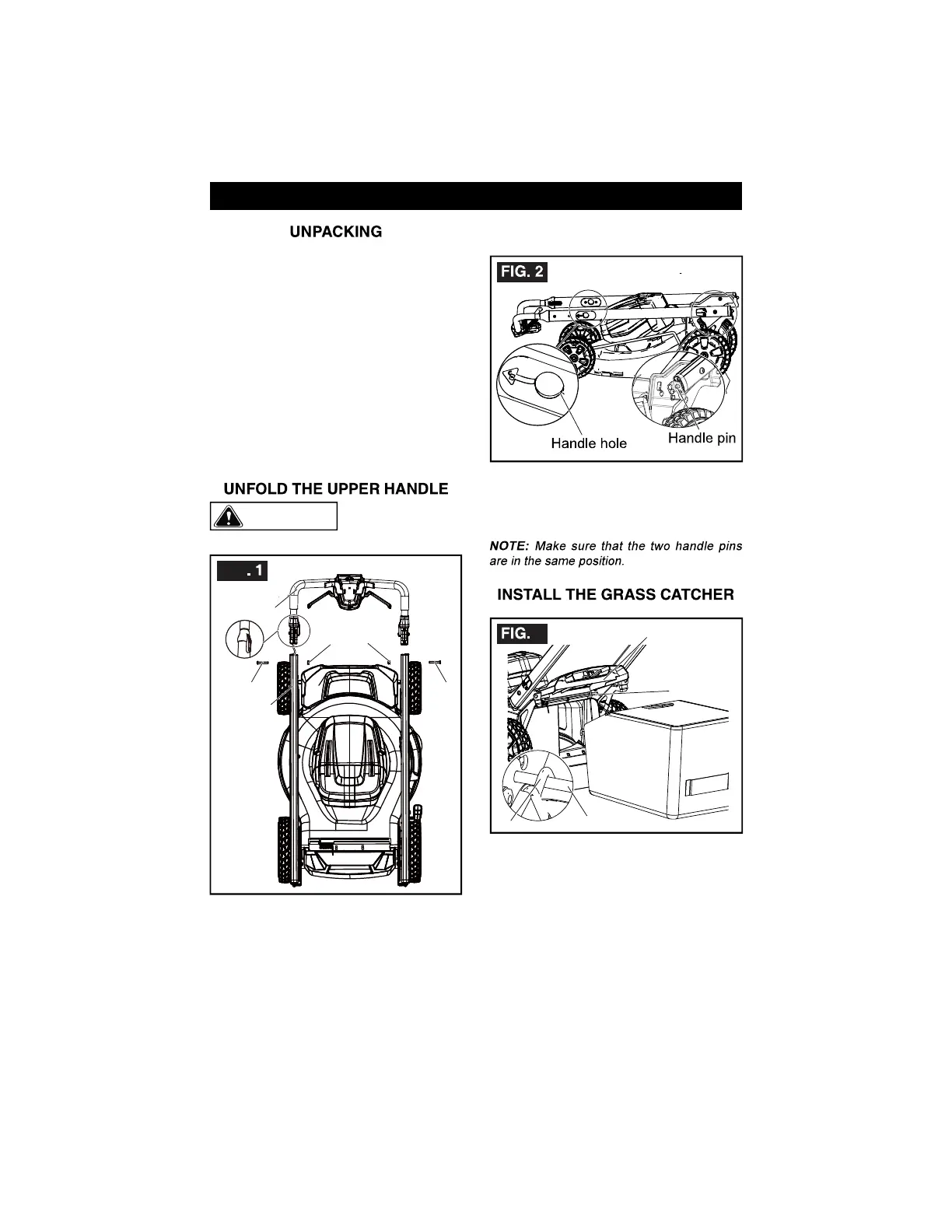

ASSEMBLY
This product requires assembly.
• Carefully remove the product and any
accessories from the box. Make sure that all
items listed in the package contents section
are included.
• Inspect the product carefully to make sure
no breakage or damage occurred during
shipping.
Do not discard the packing material until you
have carefully inspected and satisfactorily
operated the product.
• If any parts are damaged or missing, please
call
1-844-MSTR4CE (844-678-7423)
for
assistance.
WARNING
Do not damage the
cable while installing the upper handle.
1. Place the mower upright in vertical position.
2. Remove the packing material from the
cable.
3. Remove the rubber edge guard from the
upper handle.
4. Insert the upper handle into the lower
handle.
5. Put the bolts through the holes and
tighten with the nuts, using a Philips head
screwdriver (not included).
Lower handle
Upper handle
Bolt
Bolt
Nuts
To Next Page
