WARNING
• If the battery pack or charger is
damaged, replace the battery pack or the
charger.
• Stop the machine and wait until the
engine stops before you install or remove
the battery pack.
• Read, know, and do the instructions in
the battery and charger manual.
1. Open the battery door.
2. Align the lift ribs on the battery pack with
the grooves in the battery compartment.
3. Push the battery pack into the battery
compartment until the battery pack locks into
place.
4. When you hear a click, the battery pack is
installed.
5. Close the battery door.
REMOVE THE BATTERY PACK
1. Open the battery door.
2. Push and hold the battery release button.
3. Remove the battery pack from the ma-
chine.

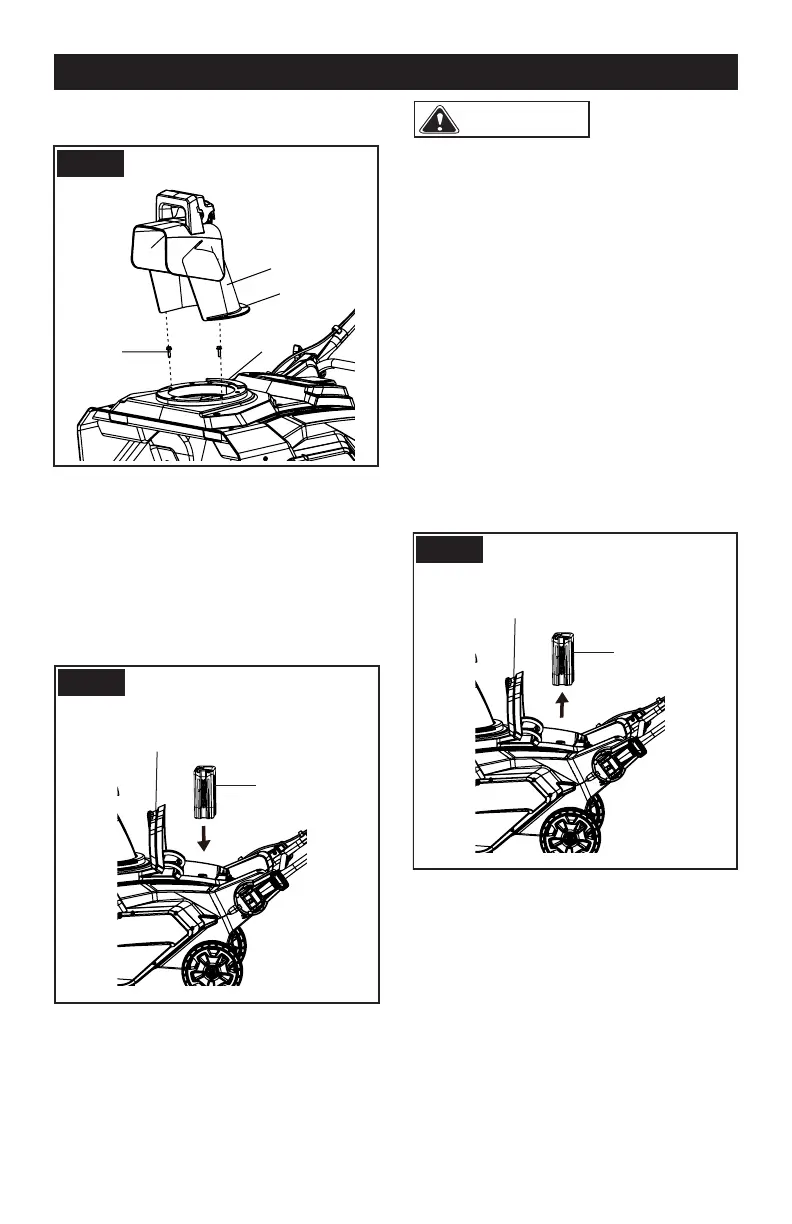

INSTALL THE CHUTE DEFLECTOR
FIG. 4
Groove
Discharge
chute
Slot
Screw
1. Align the grooves of the discharge chute
with the slot on the chute housing.
2. Push the discharge chute into position.
3. Tighten the discharge chute screws with
a Phillips head screw driver to lock the dis-
charge chute.
INSTALL THE BATTERY PACK
ASSEMBLY
FIG. 5
Battery
pack
Battery
door
FIG. 6
Battery
pack
Battery
door
