MasterForce 270-3282 - Assembly

Page 9
ASSEMBLY
UNPACKING
This product requires assembly.
• Carefully remove the product and any
accessories from the box. Make sure that
all items listed in the package contents
section are included.
• Inspect the product carefully to make sure
no breakage or damage occurred during
shipping.
• Do not discard the packing material
until you have carefully inspected and
satisfactorily operated the product.
• If any parts are damaged or missing, please
call 1-844-MSTR4CE (844-678-7423) for
assistance.

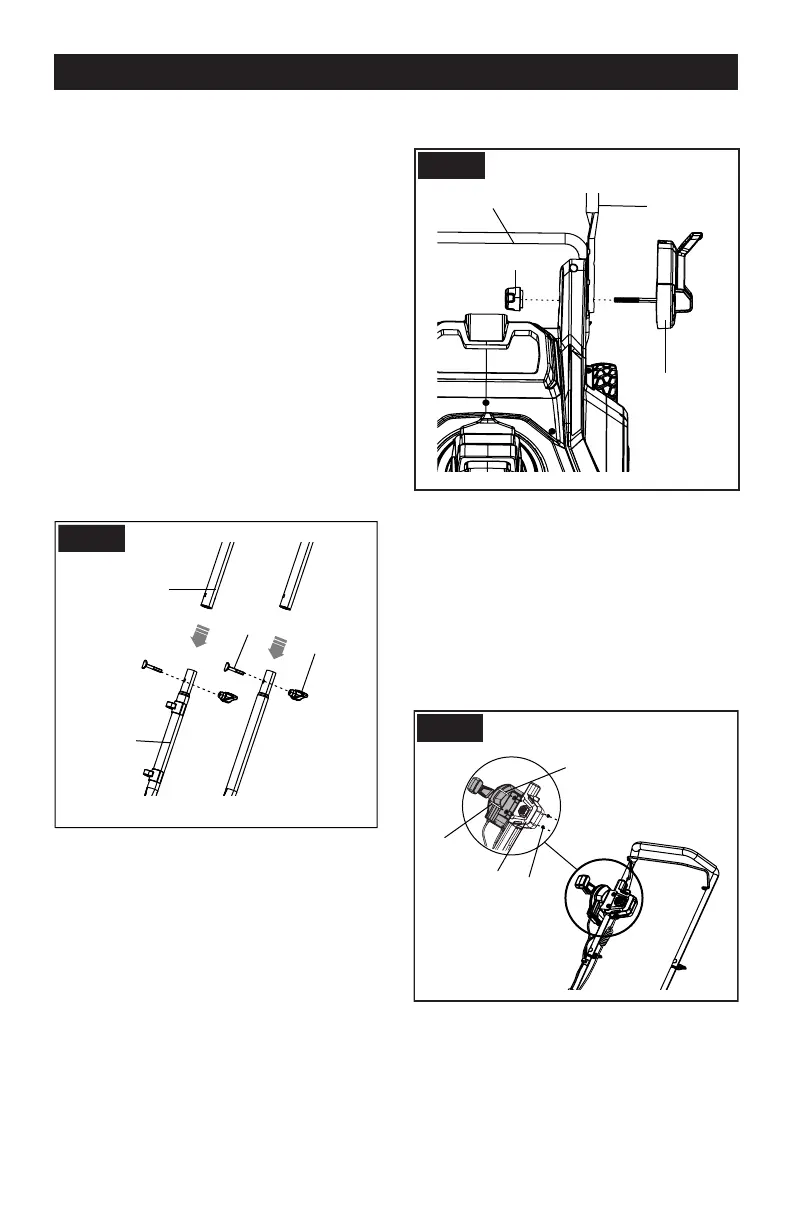

INSTALL THE UPPER HANDLE
Upper
handle
Knob
Bolt
FIG. 1
Middle
handle
1. Align the holes in the middle handle and
the upper handle.
2. Insert the bolt through the middle handle
and upper handle.
3. Tighten the handle knob onto the bolt.
4. Repeat for left/right side.
INSTALL THE MIDDLE HANDLE
FIG. 2
Bolt
Knob
Lower
handle
Middle
handle
1. Align the holes in the middle handle and
the lower handle.
2. Put the bolts through the middle handle
and the lower handle.
3. Tighten the handle knob onto the bolt.
4. Repeat for left/right side.
INSTALL THE CHUTE-ROTATION
BOX
1. Align the holes in the panel of the chute-
rotation box and the switch box.
2. Put the chute-rotation box screws through
the holes.
3. Tighten the chute-rotation box screw nuts
with a wrench (not included).
FIG. 3
Chute-
rotation
box
Switch
box
Screw
Nut
