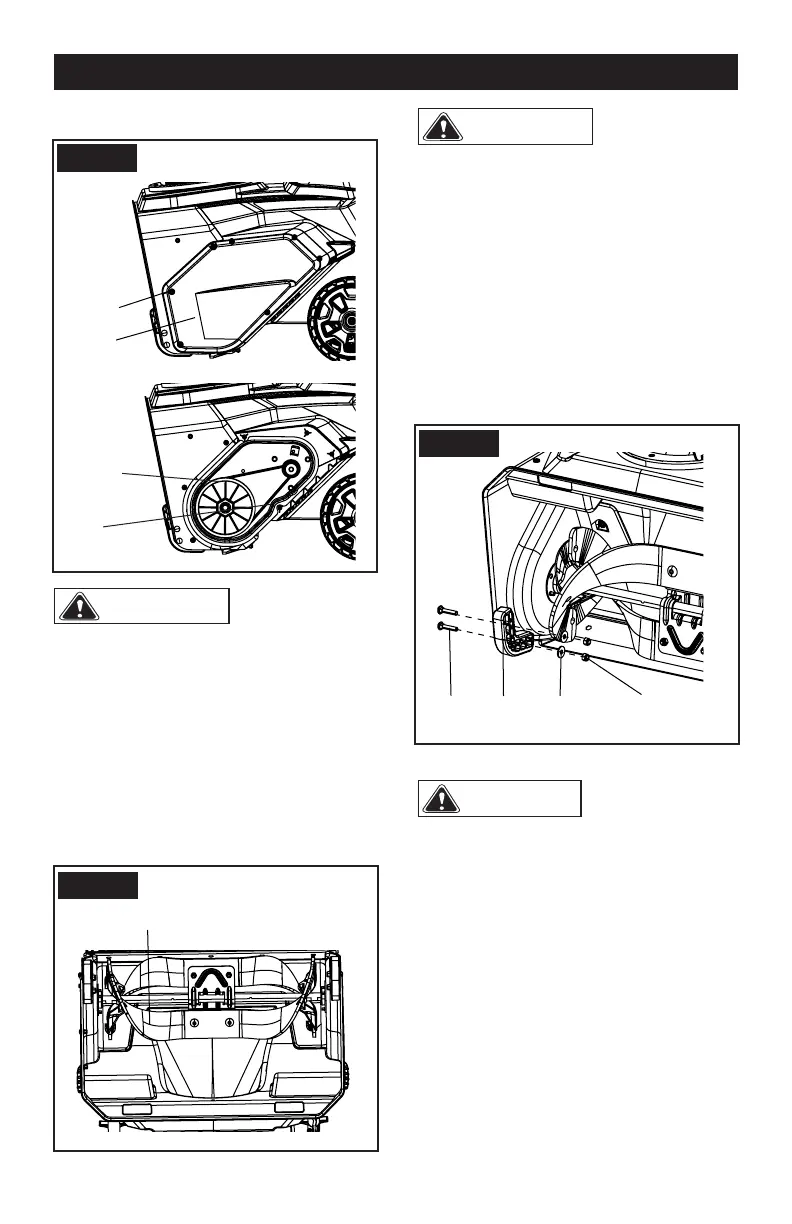

MasterForce 270-3282 - Page 15

Page 14
WARNING
Make sure to
turn off the bail lever and remove the
battery pack(s) before performing any
maintenance task on your snow thrower.
1. Remove the 4 sets of nuts and bolts on
the middle steel plate.
2. Remove the 4 sets of nuts and bolts on
each side.
3. Remove the impellers.
4. Install the new impellers.
5. Tigthen the 8 sets of nuts and bolts that
you removed.
REPLACE THE SKID PLATES
NOTE
The range of
adjustable height for skid plates is
1.5mm, when putting the bolts through
the U-hole on the skid plates.
1. Loosen the 2 sets of bolts , spacers and
nuts that attach the skid plates to the snow
thrower housing.
2. Remove the skid plates.
3. Install the new skid plates.
4. Do the same operation on the other side.
MAINTENANCE
REPLACE THE BELT
WARNING
Make sure to
turn off the bail lever and remove the
battery pack(s) before performing any
maintenance task on your snow thrower.
1. Remove the screws on the side wear pad.
2. Turn the large pulley counterclockwise
while you remove the remaining belt.
3. Turn the new belt onto the pulleys.
4. Install and tighten the screws that you
removed.
REPLACE THE IMPELLER
FIG. 14
Impellers
FIG. 15
Bolt Skid
plate
Spacer Nut
Screw
Side
wear
pad
FIG. 13
Large
pulley
Belt
