BRUSH REPLACEMENT (FIG. 19)
MAINTENANCE
Aa
Aa

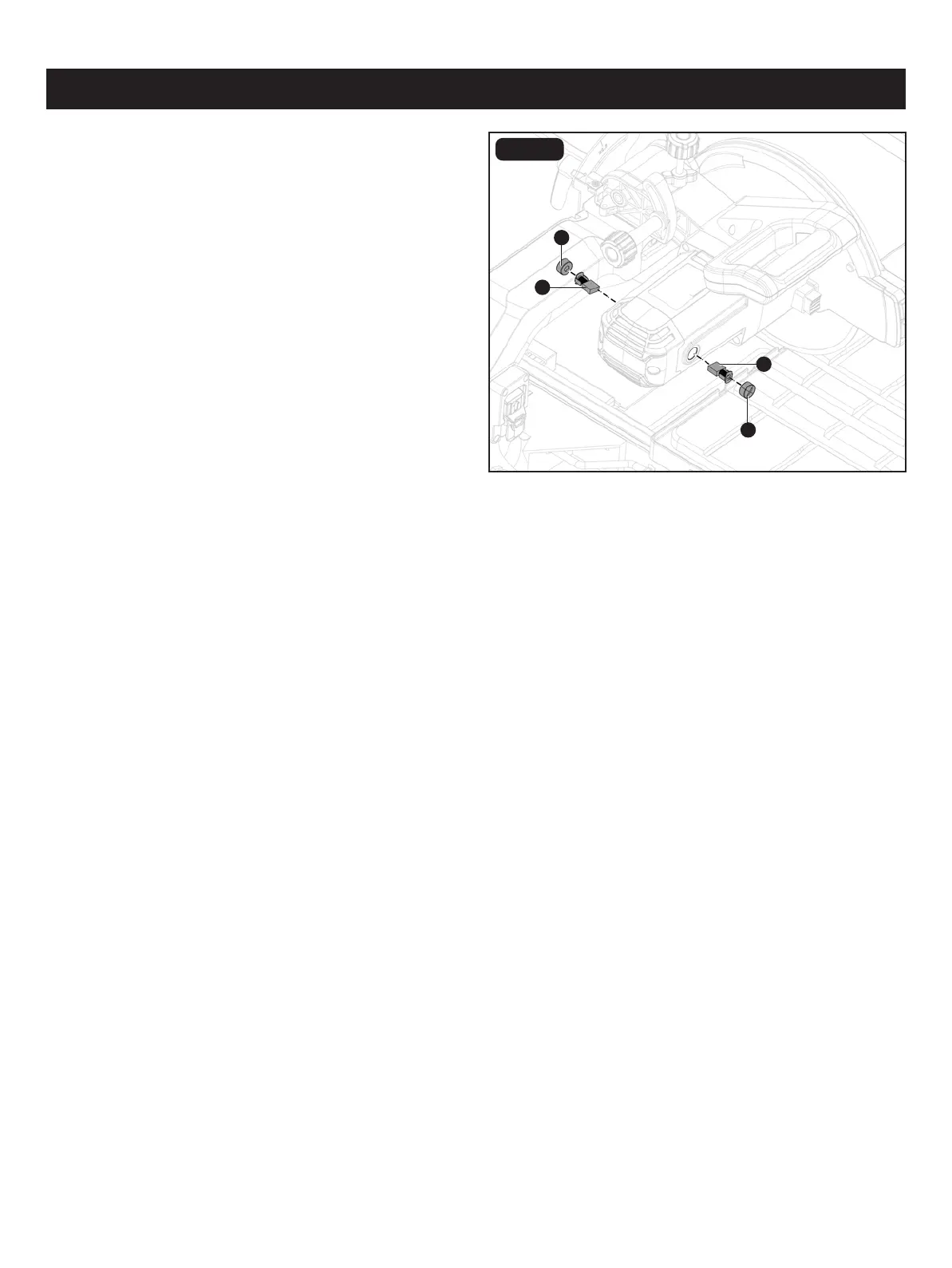

FIG. 19
The tile saw has externally accessible brush assemblies that
should be periodically checked for wear.
Proceed as follows when replacement is required:
• Unplug the tile saw.
• Remove brush cap (zz) with a at head screwdriver (not
included). Brush assembly (Aa) is spring loaded and will
pop out when you remove brush cap (zz).
• Remove brush assembly (Aa).
• Check for wear. Replace both brushes when either has
less than 1/4 in. length of carbon remaining. DO NOT
replace one side without replacing the order.
• Reassemble using new brush assemblies (not included).
Make sure curvature of brush matches curvature of motor
and that brush moves freely in brush tube.
• Make sure brush cap is oriented correctly (straight) and
replace.
• Tighten brush cap securely. Do not overtighten.
zz
zz
