MasterForce MF3N12300 - Securing Unit to Wall Mount; Operating Instructions; Initial Setup and Priming

Page 12
1/8"
Remove wall mount and drill four 1/8" pilot
holes at marked locations.
2
EE
1
1
Q
Install wall mount (Q) on wall with four 2 1/2"
cabinet mounting screws (EE).
x 4
AA BB
1 1/4"
Wall Dog Screw
Qty. 2
2 1/2" Cabinet
Mounting Screw
Qty. 4
2 1/2" Cabinet Mounting Screws
Put spray gun (K) on pressure washer unit (F).
K
F
Place pressure washer unit (F) in place on
wall mount (Q) until secure. Unit will click into
place.
F
Q

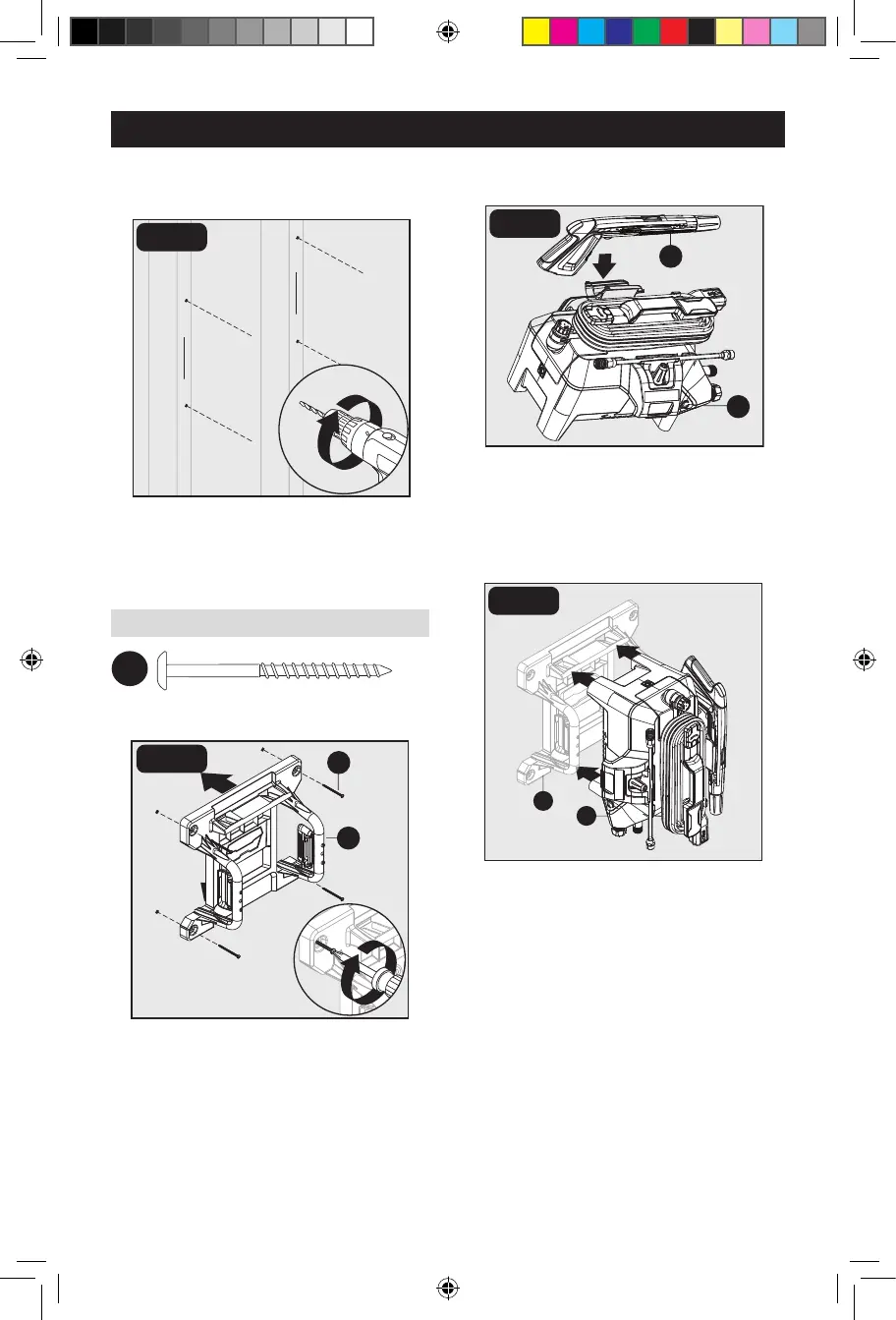

ASSEMBLY INSTRUCTIONS
EE
Hardware Used:
FIG.22
FIG.23
FIG.24
FIG.25
