MasterForce MF3N12300 - Wall Mount Installation

Page 11

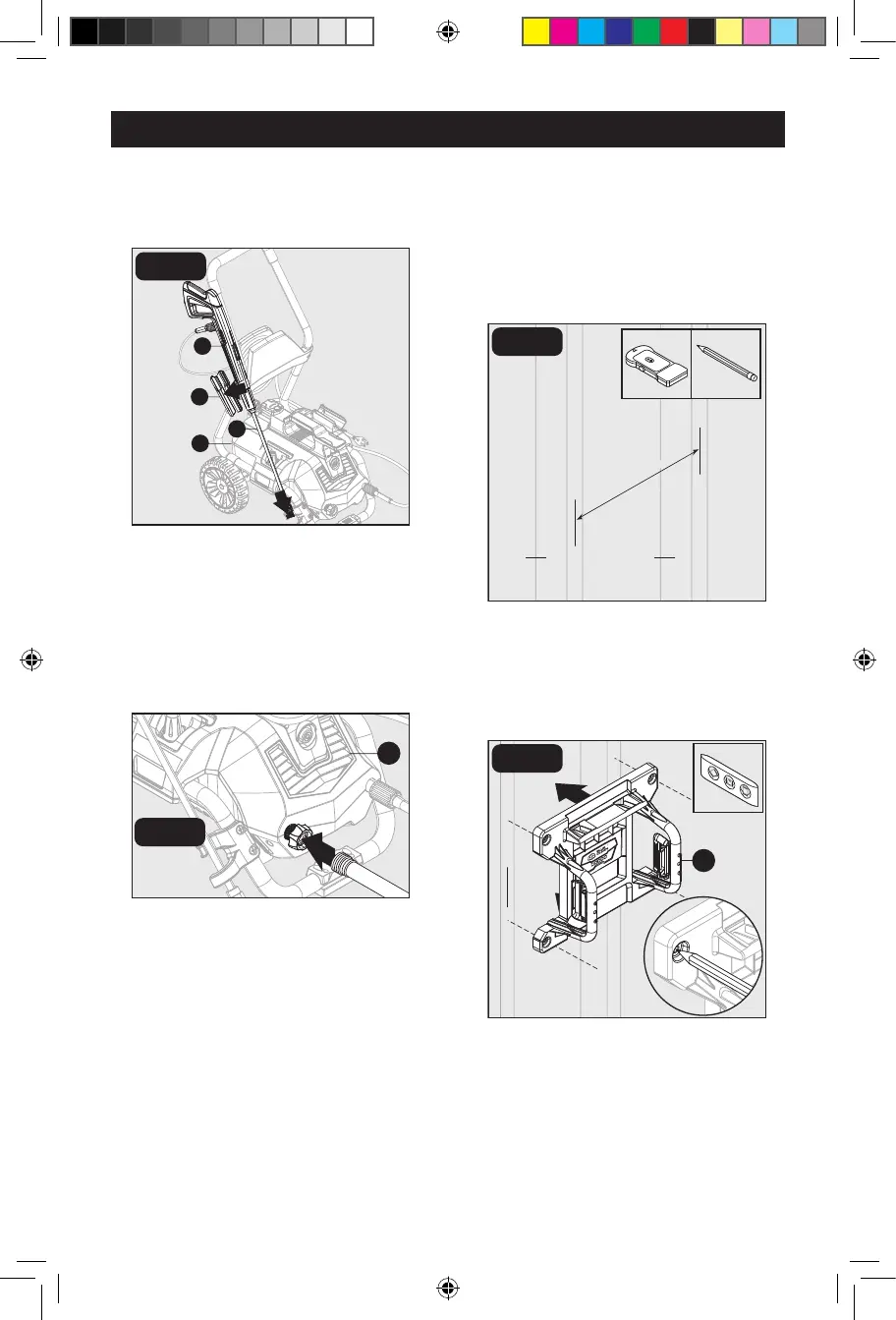

ASSEMBLY INSTRUCTIONS
Insert extension lance (*I) into nozzle holder
(H), and press spray gun (K) with extension
lance (*I) into spray gun holster (M).
F
Attach a garden hose to built in garden hose
adapter. The water is now connected to your
pressure washer.
Note:
Flush out garden hose before
connecting to garden hose adapter
.
FIG.19
2
1
F
M
*I
K
FIG.18
Wall Mount Installation
After choosing an installation location, use a
stud finder to locate and mark wall stud.
Note:
Wall mount screw holes are 16” on
center.
16” on center16” on center
StudStud
Place wall mount (Q) onto wall between
marked studs. After making sure wall mount
is level, mark four screw locations.
1
1
2
Q
2050
MAX PSI
1.4
MAX GPM
FIG.20
FIG.21
You have now completed the assembly
and are ready to begin using your electric
pressure washer. Read and observe all safety
instructions.
