Page 10

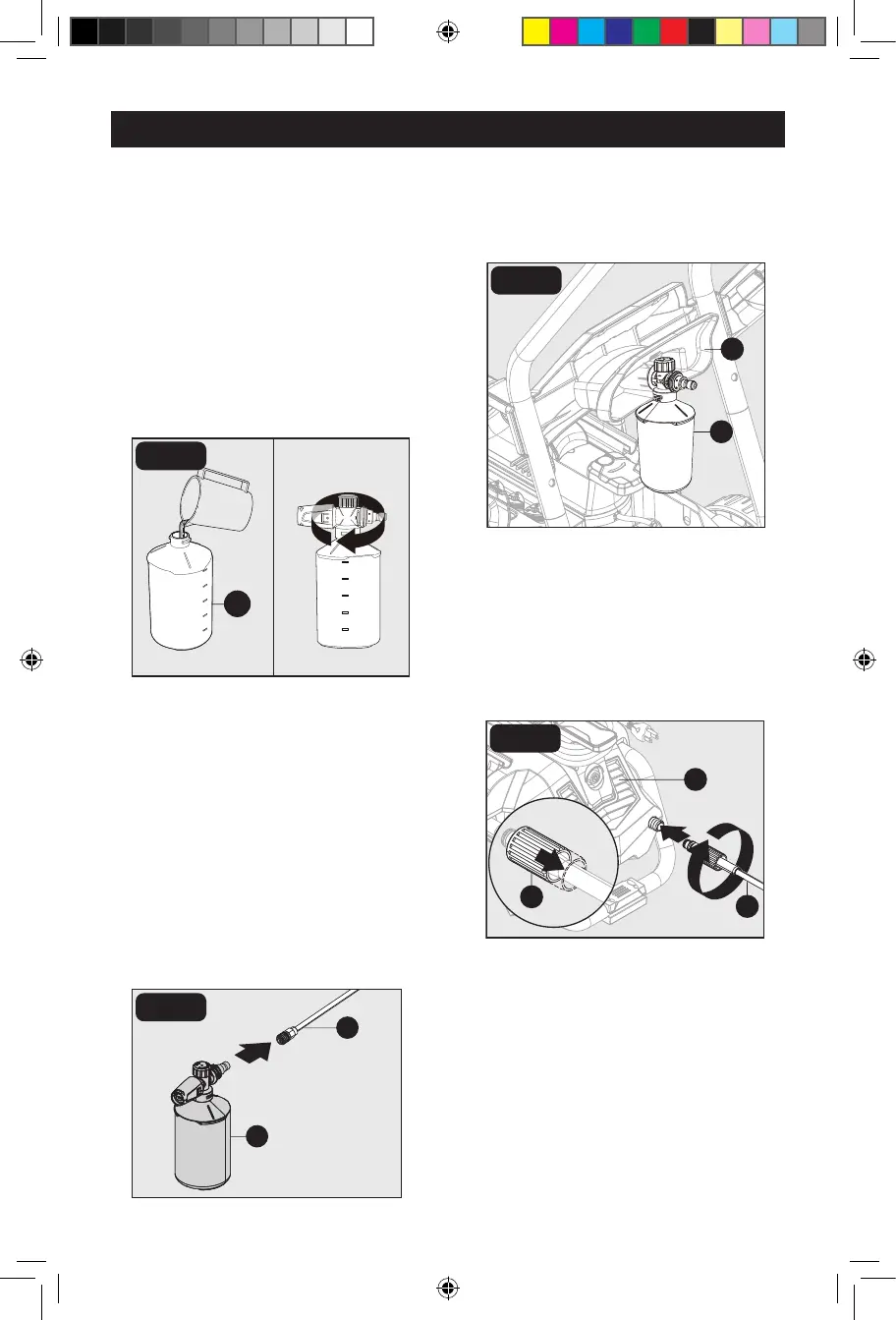

ASSEMBLY INSTRUCTIONS
Foam Cannon Installation
The foam cannon comes with a straw which is
fitted into high pressure top. If you do not see
the straw, look inside the foam cannon and
attach it to the high pressure top. When using
foam cannon, fill it with a properly formulated
detergent or cleaner with a water ratio
according to instructions on the container.
• DO NOT
use thick or gel-like detergents
as they will clog the foam cannon and can
cause damage.
1
750ml
600ml
450ml
300ml
150ml
2
O
FIG.14
Attach Foam Cannon (O) into end of lance (*I)
by pressing cannon into place. It will make a
“click” sound when firmly in place.
Note:
Always lock spray gun when changing
the foam cannon to ensure it does not eject
with force.
• When using the foam cannon, fill it with a
properly formulated detergent or cleaner with
water ratio according to instructions on the
container.
Foam Cannon Storage
Store the foam cannon (O) on the back of the
hose holder (A).
O
A
3
1
2
N
F
N
Pull back on collar at the other end of high
pressure hose (N). Push firmly to connect
hose to pressure washer unit. Twist collar
to secure. Confirm hose is locked into
pressure washer unit by slightly pulling on
hose. The hose is now securely attached.
*I
O
FIG.15
FIG.16
FIG.17
