Page 9

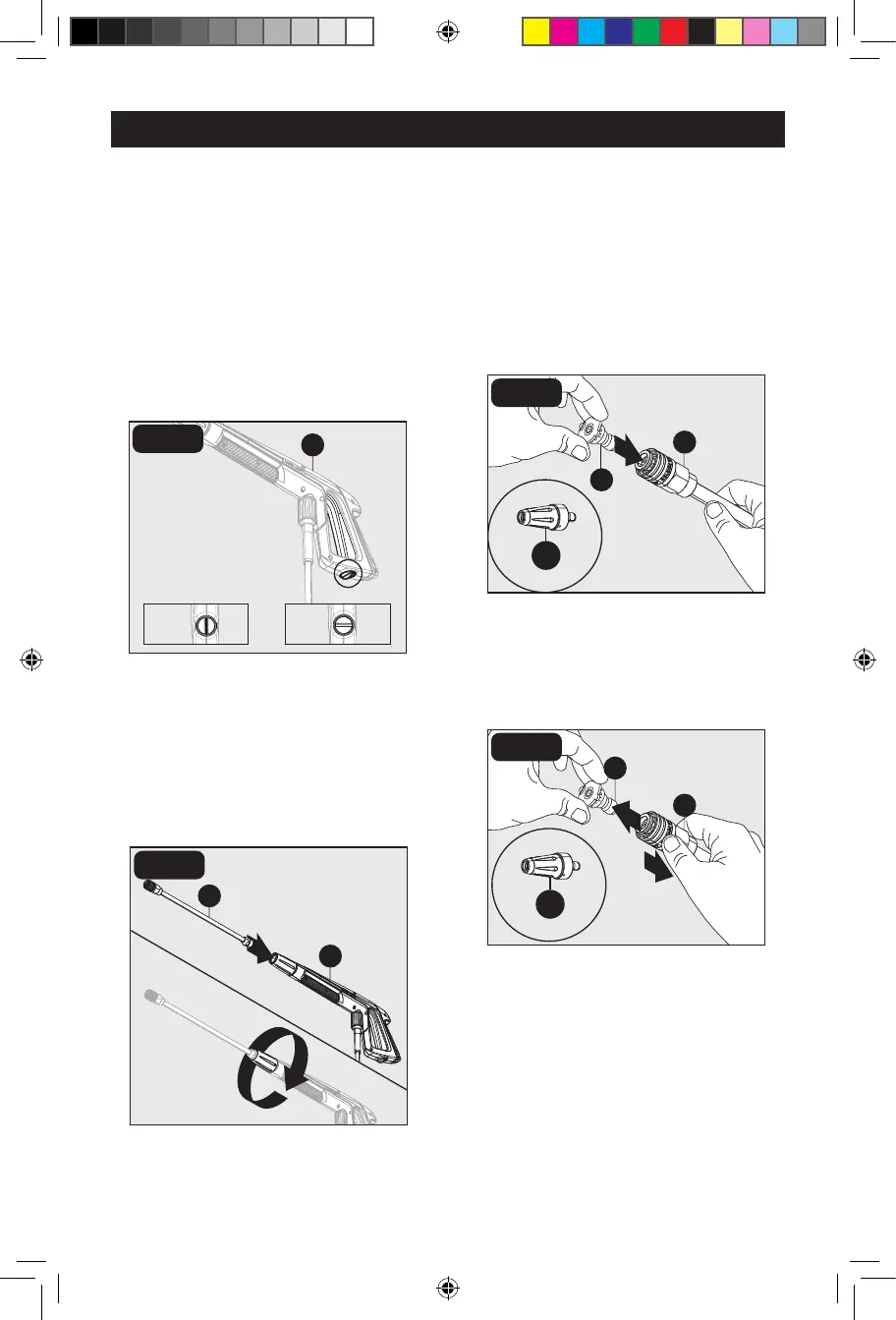

ASSEMBLY INSTRUCTIONS
Locking Spray Gun (before Lance installation)
To lock trigger of spray gun (K), point gun
away from you and turn dial to lock (“3” and “9”
position). Squeeze or pull trigger to make sure
it is locked. Always leave in locked position
when not in use. This ensures the gun is in
“safe” mode until it is ready for use. Turn dial
to unlock (“12” and “6” position) to release
spray gun trigger.
Note:
The trigger lock prevents trigger from
being accidentally engaged.
Extension Lance Installation
While spray gun (K) is in the locked position,
insert lance (*I) into the end of spray gun by
inserting and turning clockwise until fully in
place. To remove, turn counterclockwise.
*I
E
*C
Attach nozzle (E) and rotary nozzle (*C) into
end of lance (*I) by pressing selected nozzle
into place. It will make a “click” sound when
firmly in place.
Note:
Always push safety lock button to lock
trigger when changing lances and nozzles to
ensure that they do not accidentally eject with
force during removal.
To remove nozzle (E) and rotary nozzle (*C),
pull back on collar of lance (*I) and pull out
nozzle.
K
Unlocked
1
Locked
FIG.10
*I
K
1
2
FIG.11
FIG.12
1
2
*I
E
*C
FIG.13
