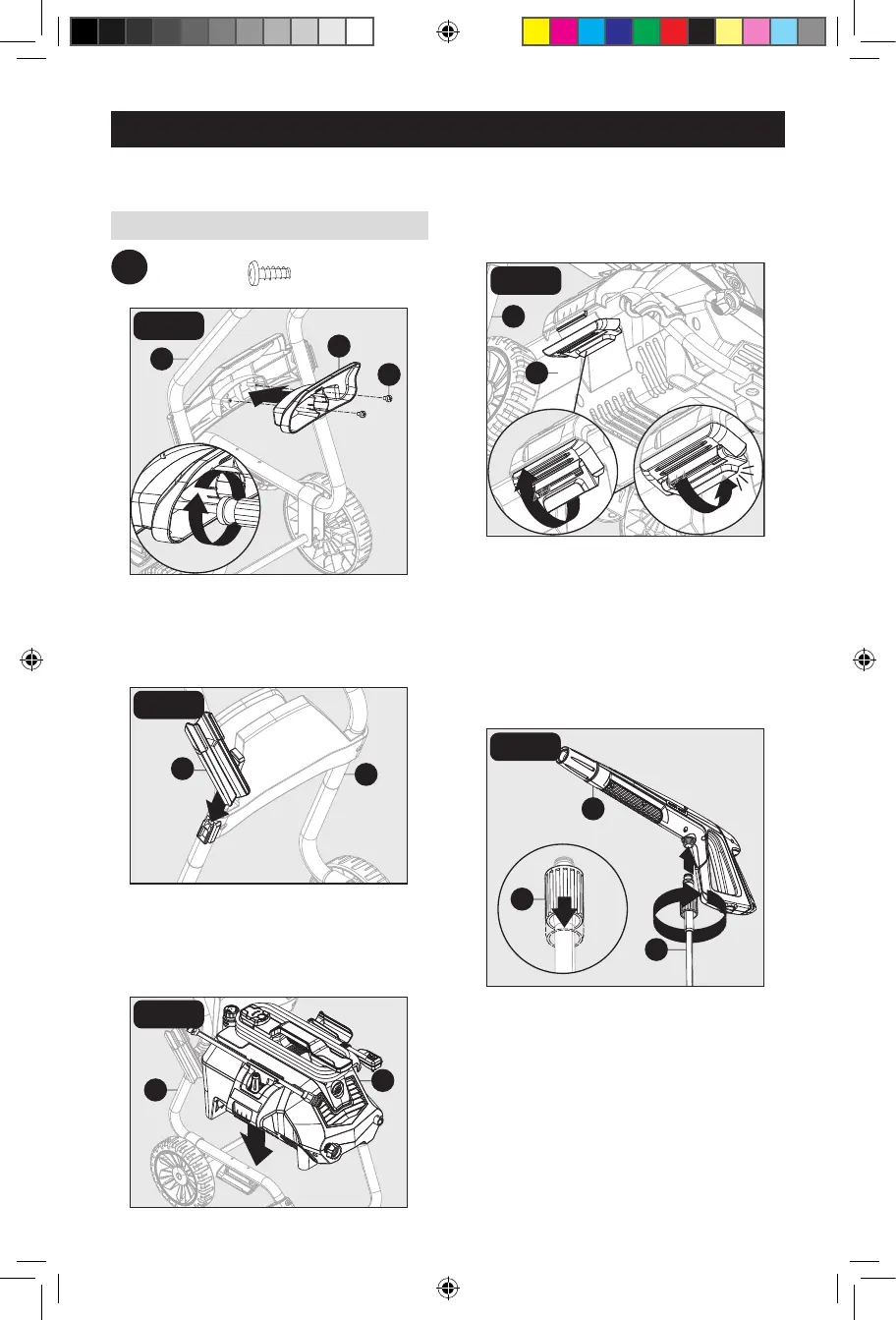

ASSEMBLY INSTRUCTIONS
Install hose holder (A) onto back side of upper
handle (B). Secure with two screws (CC).
Screws
x 2
AA
BB
CC
DD
Screws
Qty. 2
Axle Pins
Qty. 2
Screws
Qty. 2
Cotter Pins
Cant. 2
EE
2 1/2" Cabinet Mounting Screws
Qty. 4
Hardware Used:
Slide spray gun holster (M) into place on the
upper handle (B).
Place pressure washer unit (F) into position
on the lower frame (G).
Pull upward on latches that are located on
sides of lower frame (G). Once upper latch is
flush with the lower lip, push down until lower
latch clicks into place.
Pull back on collar at one end of high
pressure hose (N).Push firmly to connect
hose to spray gun (K). Twist collar to secure.
Confirm hose is locked into spray gun by
slightly pulling on them. The hose is now
securely attached to spray gun.
CC
1
2
A
CC
B
FIG.5
1
2
F
G
FIG.8
B
M
FIG.6
F
G
FIG.7
3
2
K
N
1
N
FIG.9
