MasterTop 15433301 - Install Complete Bow Assembly; Install Rear Bow Legs

5

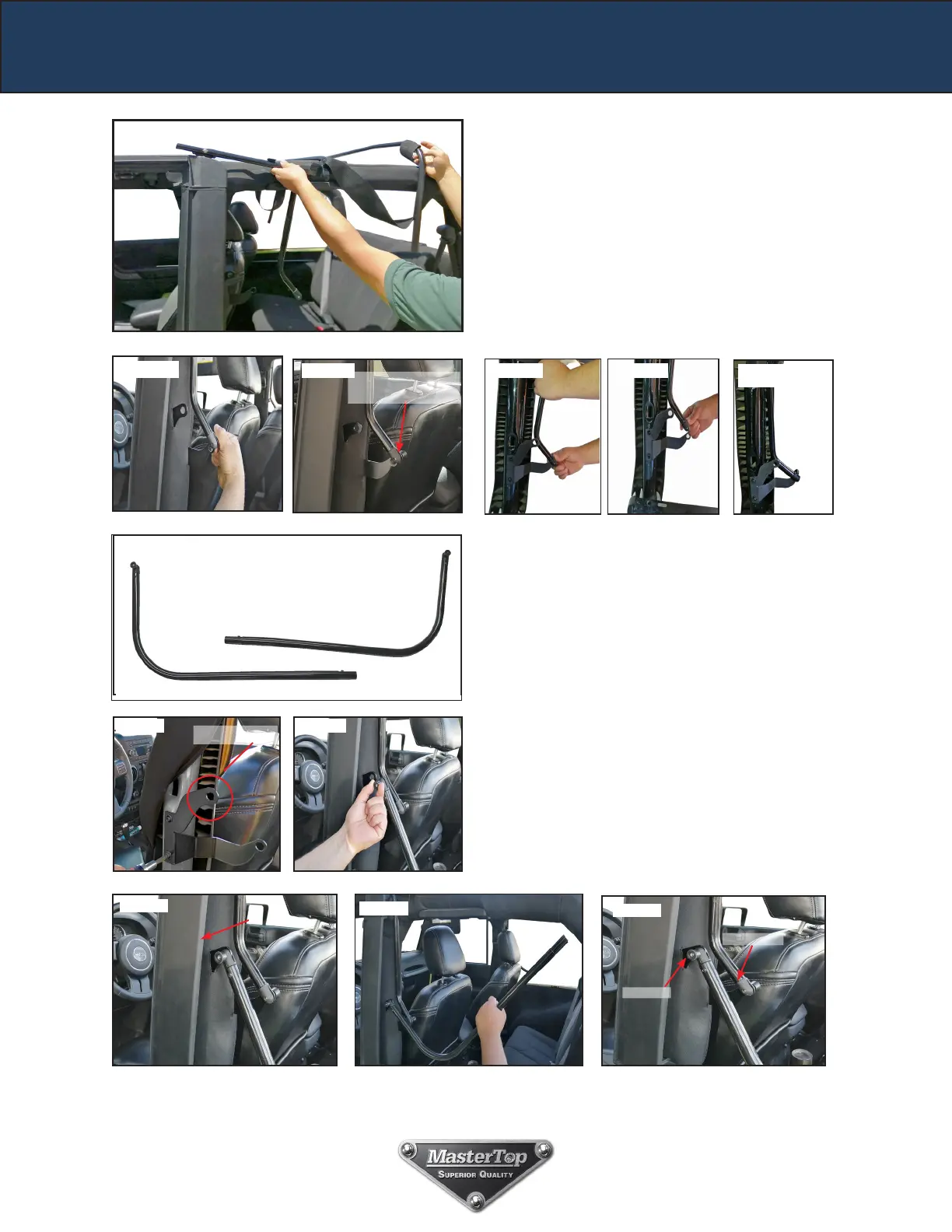

Step 5: Install Complete Bow assembly to the
Vehicle
Locate the complete bow assembly from step 4.
With a friend, carefully place the bow assembly
over the roll bar and line up the assembly to
the lower bow mount bracket (Fig’s 32 & 33)
w i t h t h e q u i c k r e l e a s e k n o b f a c i n g i n w a r d s .
Line up the Quick release knuckle with the lower
bow mount bracket attachment and attach each side
of the center bow assembly to the bracket (Figs 34,
3 5 & 3 6 ) . R e p e a t o n o t h e r s i d e o f v e h i c l e .
FIG 32
FIG 33
FIG 34
Step 6: Install Rear Bow Legs to Bow Mounts
and Rear Bow
Locate the two rear bow legs as called out in
FIG 42. These bow legs will be installed on the
top bow mount located on the roll bar (FIG 43).
Place the rear bow leg with the quick Release
knob facing out and the loop portion facing down
(FIG 44) while pulling the quick release knob
out, connect the rear bow leg to the bow mount
bracket (FIG’s 45 & 46). Repeat on other side of
vehicle.
At this point both the center bow and the rear
bow mount legs should be installed on the bow
mount bracket on the roll bar as shown in FIG
47. The Center bow should be on the lower
bracket and the rear bow should be on the up-
per bracket mount.
FIG 42
FIG 43 FIG 44
FIG 45
FIG 47
FIG 46
Quick release knob is
facing inwards
Upper Bow Mount
Rear Bow
Rear Bow
Center Bow
Quick Release
Knob is Facing
Inwards
FIG 34 FIG 35
FIG 36
