8.3 CHARACTERISTICS
F

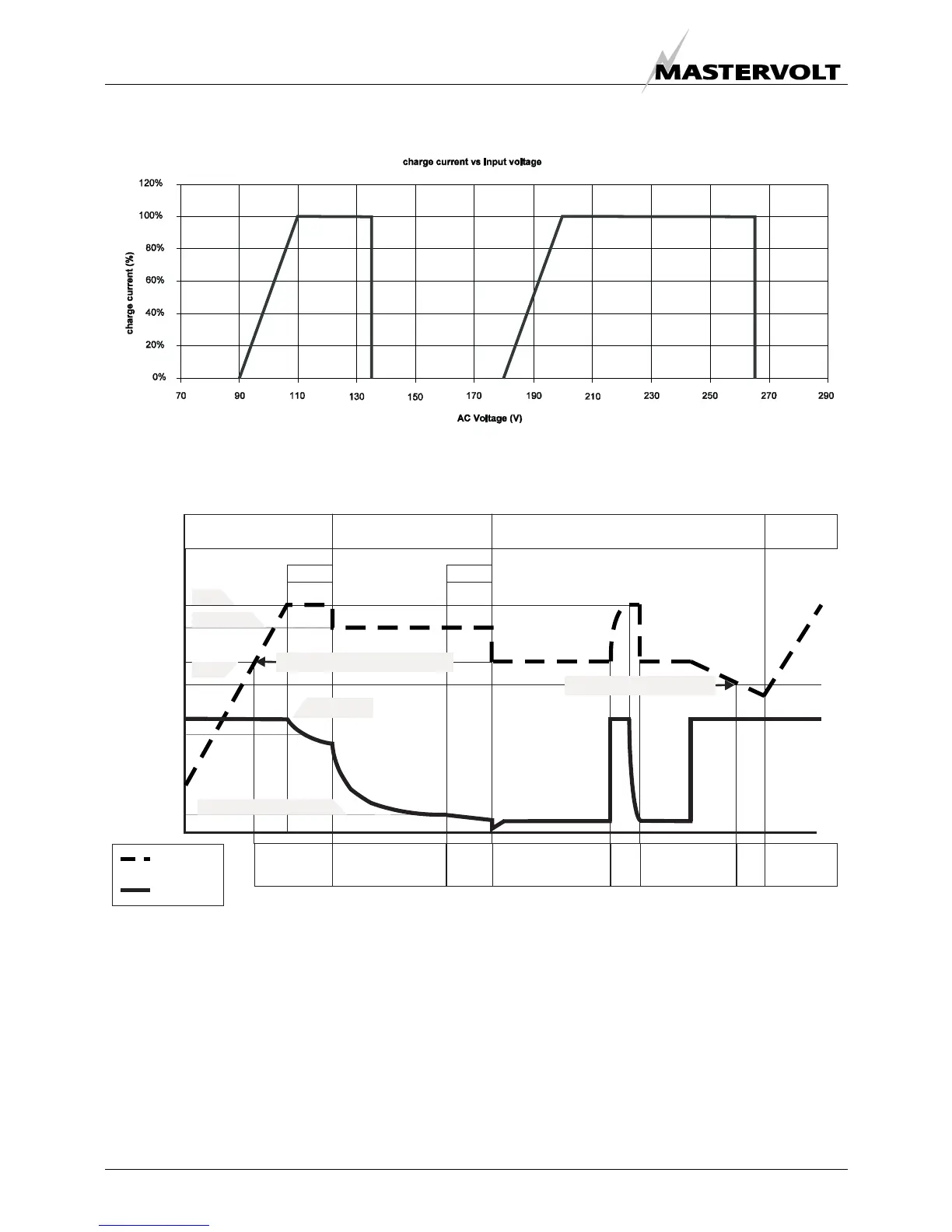

igure 9: Charge current versus input voltage
Figure 10: Charge characteristic of the three-step Plus charging method (at 25°C / 77°F)
FLOATABSORPTION
13.25VDC
2 min 15 min
BULK
`min. abs timer:
`min. bulk timer:
BULK
< Imax
Imax 100%
Start max bulk timer: 13.25VDC
14.40VDC
14.25VDC
Bulk
Absorption
Float
Return to bulk: 12.80VDC
Return amps = 6% Imax
`max. absorption
timer: 4 hr
`
`max. bulk
timer: 8 hr
30
sec
85
min
repeated
every 336 hr
`return to
bulk timer
12.80VDC
Imax
=
= current
voltage
