ChargeMaster Plus 12/75-3, 12/100-3, 24/40-3, 24/60-3 –
User and Installation Manual
11

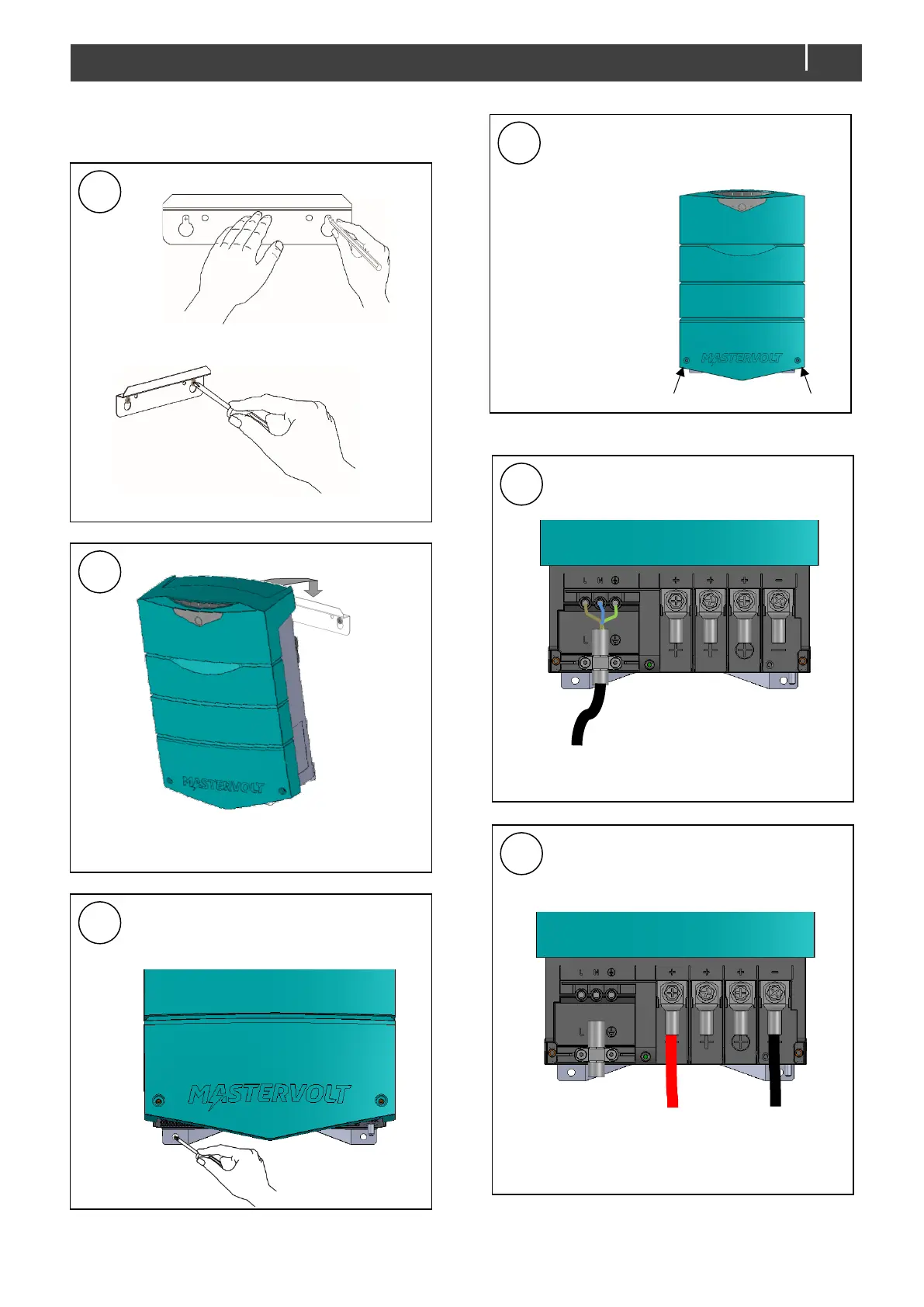

3.8 Installation step-by-step
1
2
3
Fix the enclosure to the wall by fastening two
screws at the lower side of the enclosure as
well.
4
Open the connection compartment by
loosening the two screws.
5
Connect the wiring to the screw terminals.
Fasten the cable with the cable clip.
6
Fit crimp-on ring terminals to the DC cables.
Connect the DC cabling of battery bank 1,
positive to +, negative to – .
If needed repeat steps for output 2 and 3.
